BrakeMaintenance
CheckingtheBrake-Fluid
Level
ServiceInterval:Beforeeachuseordaily—Check
thebrake-uidlevel.(Checkthe
levelbeforetheengineisrst
startedanddailythereafter.)
Every1,000hours/Every2years(whichever
comesrst)—Changethebrakeuid.
Brake-uidtype:DOT3brakeuid
Note:Thebrake-uidreservoirshipsfromthefactory
lledwithDOT3brakeuid.
1.Parkthemachineonalevelsurface.
2.Engagetheparkingbrake.
3.Shutofftheengineandremovethekey.
4.Removethehood.
5.Checktheuidlevelinthebrake-uidreservoir
(Figure72andFigure73).
Note:TheuidlevelshouldbeuptotheFull
lineonthereservoir.

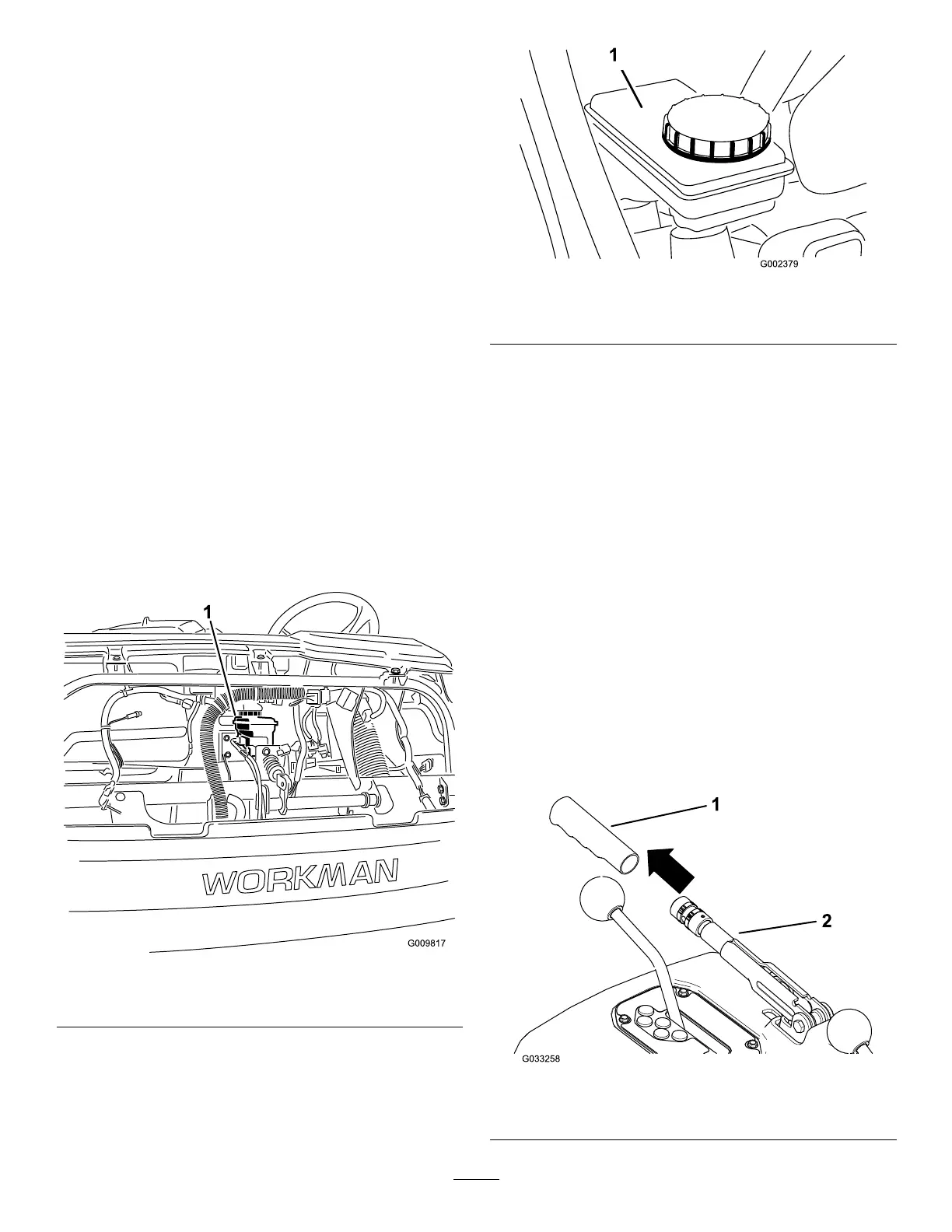

g009817
Figure72
1.Brake-uidreservoir
g002379
Figure73
1.Brake-uidreservoir
6.Iftheuidlevelislow,performthefollowing:
A.Cleantheareaaroundthecapforthe
reservoir(Figure73).
B.Removethereservoircap(Figure73).
C.AddthespeciedbrakeuidtotheFullline
onthereservoir(Figure73).
Important:Donotoverllthebrake-uid
reservoir.
D.Installthecap(Figure73).
7.Installthehood.
AdjustingtheParking
Brake
ServiceInterval:Aftertherst10hours
Every200hours
1.Removetherubbergripfromtheparking-brake
lever(Figure74).
g033258
Figure74
1.Grip
2.Parking-brakelever
