2.Engagetheparkingbrake.
3.Shutofftheengineandremovethekey.

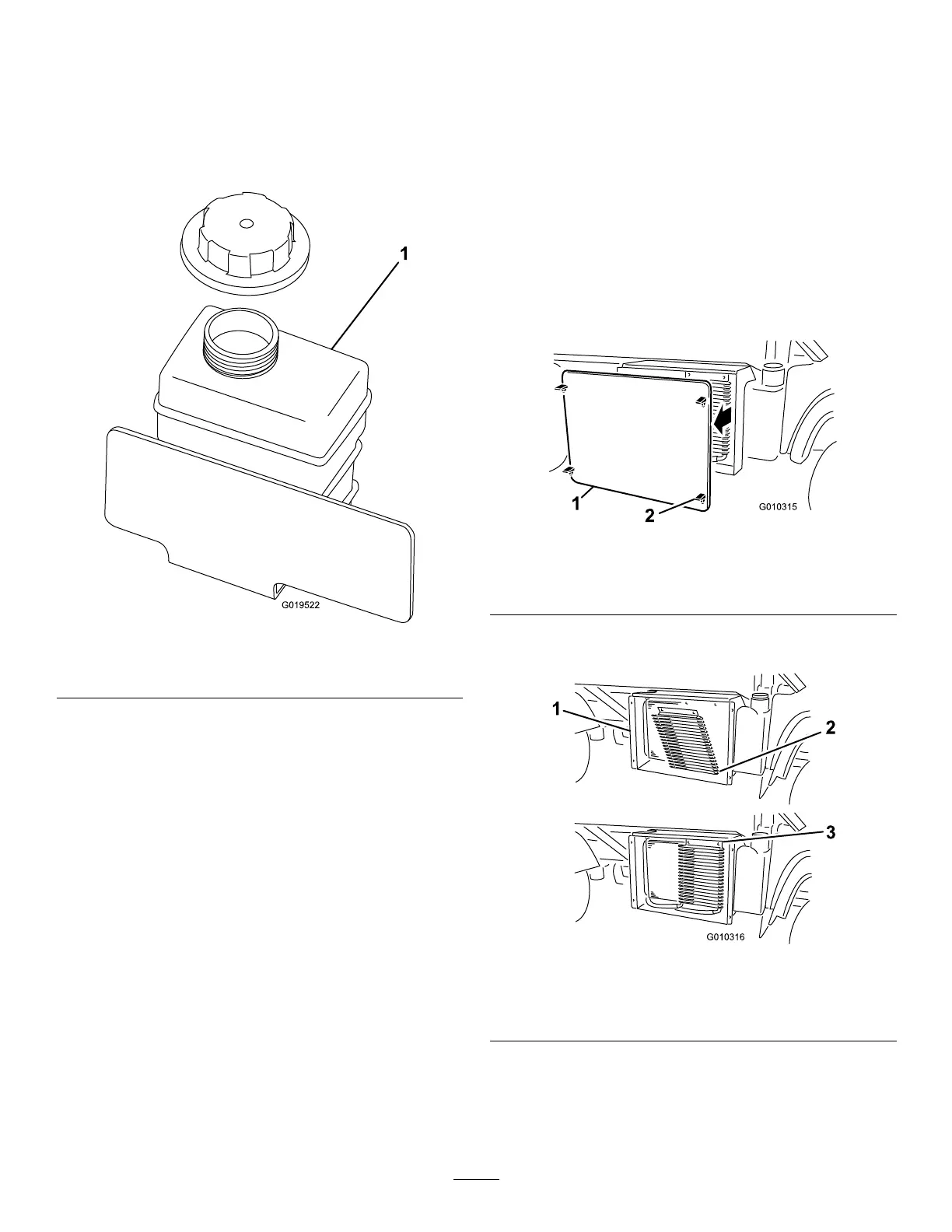

4.Checkthecoolantlevelatthereservetank
(Figure67).
Note:Thecoolantshouldbeuptothebottom
ofthellerneck.
g019522
Figure67
1.Coolant-reservetank
5.Ifcoolantislow,removethereserve-tankcap
andadda50/50mixtureofwaterandpermanent
ethylene-glycolantifreeze.
Note:Donotoverll.
6.Installthereserve-tankcap.
RemovingDebrisfromthe
CoolingSystem
ServiceInterval:Beforeeachuseordaily—Remove
debrisfromtheengineareaand
radiator.(Cleanitmorefrequentlyin
dirtyconditions.)
1.Parkthemachineonalevelsurface.
2.Engagetheparkingbrake.
3.Shutofftheengineandremovethekey.
4.Cleantheengineareathoroughlyofalldebris.
5.Unlatchandremovetheradiatorscreenfromthe
frontoftheradiator(Figure68).
g010315
Figure68
1.Radiatorscreen
2.Latch
6.Ifequipped,rotatethelatchesandpivottheoil
coolerawayfromtheradiator(Figure69).
g010316
Figure69
1.Radiatorhousing3.Latches
2.Oilcooler
7.Cleantheradiator,oilcooler,andscreenwith
compressedair.
Note:Blowdebrisawayfromtheradiator.
8.Installthecoolerandscreentotheradiator.
