Fuel T ank Installation (continued)

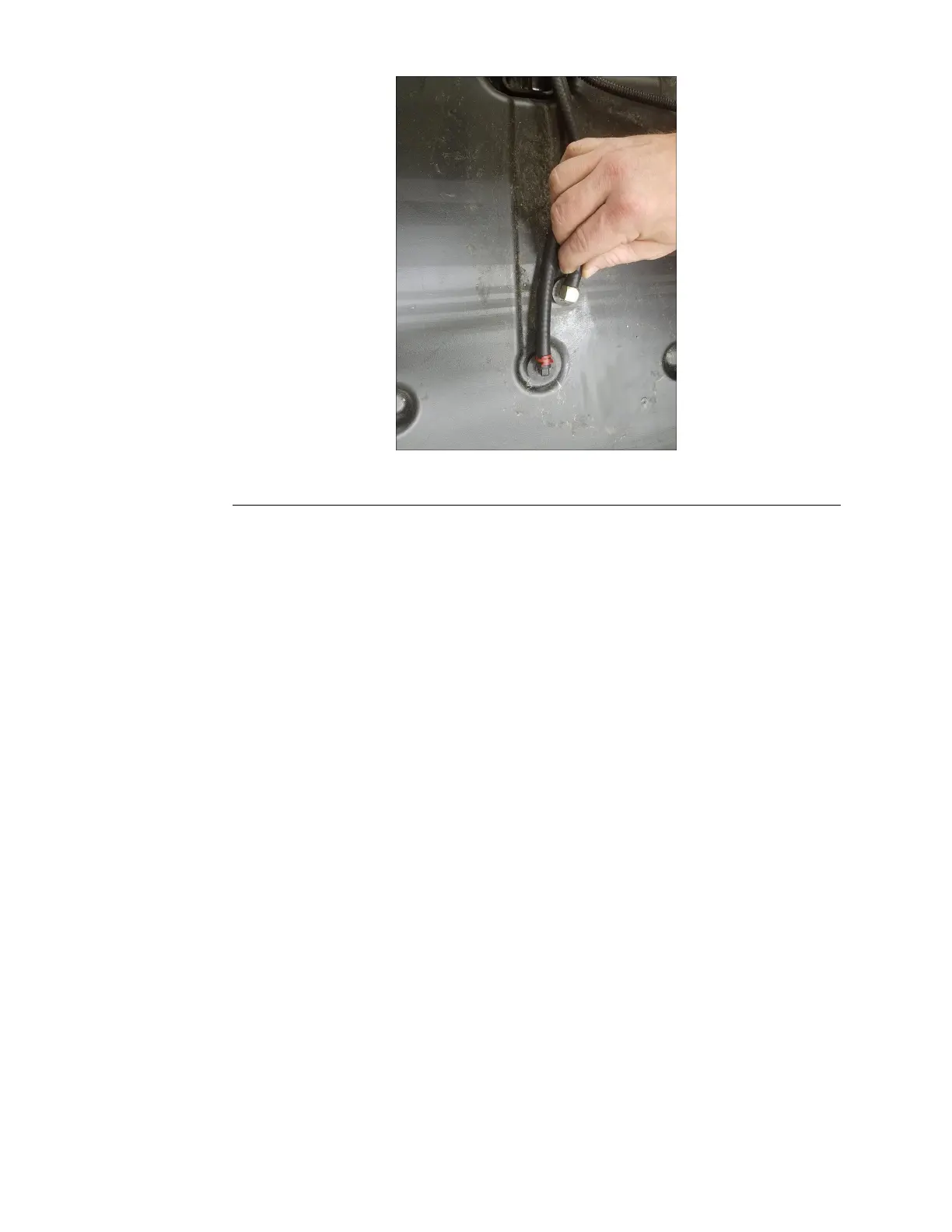

g420401
Figure 69
8. Install the seat. Refer to Seat Installation ( page 6– 16 ) .
9. Connect the battery by installing the positive cable rst, then the negative
cable to the battery .
ROPS Assembly Replacement
ROPS Removal
1. Park the machine on a level surface and disengage the PT O. Stop the
engine, wait for all moving parts to stop and remove the key . Engage the
parking brake.
2. Disconnect the battery by removing the negative cable rst, then the positive
cable from the battery .
3. Using a 1/2 inch socket, remove the 2 (5/16 inch) nuts and carriage bolts
securing the rear of the seat to the chassis.
4. Lift the seat forward and disconnect the seat pressure switch from the wire
harness.
5. Remove the 2 hair pins and ROPS fold pins. Lower the upper ROPS to
the full-down position.
Chassis: Service and Repairs Page 6–12 2000 Series Z MASTER®Service Manual
3460-328 Rev A
