6F8C1048 89
7.2ADMAP-5M Cable Connection
7
7.2 ADMAP-5M Cable Connection
Connect ADMAP cables (coaxial cables) to the AN712 module, that is, to its type F
coaxial connectors.
（
1
）
Insert the coaxial cables (3C-2V) to the type F coaxial connectors (CN-A, CN-B), and
turn them clockwise to tighten.
（
2
）
Tighten them securely with a torque wrench 2.9 N-m (0 kgf-cm).
（
3
）
Clamp the cables to keep them free of stress.

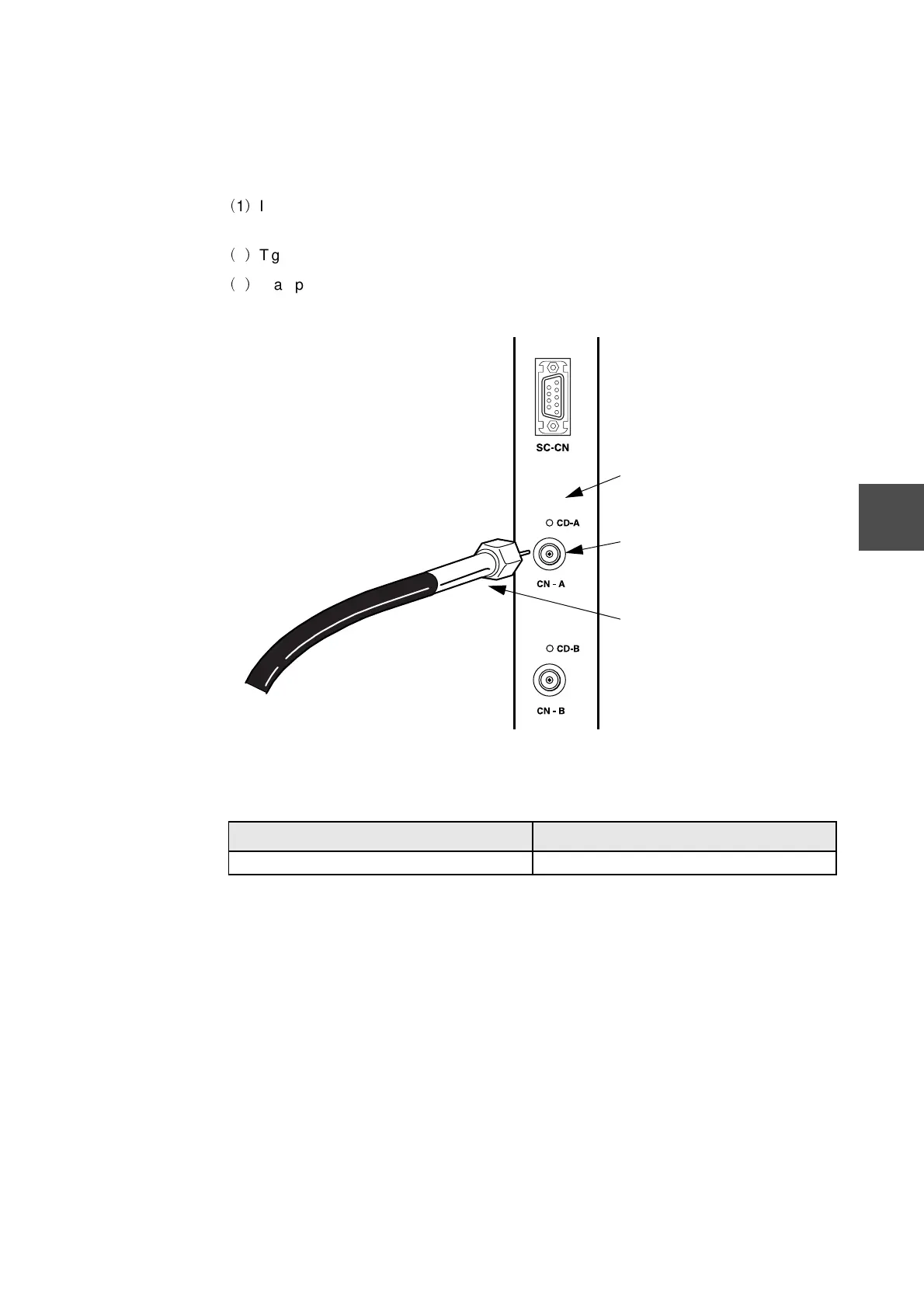

Figure 7-2 Coaxial Cable Connection
Table 7-1 Permissible Cable Bending Radius
Cable Permissible bending radius (mm)
Coaxial cable (3C-2V) 40
AN712 module
Type F coaxial
cable connector
Coaxial cable
To Next Page
