5.3Common Memory Information
5
5.3.4 Station status

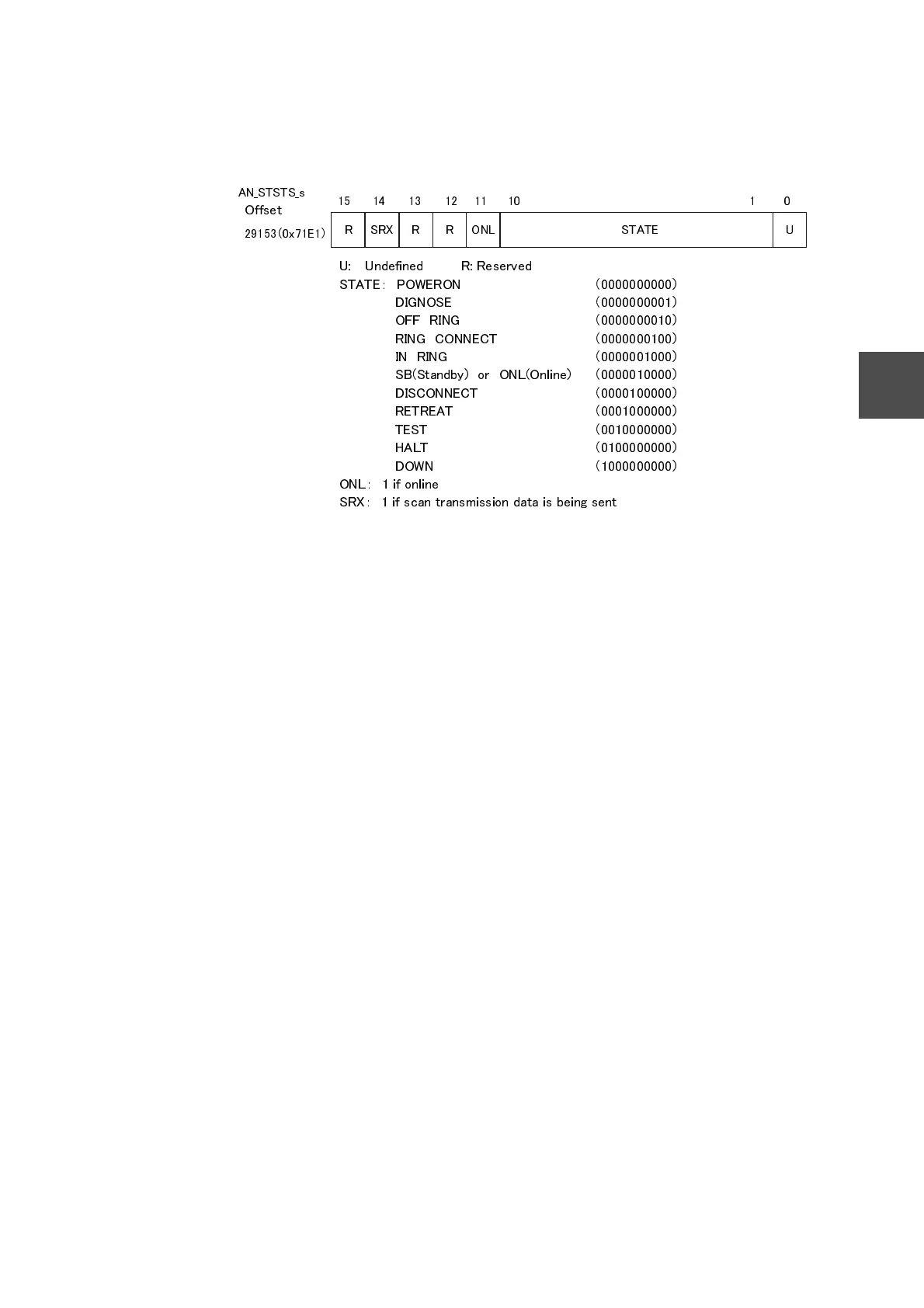

Station status shows the operating status of the AN712 module. (Figure 5-6)
Figure 5-6 Station Status
STATE indicates the operating state of the module. POWERON indicates the state in
which the module is started. DIAGNOSE indicates the state of the module initially
diagnosed. OFF RING, RINGCONNECT, IN-RING, SB or ONL, DISCONNECT,
RETREAT indicate the state of ADMAP-5M transmission control. SB or ONL applies to
the state where transmission control is normal and where both message transmission
and scan transmission are normal. TEST indicates that the hardware test program is
under way. HALT indicates no operation due to switch setting errors. DOWN indicates a
module down due to something irrecoverable.
ONL indicates online operation, in which 1 is set.
SRX indicate scan transmission, in which 1 is set.
U: Undefined R: Reserved
STATE： POWERON （0000000000）
DIGNOSE （0000000001）
OFF RING （0000000010）
RING CONNECT （0000000100）
IN RING （0000001000）
SB(Standby) or ONL(Online) （0000010000）
DISCONNECT （0000100000）
RETREAT （0001000000）
TEST （0010000000）
HALT （0100000000）
DOWN （1000000000）
ONL： 1 if online
SRX： 1 if scan transmission data is being sent
U R SRX
R R ONL
15 14
13
12
11
10
0
STATE
1
29153（0x71E1）
Offset
AN_STSTS_s
