1.BEFORE USING EQUIPMENT
Placing Paper 13
1 BEFORE USING EQUIPMENT
8
Push the drawer straight into this equipment carefully until it comes to a stop.
Be careful not to let your fingers be caught when pushing the drawer into this equipment.
This could injure you.
4

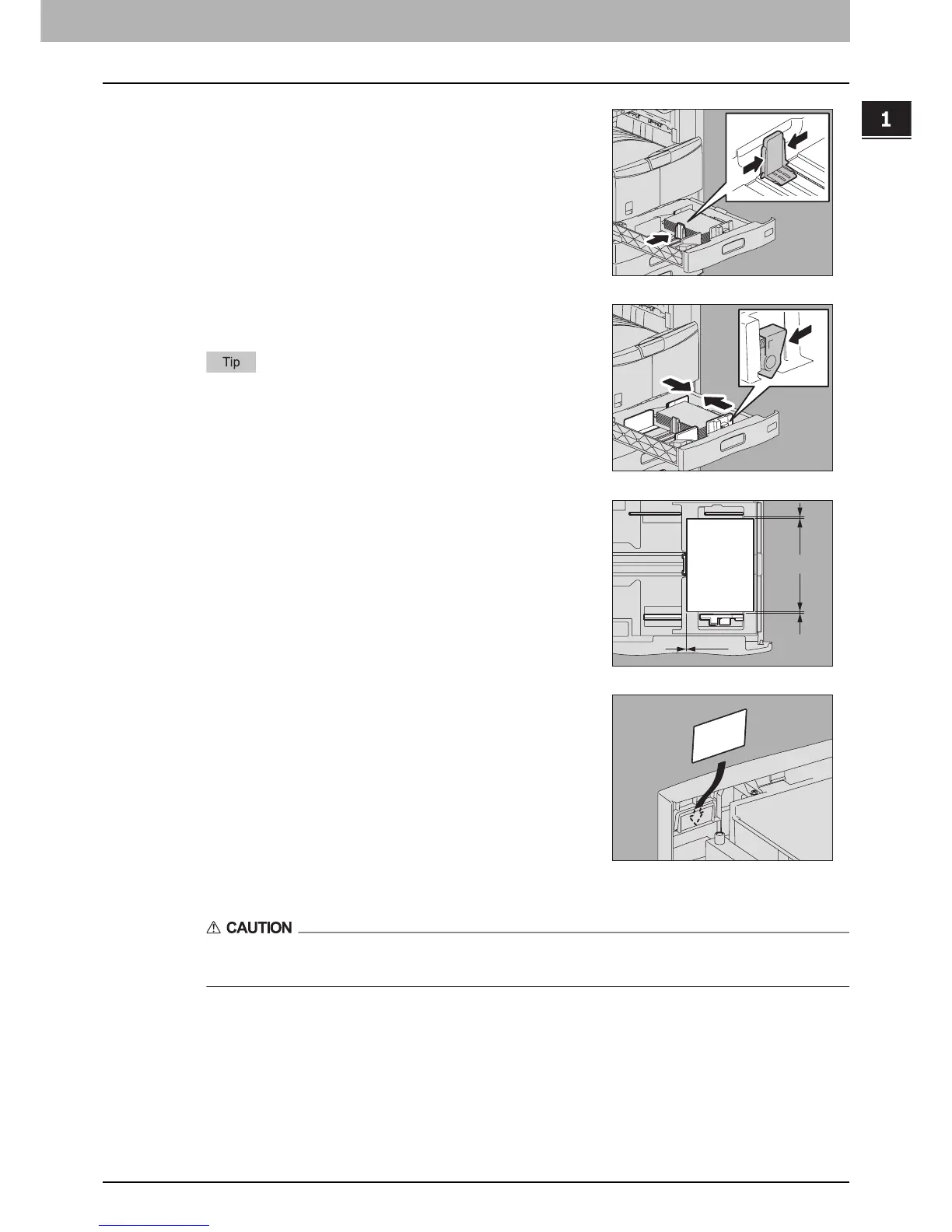

Move the end guide to the trailing edge of the paper
while pushing its lower part in the direction of the
arrows.
5
While holding the green lever of the front side guide,
adjust the side guides to the paper size.
Adjust the side guides with both hands.
6
Confirm that there is no extra gap between the paper
and the side or end guides.
If the gap between the paper and the side or end guides is too big, this
would result in paper misfeeding.
Gap between the paper and the side guides (“A” in the figure on
the right): Do not make a gap of more than 0.5 mm (0.02") on one
side or 1.0 mm (0.04") on both sides. However, if a paper jam
occurs in the case of thick paper, create a suitable gap.
Gap between the paper and the end guide (“B” in the figure on the
right): Do not make a gap of more than 0.5 mm (0.02").
7
Change the paper size indicator if required.
A
B
To Next Page
