4 Replacement Procedures 4.4 HDD
5. (When an HDD-2 is installed) Remove the following screw securing the HDD-2 slot
cover.
• M2.5×6B FLAT HEAD screw ×1
6. Insert your finger into the slit and remove the HDD-2 cover.
7. Remove the HDD-2 assembly from the connector on the HDD-2 cable.
HDD-2 assembly
HDD-2 cover
M2.5x6B FLAT HEAD
Slit
HDD-2 cable

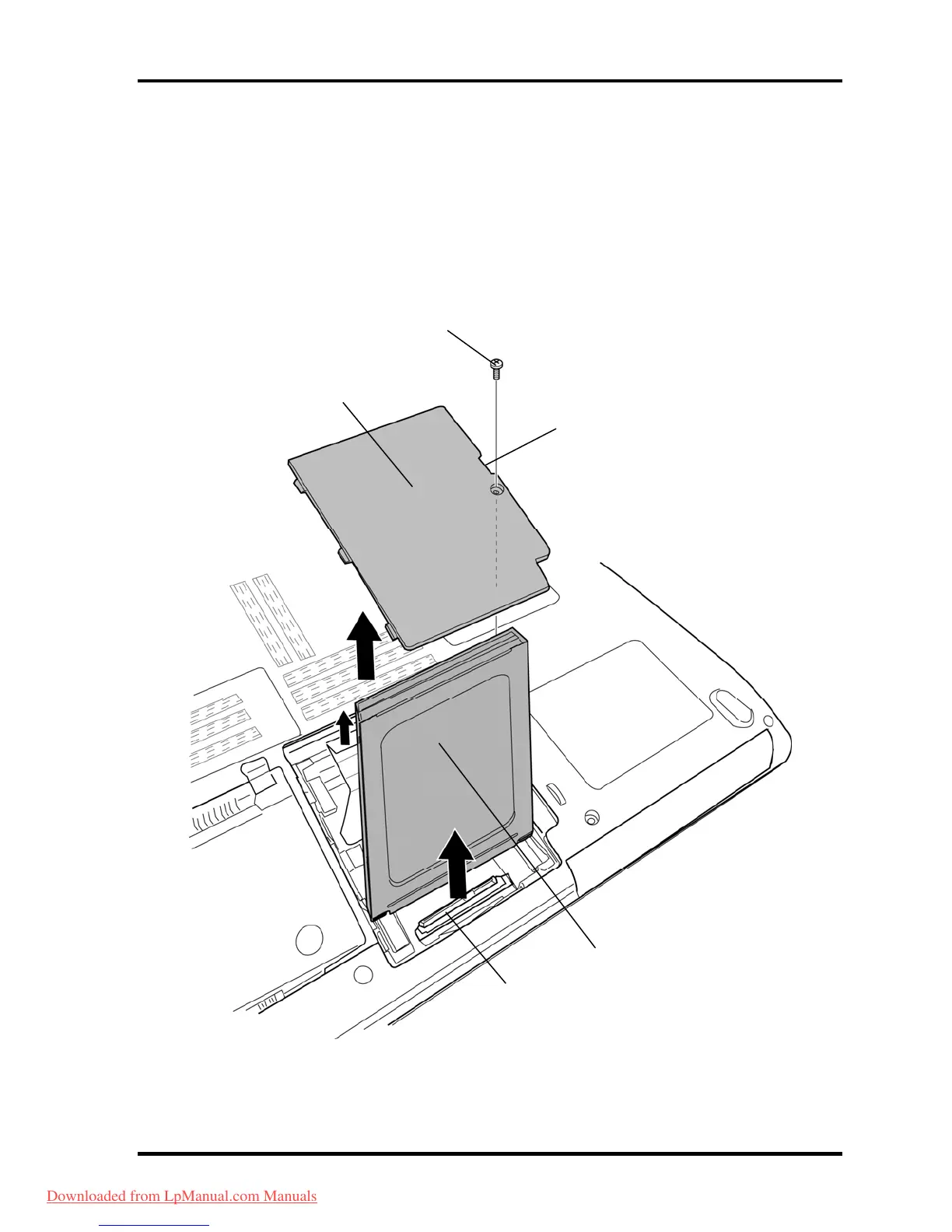

Figure 4-6 Removing the HDD-2 assembly
4-16 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
