4.4 HDD 4 Replacement Procedures
8. Remove the following screws and separate the HDD holder-1 S and HDD -1.
• M3.0×4C FLAT HEAD screw ×4
M3.0x4C FLAT HEAD
M3.0x4C FLAT HEAD
HDD holder-1
HDD-1

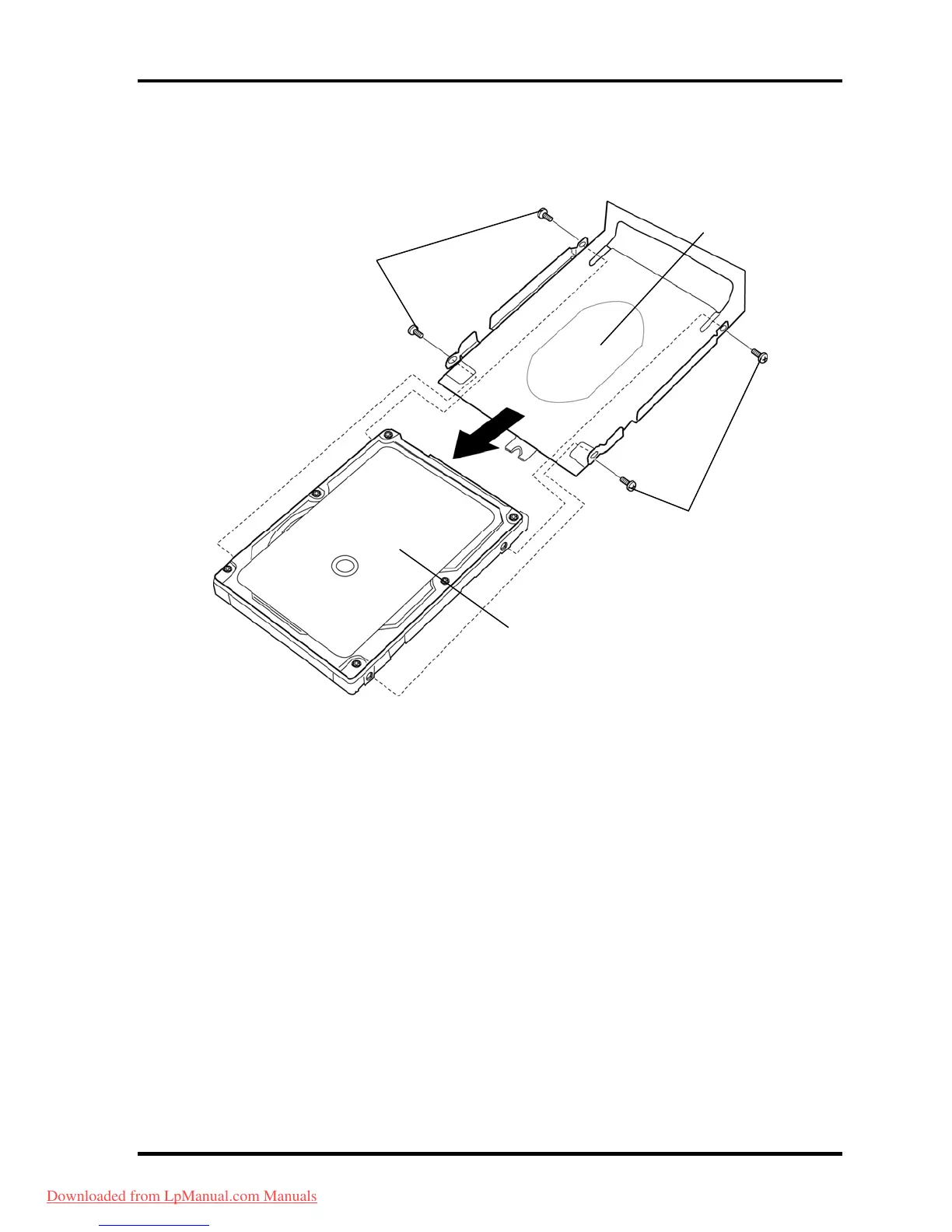

Figure 4-7 Removing the HDD-1
