4 Replacement Procedures 4.4 HDD
9. Remove the following screws and separate the HDD holder-2 and HDD-2.
• M3.0×4C FLAT HEAD screw ×4
HDD holder-2
HDD-2
M3.0x4C FLAT HEAD
M3.0x4C FLAT HEAD

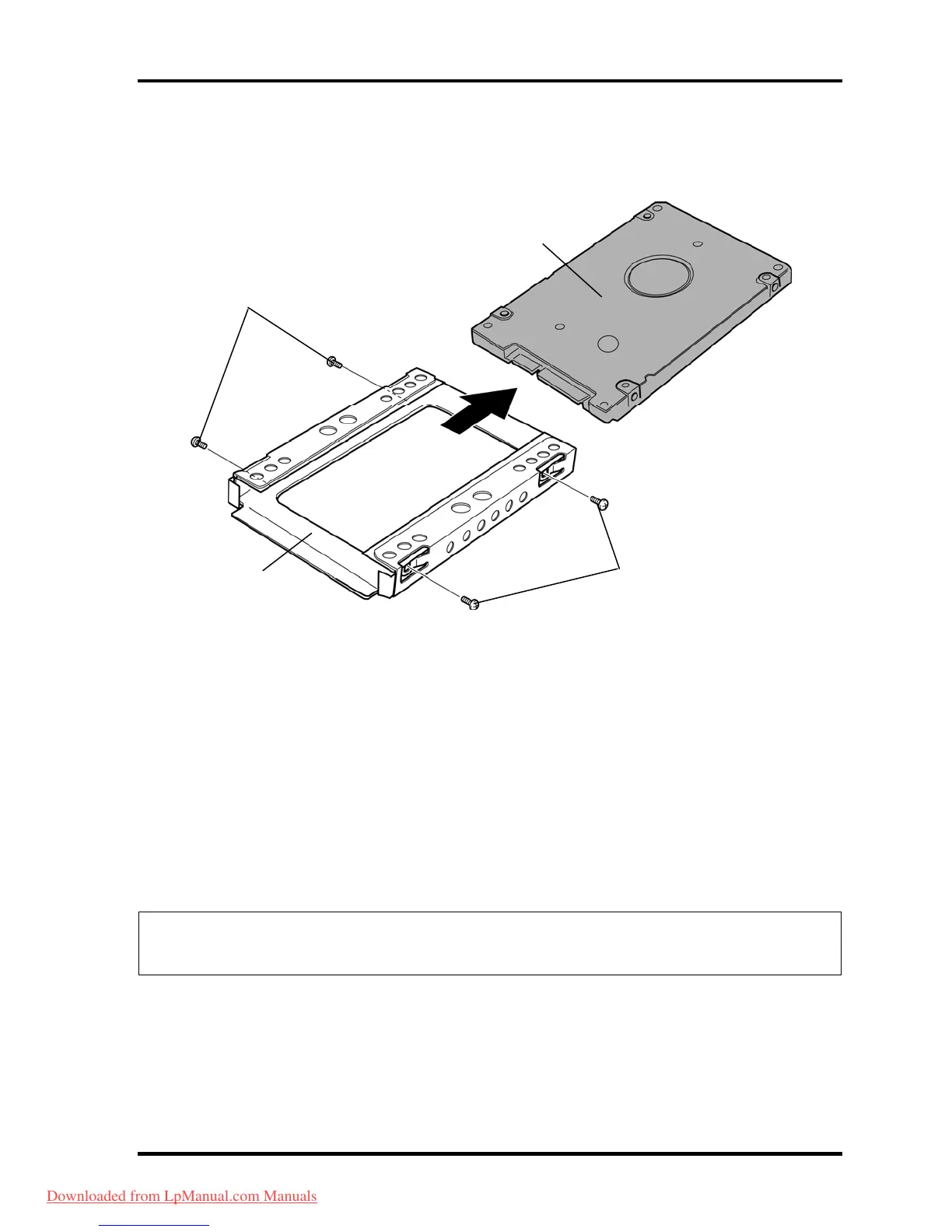

Figure 4-8 Removing the HDD-2
Installing the HDD
The following describes the procedure for installing the HDD (See Figure 4-5 to 4-8).
1. Set the HDD-2 to the HDD holder-2 and secure them with the following screws.
• M3.0×4C FLAT HEAD screw ×4
2. Set the HDD-1 to the HDD holder-1 and secure them with the following screws.
• M3.0×4C FLAT HEAD screw ×4
NOTE: Although they are M3.0 head screws, screw torque must be set in 0.294 N·m
(3.0Kgf·cm) for four screws securing the HDD holder.
3. Connect the HDD-2 assembly to the connector of the HDD-2 cable and set the
HDD-2 assembly into the HDD-2 slot.
4. Set the HDD-2 cover to the slot and secure it with the following screw.
4-18 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
