4.8 Optical disk drive (DVD-super multi drive) 4 Replacement Procedures
4. Remove the following screws and ODD rear bracket.
• M2.0×2.7C Unique screw ×2
5. Remove the following screw and ODD side bracket.
• M2.0×3C S-THIN HEAD screw ×1
ODD rear bracket
M2.0x2.7C Unique
ODD side bracket
M2.0x3C S-THIN HEAD

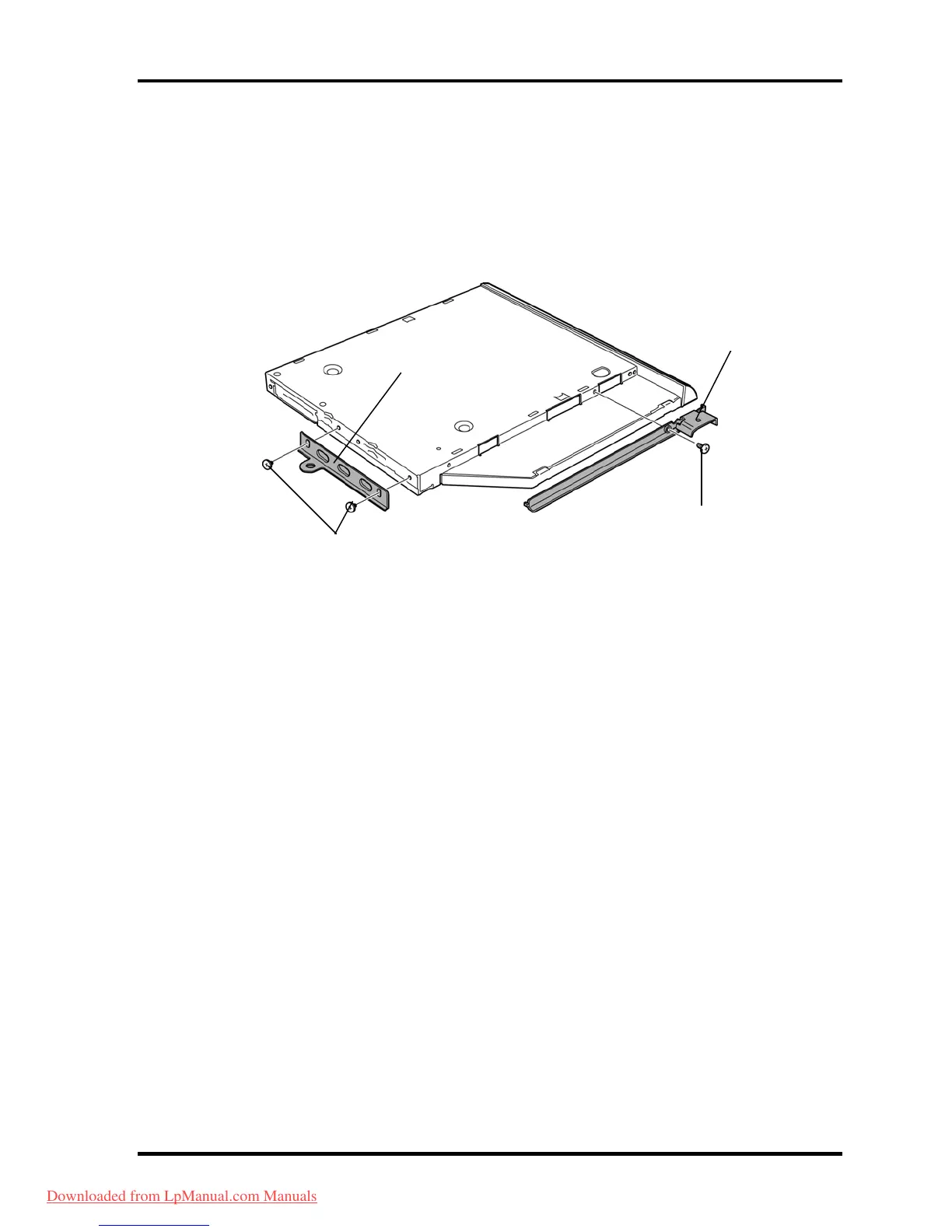

Figure 4-16 Removing the optical disk drive (3)
QOSMIO G50 Maintenance Manual (960-683) [CONFIDENTIAL] 4-27
