4 Replacement Procedures 4.9 Cover assembly
3. Remove the following screws securing the cover assembly.
• M2.5×2.8B FLAT HEAD screw ×2 (Described as “2.8” in the figure)
• M2.5×6B FLAT HEAD screw ×7 (Described as “6B” in the figure)
• M2.5×6C FLAT HEAD screw ×2 (Described as “6C” in the figure)
• M2.5×16B FLAT HEAD screw ×6 (Described as “16” in the figure)
16
16
16
16
16
16
6C
6C
2.8
2.8
6B
6B
6B
6B
6B
6B
6B

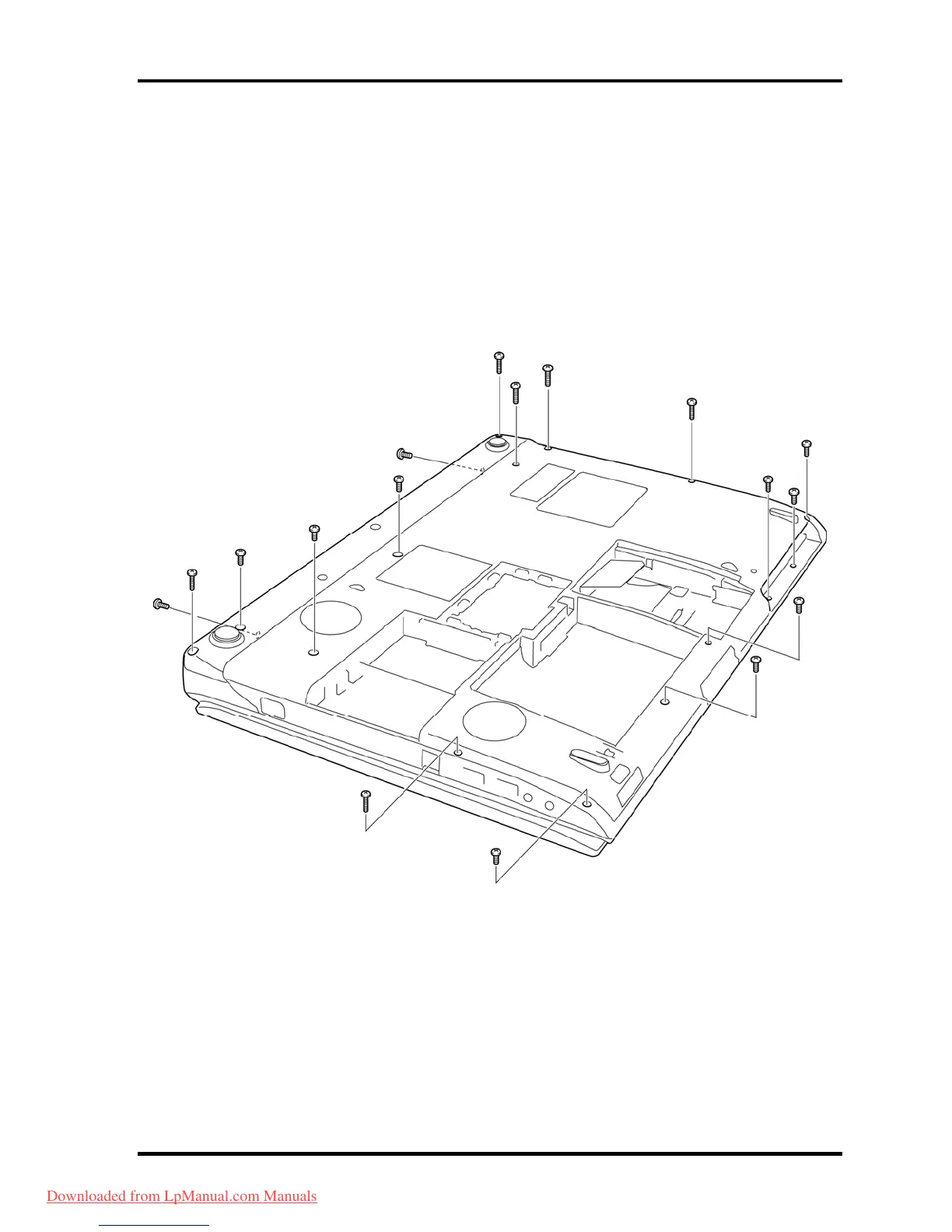

Figure 4-18 Removing the cover assembly (2)
4-30 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
