4.9 Cover assembly 4 Replacement Procedures
9. Remove the cover assembly from the base assembly while releasing the latches.
10. Remove the WL SW cover from the slot.
Base assembly
Cover assembly
WL SW cover

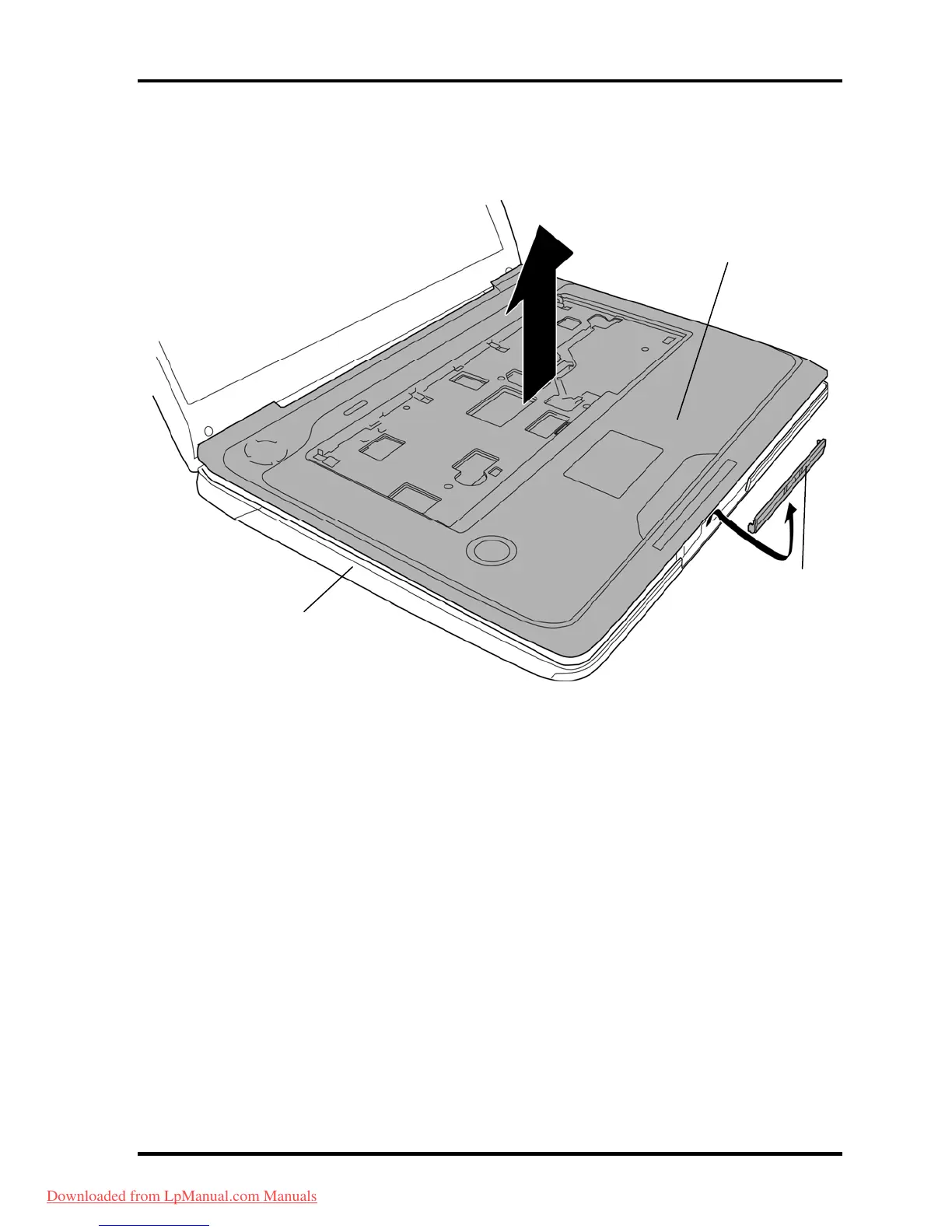

Figure 4-21 Removing the cover assembly (5)
