4 Replacement Procedures 4.9 Cover assembly
7. Take out the camera/microphone cable and Bluetooth cable from the slot.
8. Remove the following screws securing the cover assembly.
• M2.5×6B FLAT HEAD screw ×6
M2.5x6B FLAT HEAD
M2.5x6B FLAT HEAD
Bluetooth cable
Camera/microphone cable

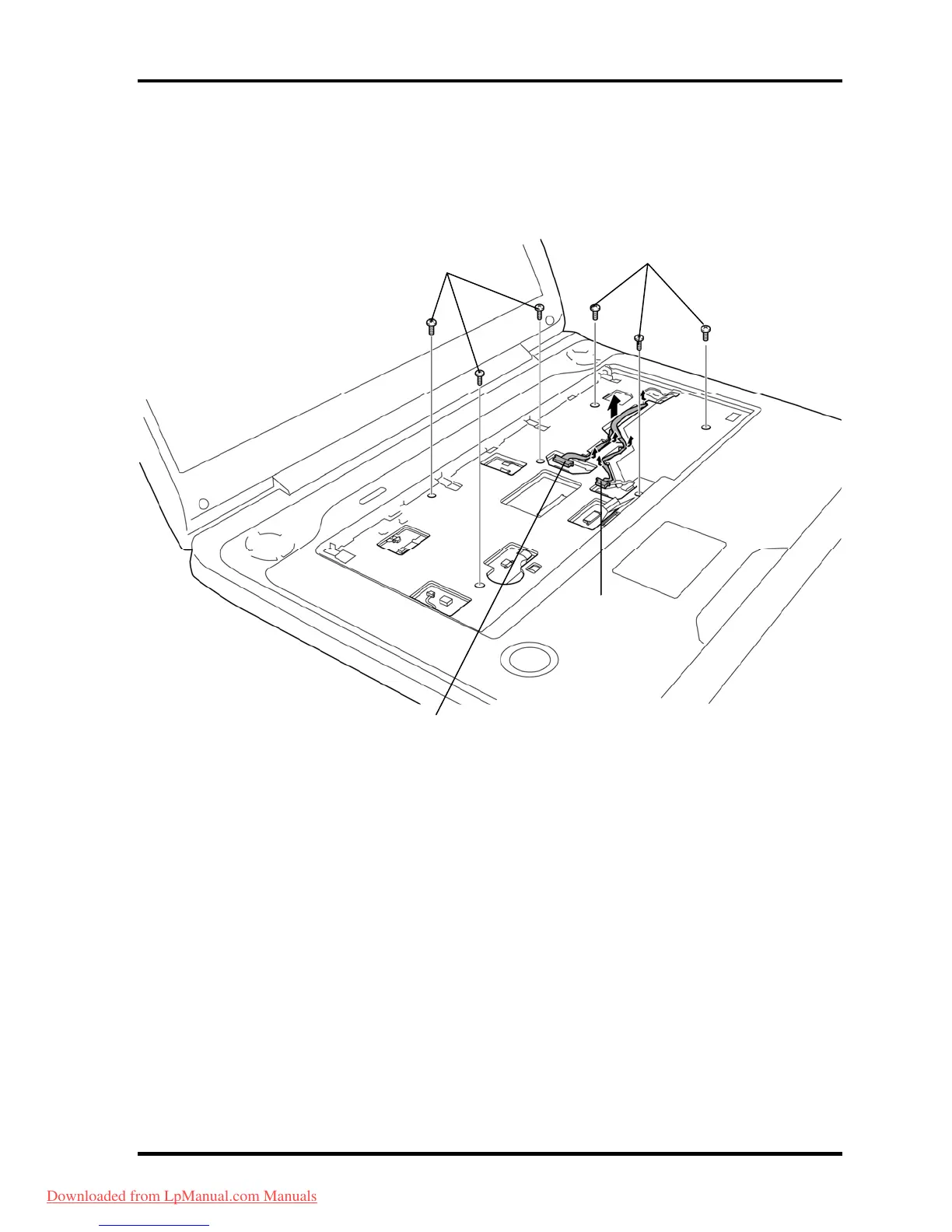

Figure 4-20 Removing the cover assembly (4)
4-32 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
