4.16 Wireless LAN card 4 Replacement Procedures
4.16 Wireless LAN card
Removing the wireless LAN card
The following describes the procedure for removing the wireless LAN card (See Figure 4-33
and 4-34).
1. Disconnect the wireless LAN antenna cables from the terminals on the wireless
LAN card.
2. Remove the following screws securing the wireless LAN card.
• M2.0×3C BIND screw ×2
3. Disconnect the wireless LAN card from the connector CN2600 on the system board.
Wireless LAN card
Wireless LAN antenna cable
M2.0x3C BIND
CN2600

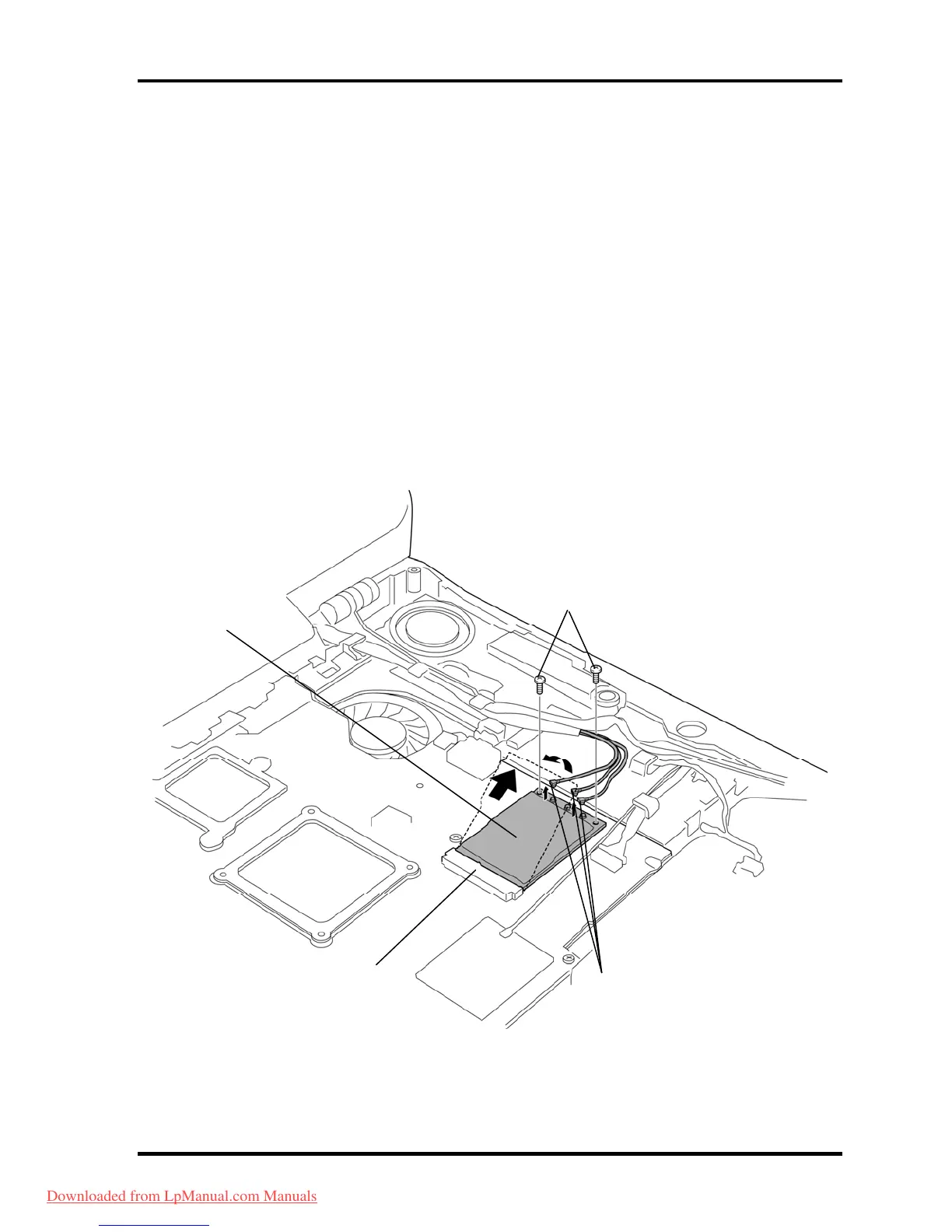

Figure 4-33 Removing the wireless LAN antenna cable (three antenna cables)
QOSMIO G50 Maintenance Manual (960-683) [CONFIDENTIAL] 4-51
