4 Replacement Procedures 4.24 System board
4.24 System board

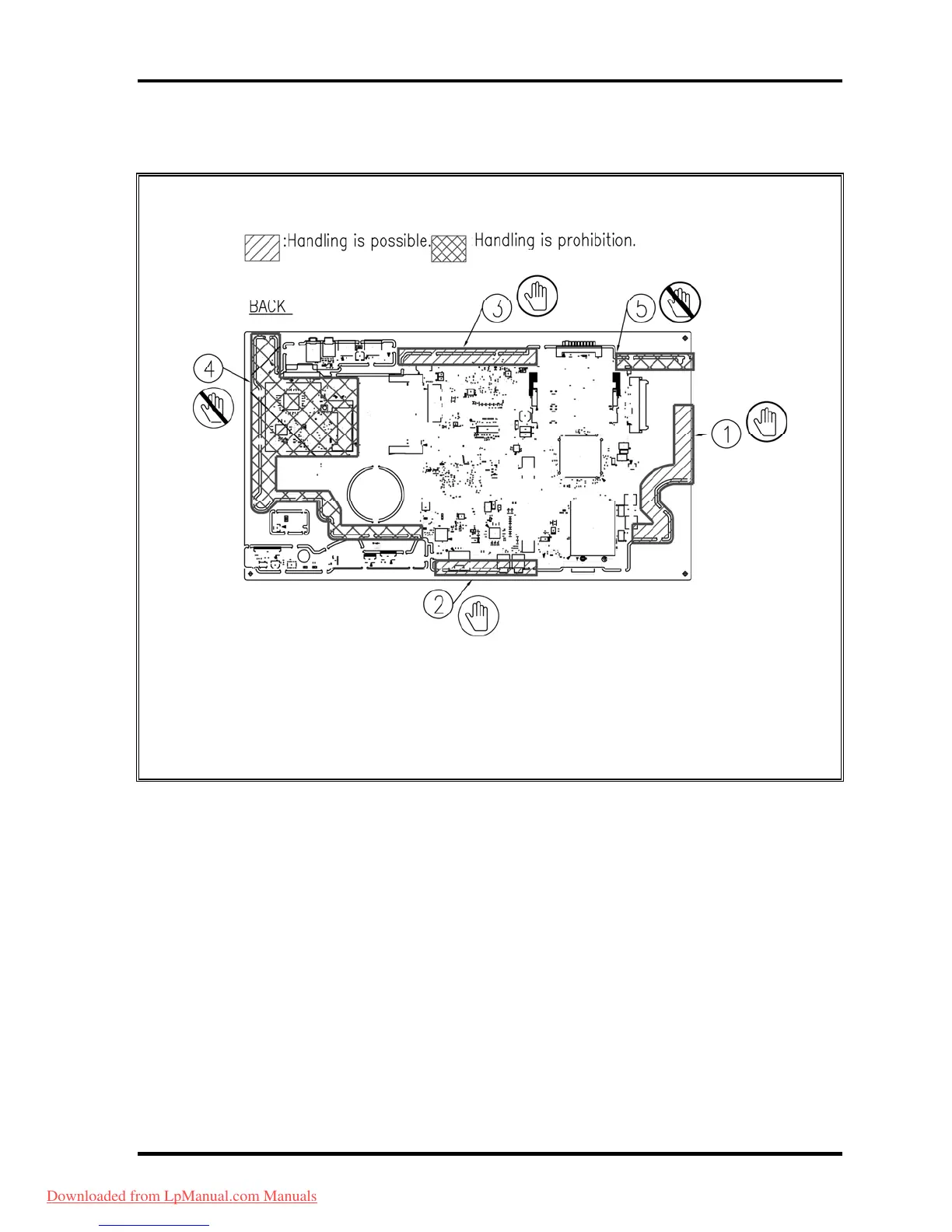

CAUTION: 1. When removing/installing the system board, handle with the area
and do not handle with the area .
2. When handling the system board, always hold by the edges. Do not touch
the printed circuit face.
3. If replacing with a new system board, execute the subtest01 Initial
configuration in section 3.4 “Setting of the hardware configuration”. Also
update with the latest BIOS and EC/KBC as described in Appendix G and
in Appendix H.
4-68 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
