4 Replacement Procedures 4.35 LCD unit/FL inverter
6. Remove the following screws securing the LCD unit.
• M2.5×6B FLAT HEAD screw ×6
7. Release the cables and remove the LCD unit from the LCD cover.
LCD unit
M2.5x6B FLAT HEAD
M2.5x6B FLAT HEAD
M2.5x6B FLAT HEAD

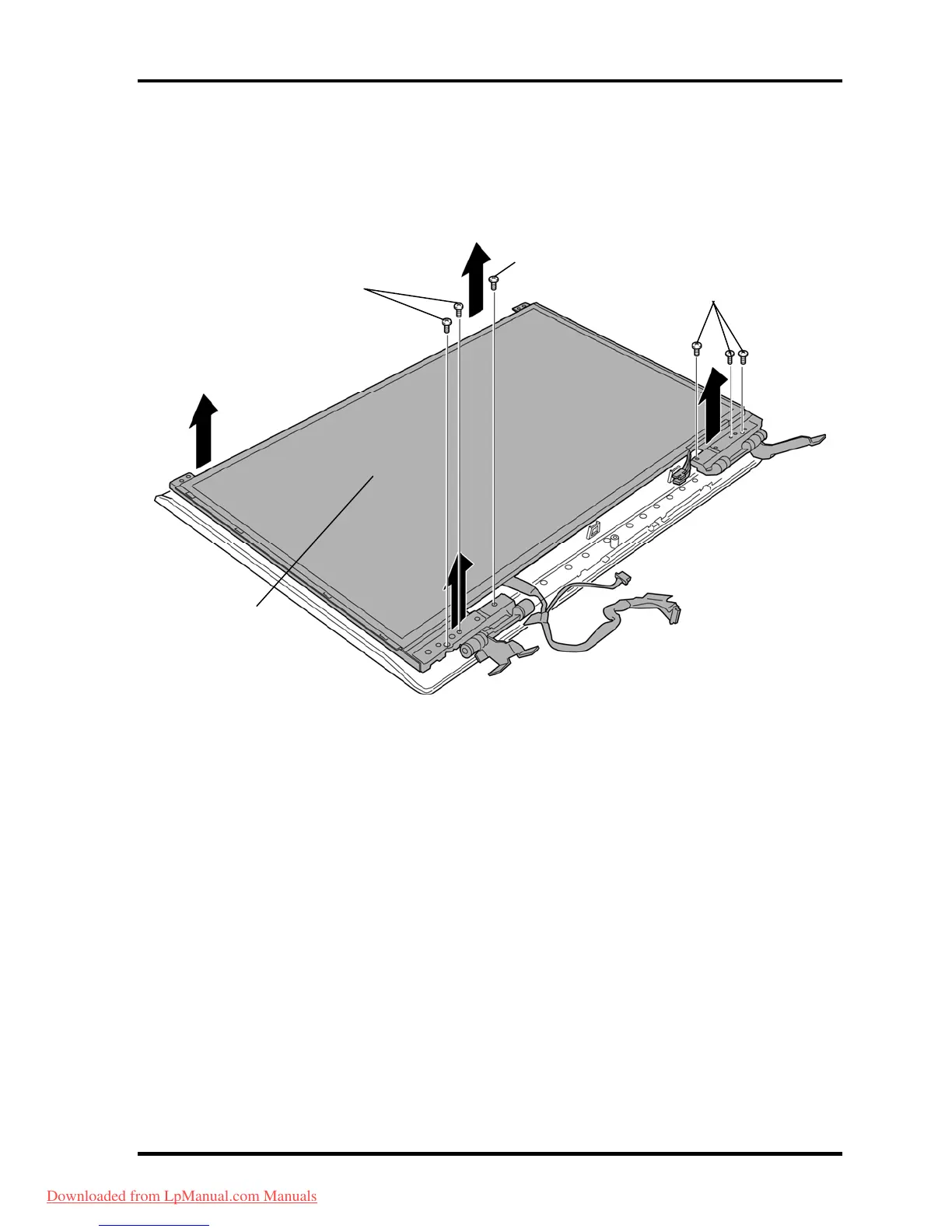

Figure 4-68 Removing the LCD unit
