4.35 LCD unit/FL inverter 4 Replacement Procedures
8. Remove the following screws and brake hinges (left and right) from the LCD unit.
• M2.0×4B S-THIN HEAD screw ×8
M2.0x4B
S-THIN HEAD
M2.0x4B S-THIN HEAD
Brake hinge L
Brake hinge R

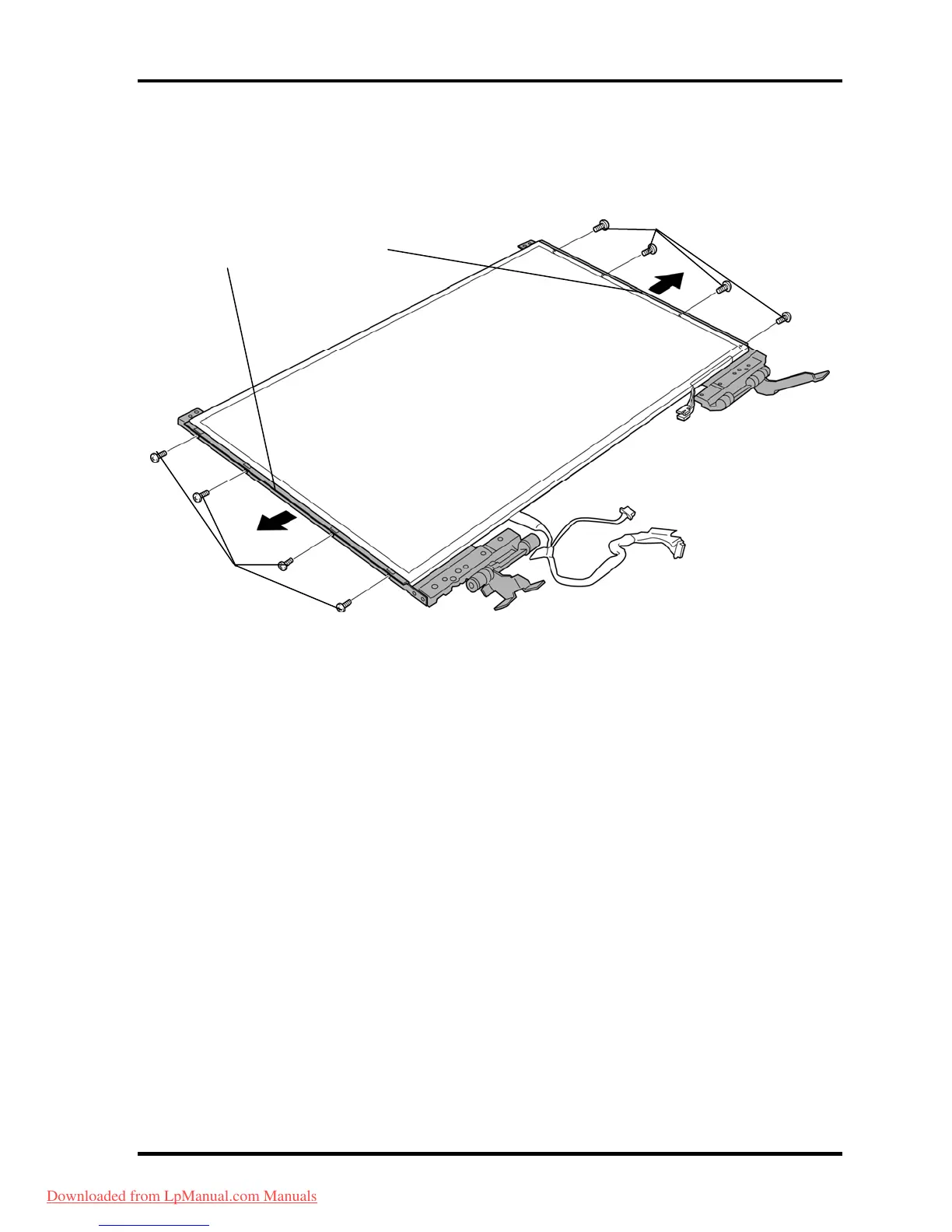

Figure 4-69 Removing the brake hinge (left and right)
QOSMIO G50 Maintenance Manual (960-683) [CONFIDENTIAL] 4-103
