4.38 Fluorescent lamp 4 Replacement Procedures

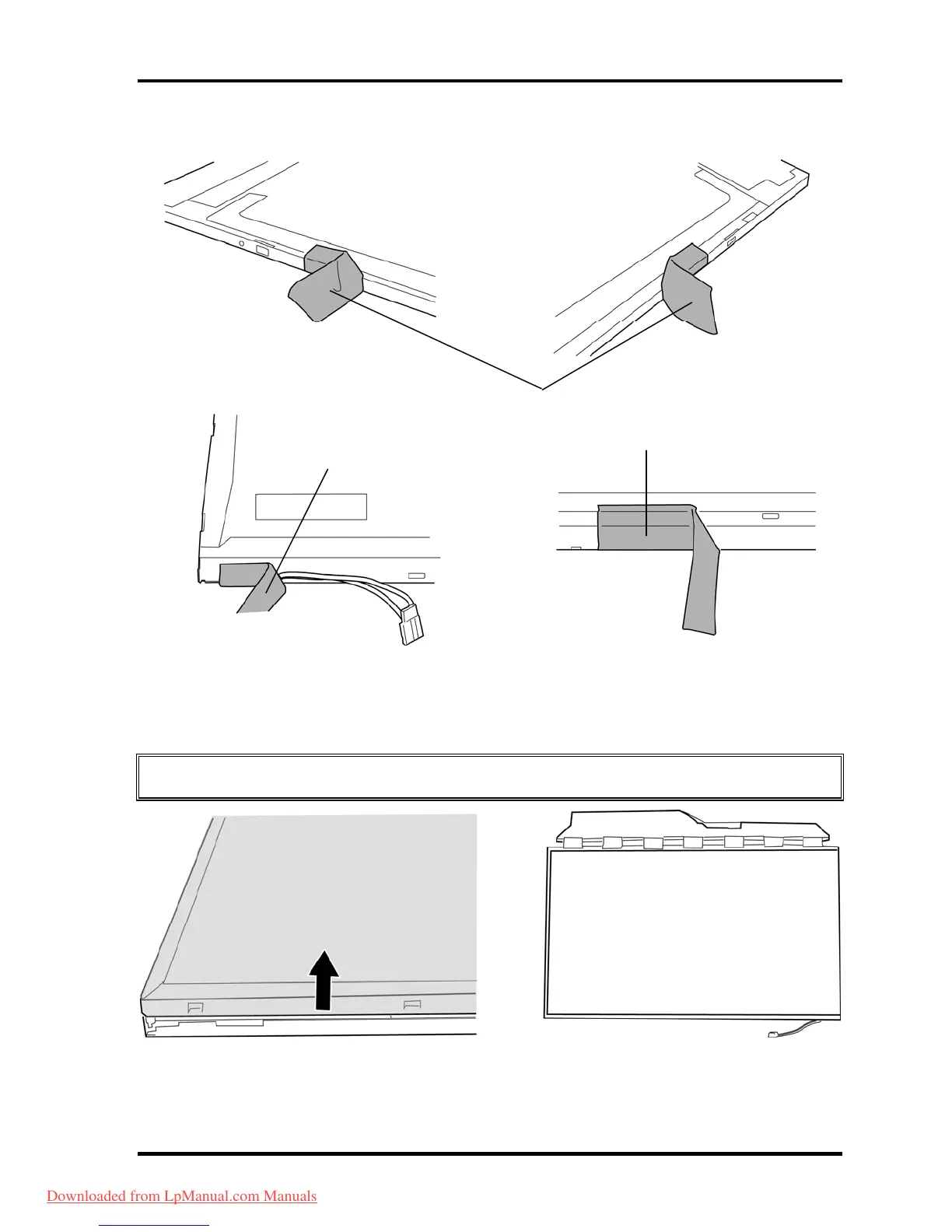

2. Remove the yellow tapes, lamp-wire tape and Al tape.
Lamp-wire tape
Bottom Al tape
Side yellow tape
Figure 4-77 Replacing Samsung fluorescent lamp (HD+) (2)
3. Separate the top chassis and molded frame.
CAUTION: Remove in the order of bottom hook and side hooks (left and right).
Figure 4-78 Replacing Samsung fluorescent lamp (HD+) (3)
QOSMIO G50 Maintenance Manual (960-683) [CONFIDENTIAL] 4-115
