4 Replacement Procedures 4.38 Fluorescent lamp
4. Separate the panel assembly and backlight unit.
CAUTION: Handle with care not to damage COF of S/D.
Panel assembly

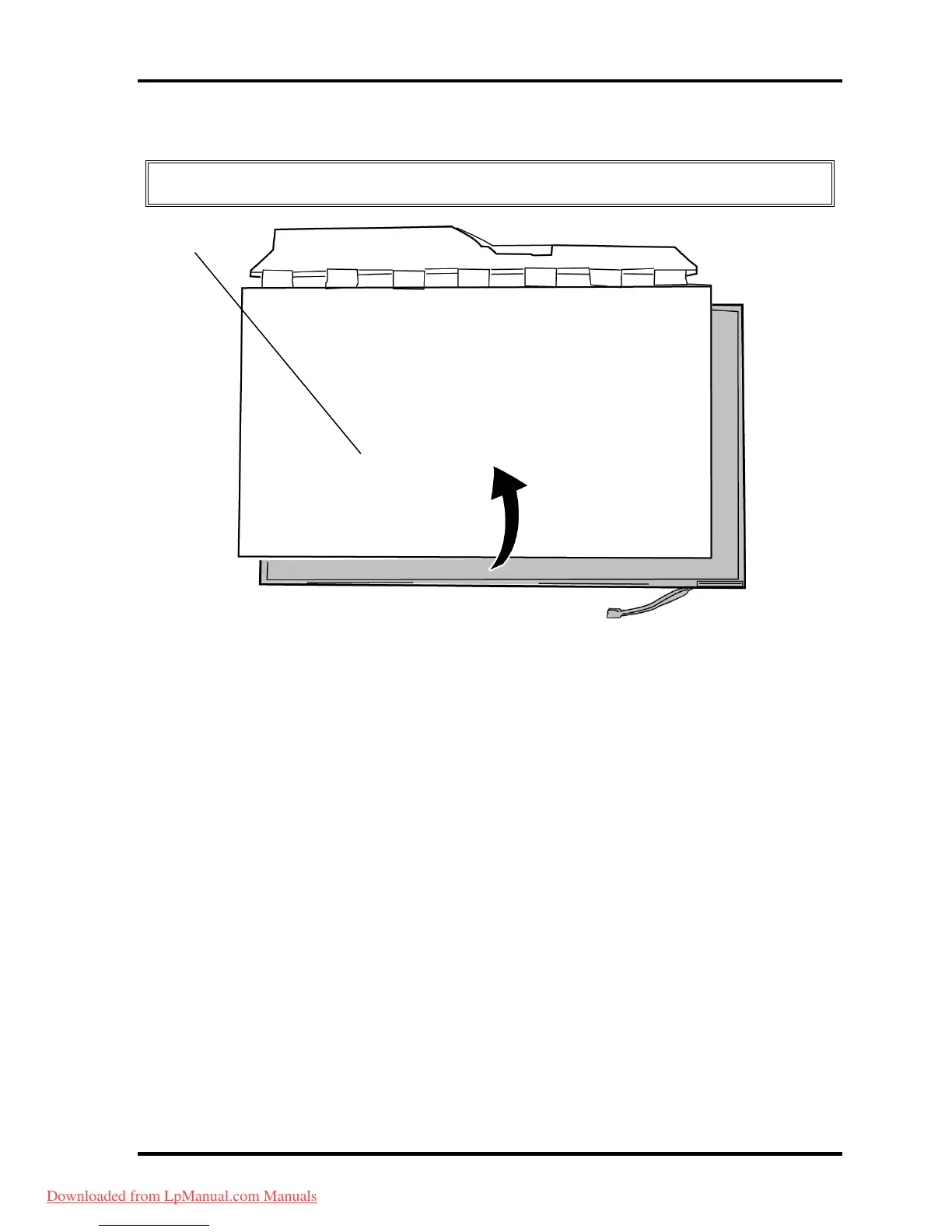

Figure 4-79 Replacing Samsung fluorescent lamp (HD+) (4)
Assembling the fluorescent lamp
The assembly procedure of the 18.4-inch Samsung fluorescent lamp is the reverse of the
above disassembly procedure. Refer to figures 4-76 to 4-79.
1. Install the panel assembly on the backlight unit.
2. Install the top chassis on the molded frame.
3. Stick the yellow tapes, lamp-wire tape and Al tape.
4. Stick the PCB cover.
4-116 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
