Toshiba QOSMIO G50 Maintenance Manual

Appendix B Board Layout Appendices
B.3 USB / Sound Jack board () View
(front)
(back)

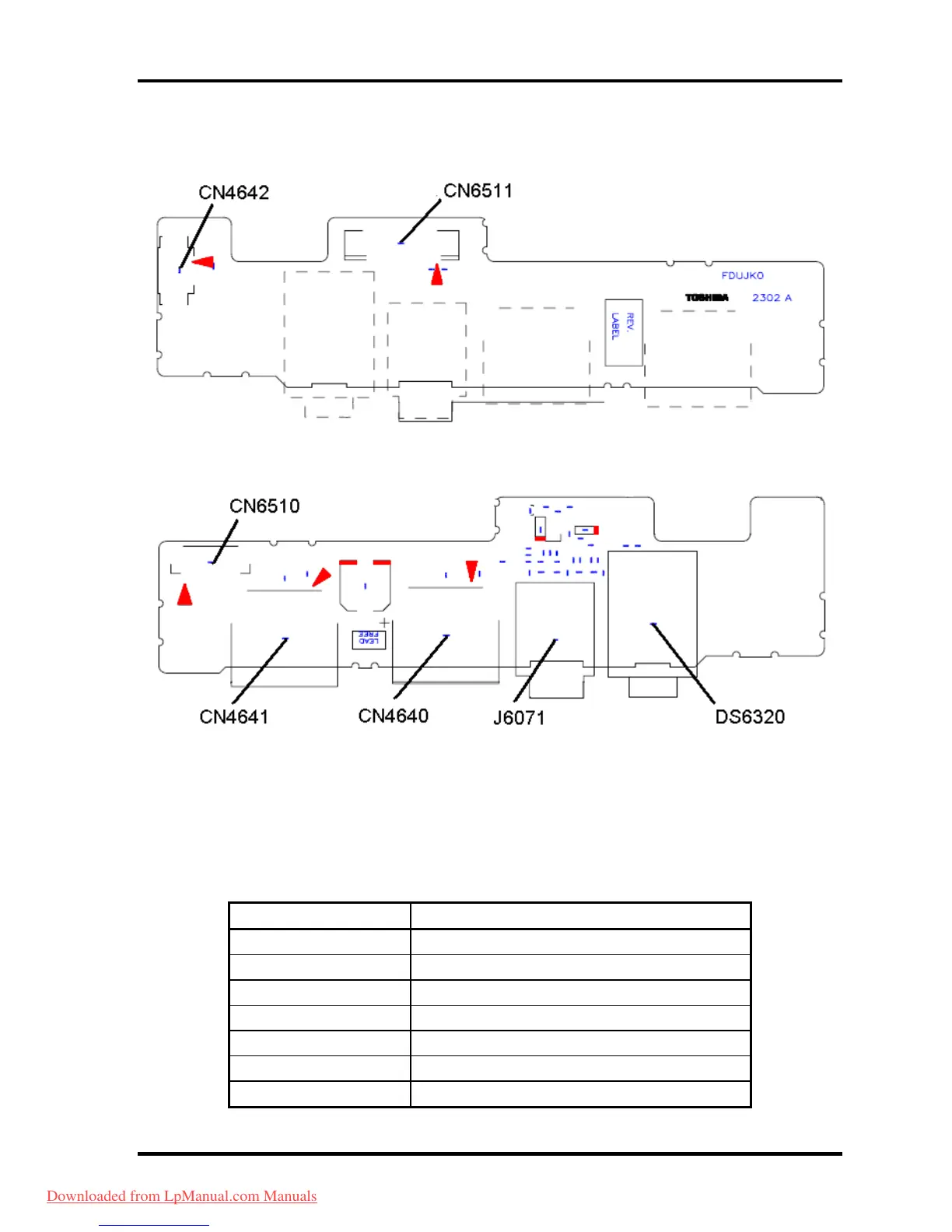

Figure B- 3 USB / Sound Jack board ( F DUJK *) layout (front/back)
Table B- 3 USB / Sound Jack board (F DUJK *) connector ( front/ back)
Number Name
CN4640 USB (Port8) I/F connector
CN4641 USB (Port11) I/F connector
CN4642 RTC cell I/F connector
CN6510 System board I/F connector
CN6511 System board I/F connector
DS6320 SPDIF I/F connector
J6071 Ext MIC I/F connector
QOSMIO G50 Maintenance Manual (960-683) [CONFIDENTIAL] B-5
