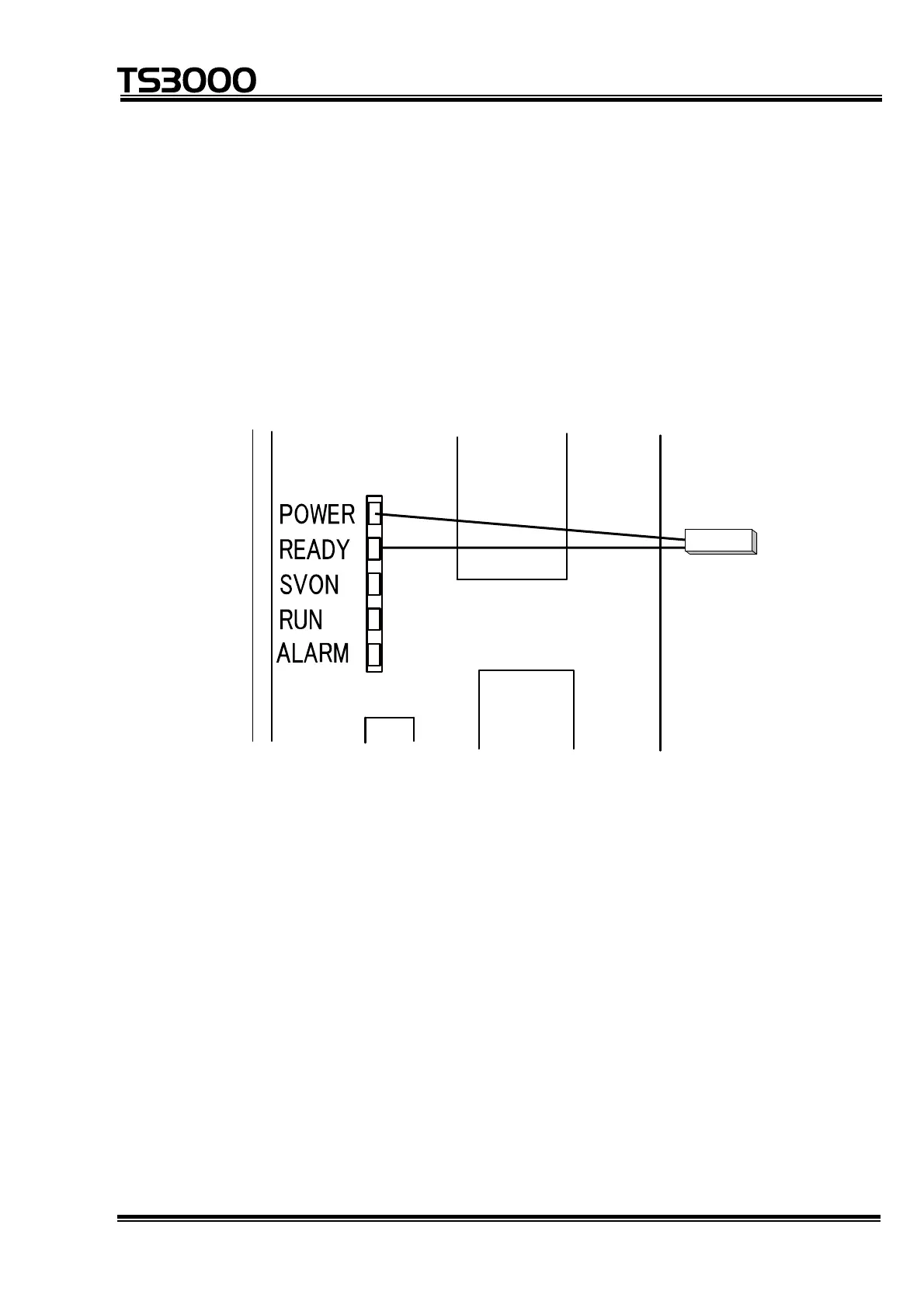

TRANSPORTATION AND INSTALLATION MANUAL

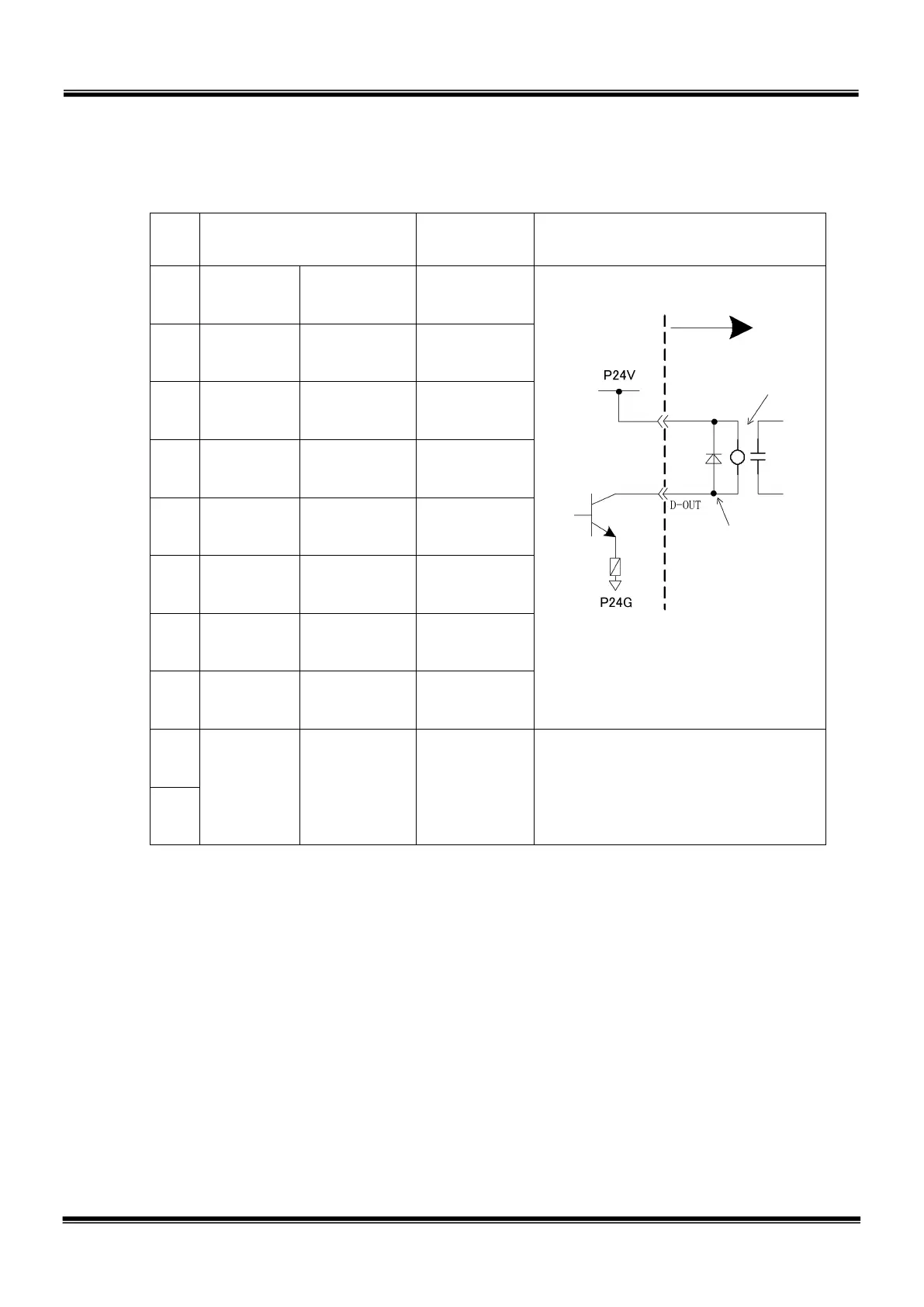

b-1) Output signal connector HAND (Type-N)
Pin Signal name Signal No.
Input circuit and example of
connections
9 D-OUT0
Output
signal 0
201
10 D-OUT1
Output
signal 1
202
11 D-OUT2
Output
signal 2
203
12 DOUT3
Output
signal 3
204
13 D-OUT4
Output
signal 4
205
14 D-OUT5
Output
signal 5
206
15 D-OUT6
Output
signal 6
207
16 D-OUT7
Output
signal 7
208
17
P24V
DC24 V
power
18
Customer’s side
DC relay
[Sink type (- common)]
Diode for preventing
counter electromotive
voltage
STE 85305
