TRANSPORTATION AND INSTALLATION MANUAL

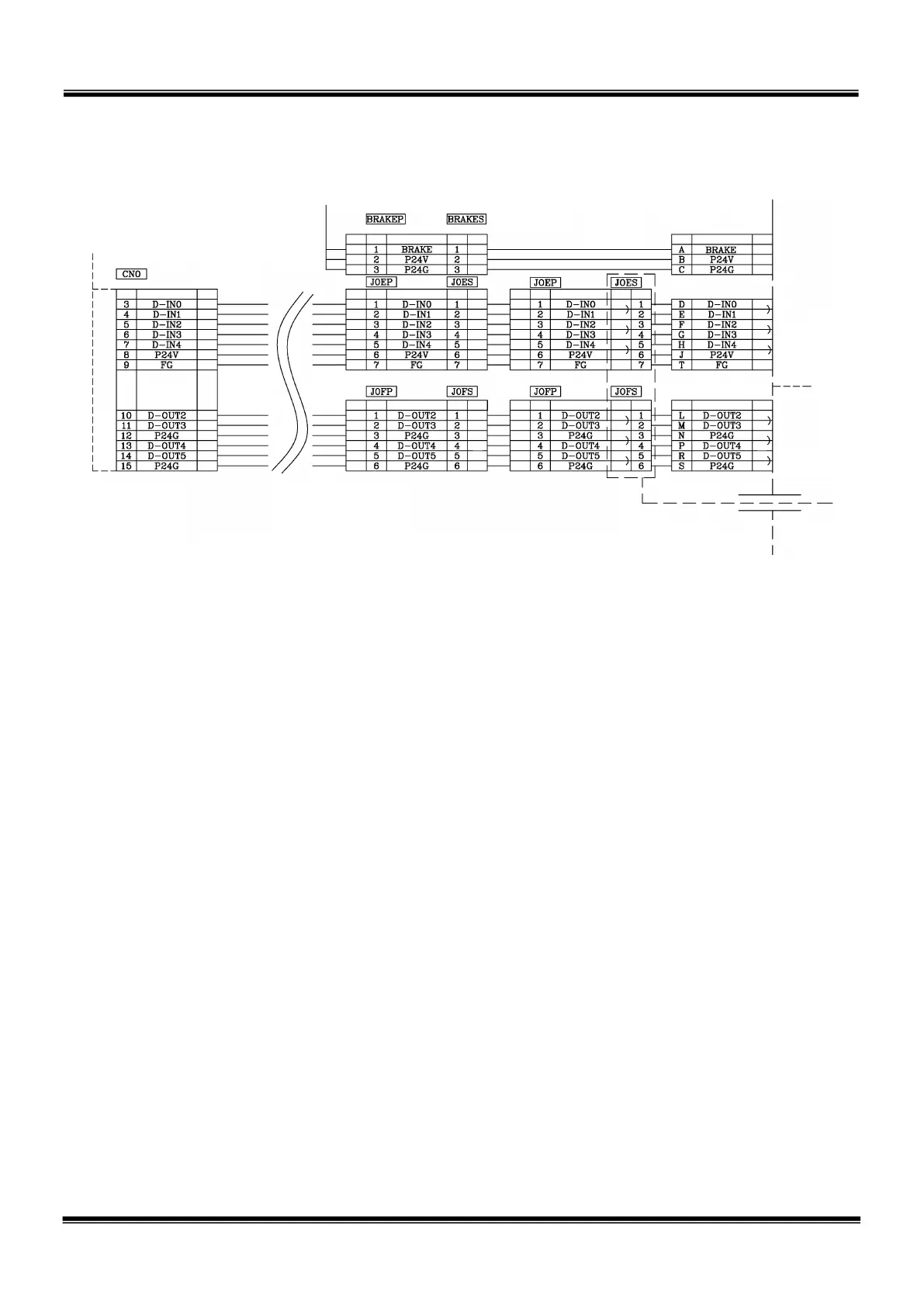

Fig. 5.4 Tool wiring (Type-P)
Arm 2 top surface of robot
To brake OFF switch
To motor brake
Robot base section
To TS3100
To PLC (To be
connected by
customer.)
Customer’s side: Plastic connector
JOES: SMP
-07V-BC*JST
JOFS: SMP
-06V BC*JST
Contact:
BHF-D01T-0.8SS*JST
STE 85305
