Toshiba TOSVERT VF-nC3 User Manual

E6581595
F-48
6
[Parameter setting]
Title
Function Adjustment range Default setting

Small current detection hysteresis 1-20 (%) 10

Small current trip/alarm selection
0: Alarm only
1: Tripping
0

Small current detection current 0-150 (%) / (A) 0

Small current detection time 0-255 (s) 0

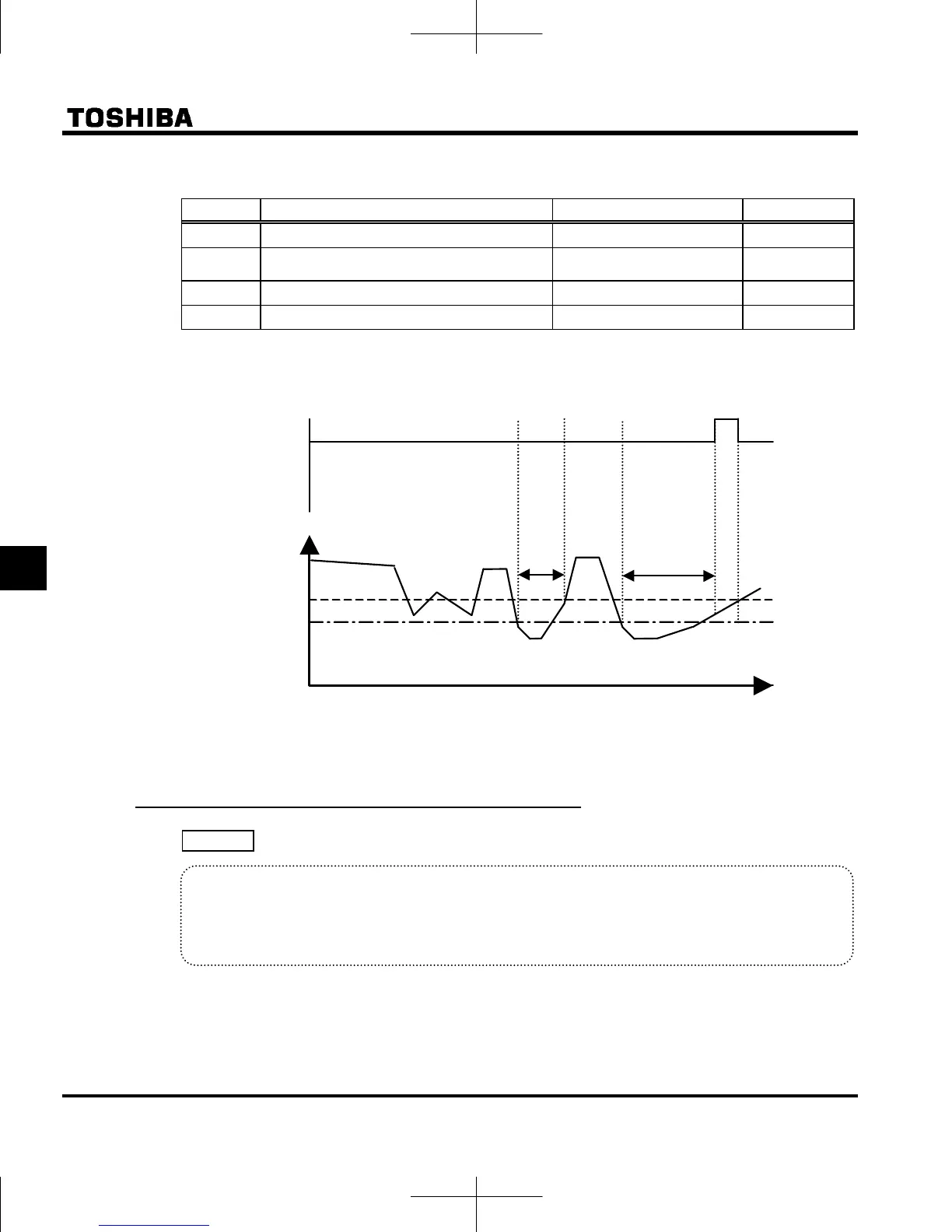

<Example of operation>
Output terminal function: 26 (UC) Low current detection
f610 = 0 (Alarm only)
Time [sec]
+

Output current (%)
Low current
signal output

or less

ON
OFF
OFF
* When setting f610 to 1 (Trip), trip after low current detection time setting of f612. After tripping,
the low current signal remains ON.
6.16.8 Detection of output short-circuit

 : Detection of output short-circuit at start-up
 Function
This parameter detects inverter output short-circuit. It can be usually detected in the length of the
standard pulse. When operating low-impedance motor such as high-speed motor, however, select the
short-time pulse.

=: Detection is executed in the length of the standard pulse every time you start up the inverter.
=: Detection is executed in the length of standard pulse only during the first start-up after putting on
the power or after resetting.
=: Detection is executed with the short-time pulse every time you start up the inverter.
=: Detection is executed with the short-time pulse only for the first time after putting power on or
after resetting.

Toshiba TOSVERT VF-nC3 Specifications

General

Model	VF-nC3
Category	Inverter
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, sensorless vector control
Overload Capacity	150% for 60 seconds
Input Frequency	50/60 Hz
Enclosure Rating	IP20
Input Voltage	200-240V AC
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Ambient Temperature	-10°C to +50°C
Communication	Modbus RTU
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Braking Unit	Built-in braking transistor (for models up to 22kW), External braking resistor required
