Toshiba TOSVERT VF-nC3 User Manual

E6581595
A-7
1
(2) Removing the upper terminal (input terminal) block cover
★ After wiring is complete, be sure to restore the terminal cover to its original position.
1)
2)
3) 4)

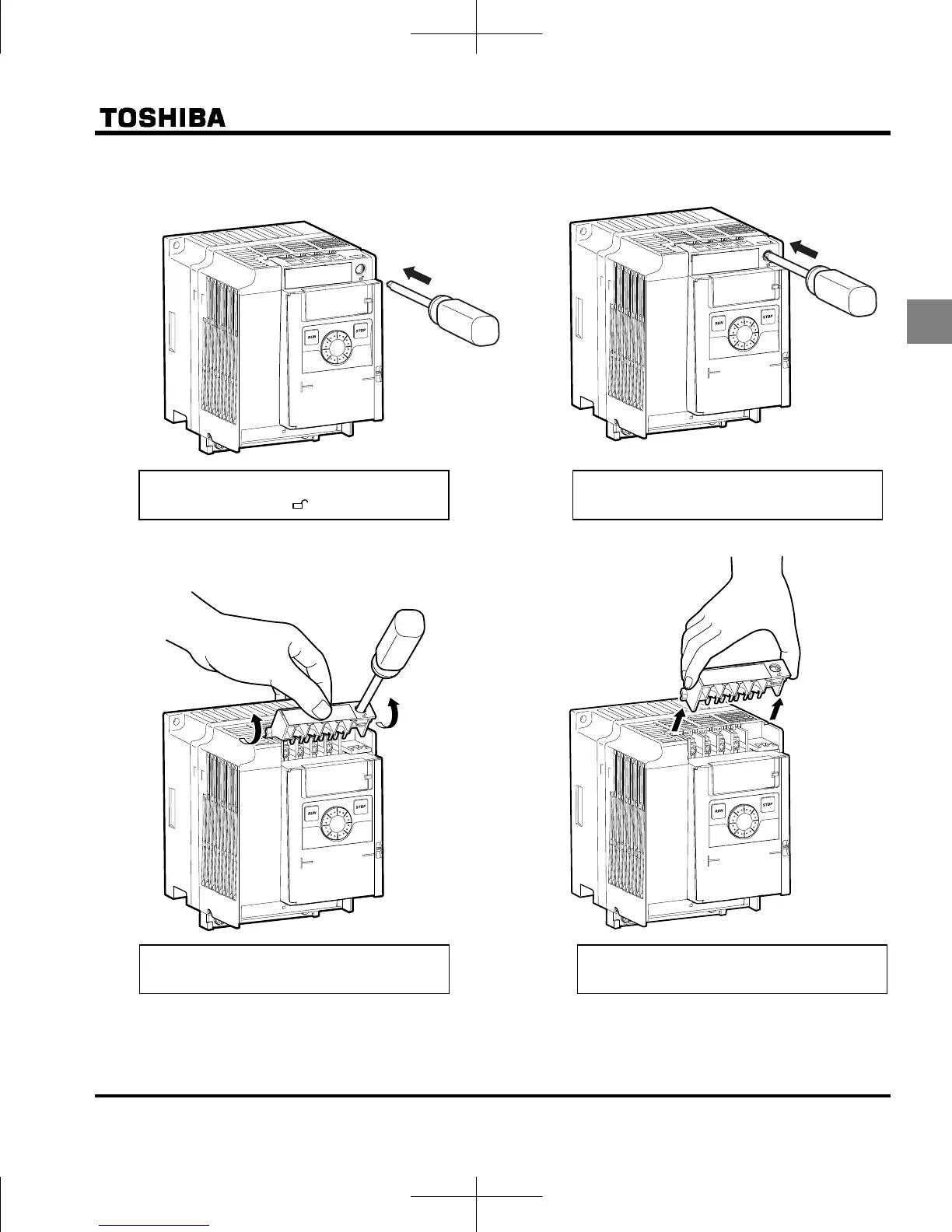

Insert a screwdriver or other thin object into the
hole indicated with the mark.
Press in on the screwdriver.
While pressing on the screwdriver, rotate the
terminal cover upward to remove it.
Pull the terminal cover up at an angle.

Toshiba TOSVERT VF-nC3 Specifications

General

Model	VF-nC3
Category	Inverter
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, sensorless vector control
Overload Capacity	150% for 60 seconds
Input Frequency	50/60 Hz
Enclosure Rating	IP20
Input Voltage	200-240V AC
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Ambient Temperature	-10°C to +50°C
Communication	Modbus RTU
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Braking Unit	Built-in braking transistor (for models up to 22kW), External braking resistor required
