Toshiba TOSVERT VF-nC3 User Manual

E6581595
H-5
8
(Continued)

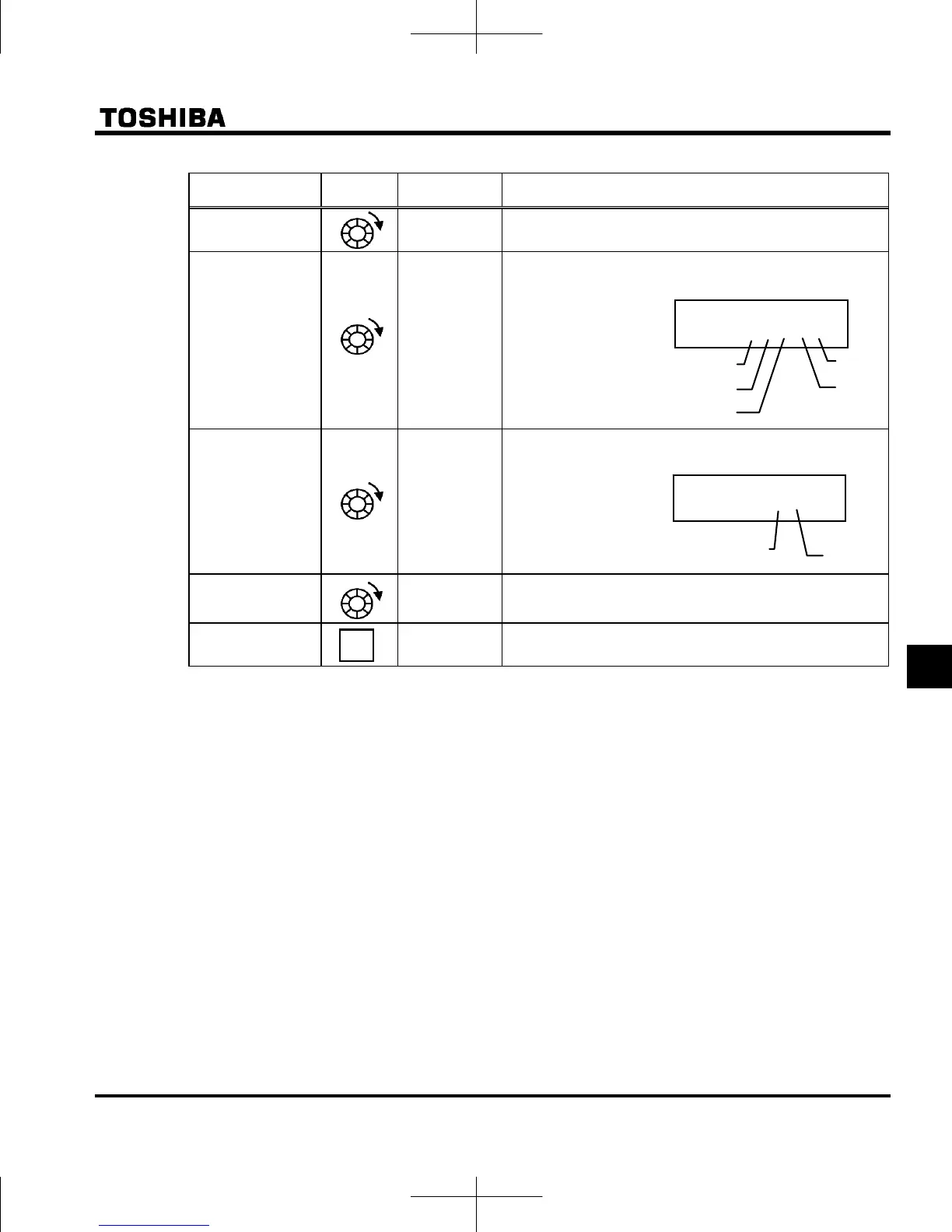

Item displayed
Panel
operated
LED display Description
Output voltage

The inverter output voltage when the trip occurred is
displayed. (%/V)
Input terminal
a }}i}i
The ON/OFF statuses of the control input terminals ( F, R,
S1, S2, V I ) are displayed in bits.
ON: 
OFF: 
Output terminal
0 }i
The ON/OFF statuses of the control output terminals ( OUT
and FL) are displayed in bits.
ON: 
OFF: 
Cumulative
operation time

The cumulative operation time when the trip occurred is
displayed.
(0.01=1 hour, 1.00=100 hours)
Past trip 1
  
Press this key to return to past trip 1.
* The monitor value of a trip is not always recorded as the maximum value because of the time required for
detection.
Refer to page H-8 for notes.
Note 4
Note 5
Note 8
a
}}i}i
VI
S2
F
R
S1
MODE
0
}i
FL
OUT

Toshiba TOSVERT VF-nC3 Specifications

General

Model	VF-nC3
Category	Inverter
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, sensorless vector control
Overload Capacity	150% for 60 seconds
Input Frequency	50/60 Hz
Enclosure Rating	IP20
Input Voltage	200-240V AC
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Ambient Temperature	-10°C to +50°C
Communication	Modbus RTU
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Braking Unit	Built-in braking transistor (for models up to 22kW), External braking resistor required
