E6581595
A-9
1

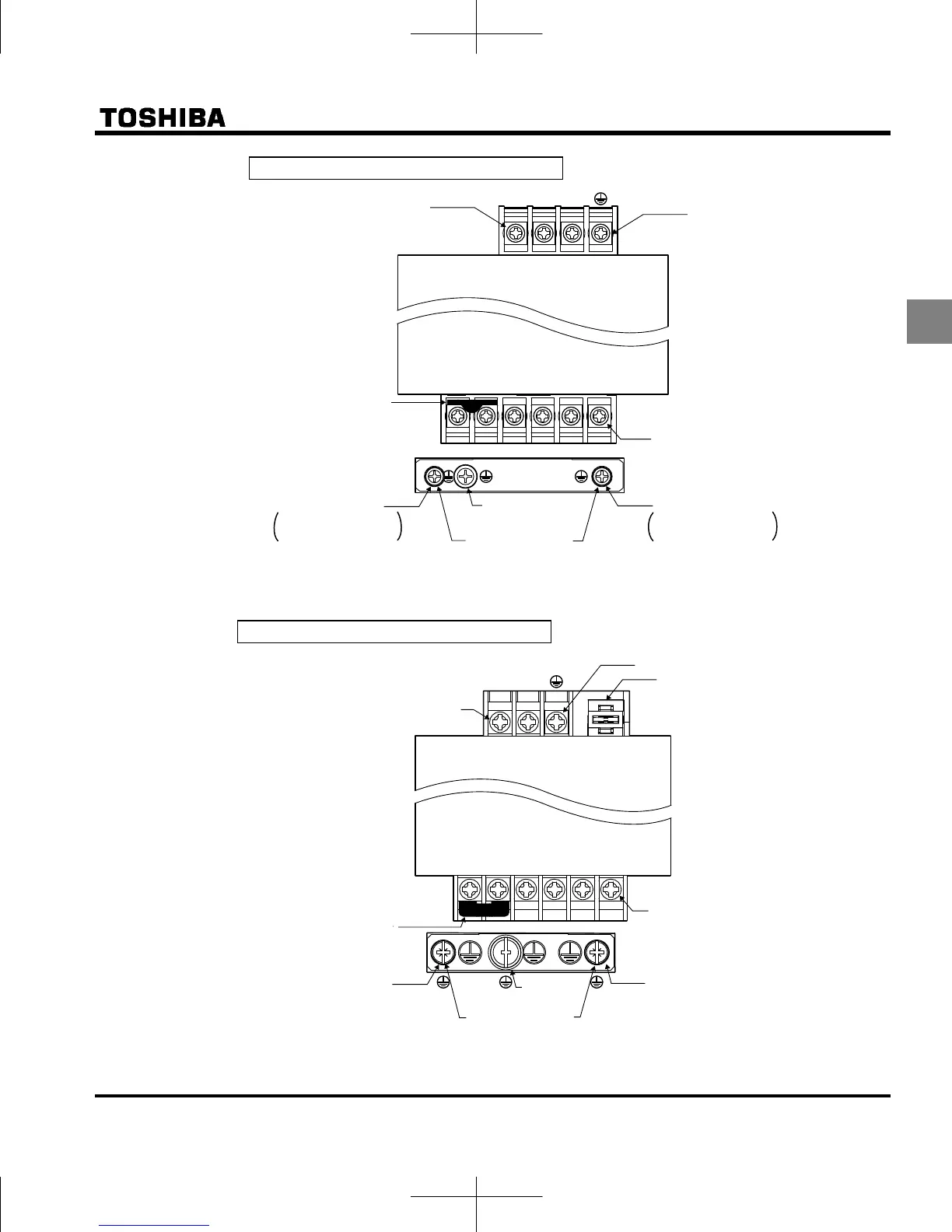

VFNC3-2015 2037P
R/L1 S/L2 T/L3
P0 PA/+ PC/- U/T1 V/T2 W/T3
Grounding terminal
M4 screw
Short-circuit cover
Grounding terminal
(M5 screw)
EMC plate
for installation (Note 1)
M4 screw
Grounding terminal
M4 screw: 2015, 2202
M5 screw: 2037
Grounding terminal
M4 screw: 2015, 2202
M5 screw: 2037
* Bend the clips on the wiring port of the terminal cover to connect the PO, PA/+, and PC/- terminals.
VFNC3S-1001～1004P，2001～2007PL
R/L1 S/L2/N
P0
PA/+
PC/-
U/T1 V/T2 W/T3
M3.5 screw
Grounding capacitor switch
(2001 to 2007 PL only)
Grounding terminal
(M4 screw)
M3.5 screw
Grounding terminal
Short-circuit cover
EMC plate
for installation (Note 1)
Grounding
terminal
(M5 screw)
Grounding terminal
* Bend the clips on the wiring port of the terminal cover to connect the PO, PA/+, and PC/- terminals.
Shorting-bar
Shorting-ba
(M4 screw)
To Next Page
