Toshiba TOSVERT VF-nC3 User Manual

E6581595
A-11
1

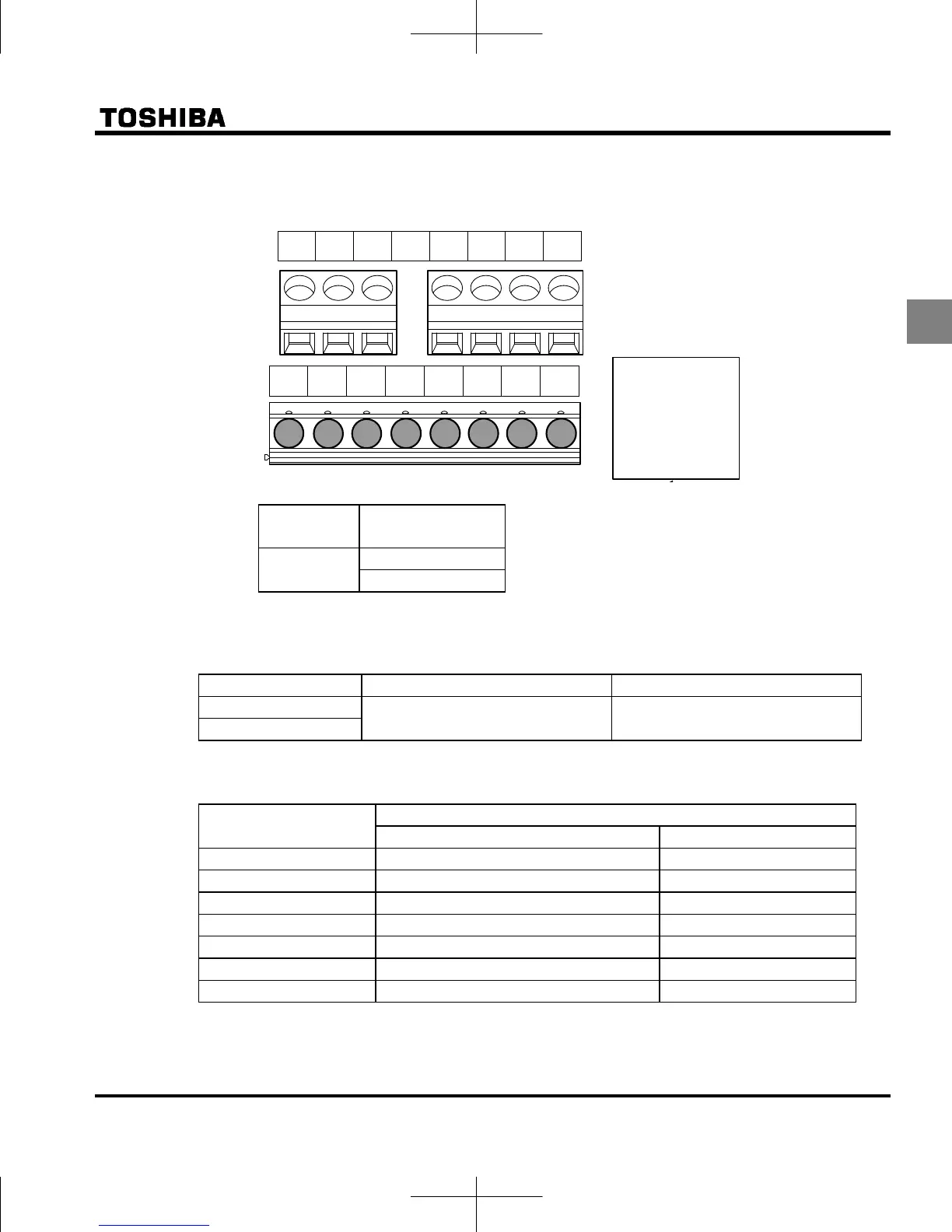

3) Control circuit terminal board
The control circuit terminal board is common to all equipment.
Wire size
Conductor 1 wire 2 wires of same size
Solid
0.3-1.5mm
2
(AWG 22-16) 0.3-0.75mm
2
(AWG 22-18)
Stranded
Recommended ferrule
Using ferrule to be improved efficiency and reliability of wiring is recommended.
Wire size
mm
2
(AWG)
Type
PHOENIX CONTACT Dinkle International.,Ltd
0.34 (22) AI 0.34-6TQ DN00306
0.5 (20) AI 0.5-6WH DN00506
0.75 (18) AI 0.75-6GY DN00706
1 (18) AI 1-6RD DN01006
1.5 (16) AI 1.5-8BK DN01508
2 X 0.5 (-) AI TWIN2 X 0.5-8WH DTE00508
2 X0.75 (-) AI TWIN2 X 0.75-8GY DTE00708
*1: Crimping pliers CRIMPFOX ZA3 ( PHOENIX CONTACT )
CT1( Dinkle International.,Ltd )
*2: These ferrules enable practical crimping of two wires in a ferrule.
OUT NO CC F R S1 S2 P24
FLA FLB FLC CC VI P5 FM
Optional connector
(RJ45)
RS485 connector
Stripping length: 6 (mm)
Screwdriver: Small-sized flat-blade screwdriver
(Blade thickness: 0.5 mm, blade width: 3.5 mm)
Screw size
Recommended
tightening torque
M2.5 screw
0.5 Nm
4.4 lbin
Refer to section 2.3.2 for details about all terminal functions.
*2
*2

Toshiba TOSVERT VF-nC3 Specifications

General

Model	VF-nC3
Category	Inverter
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, sensorless vector control
Overload Capacity	150% for 60 seconds
Input Frequency	50/60 Hz
Enclosure Rating	IP20
Input Voltage	200-240V AC
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Ambient Temperature	-10°C to +50°C
Communication	Modbus RTU
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Braking Unit	Built-in braking transistor (for models up to 22kW), External braking resistor required
