Toshiba TOSVERT VF-nC3 User Manual

E6581595
A-24
1
 Installing more than one unit in a cabinet
If you are installing two or more inverters in one cabinet, pay attention to the following.
 Inverters may be installed side by side with each other with no space left between them.
 When installing inverters side by side, detach the caution label on the top surface of each inverter and
use them where the ambient temperature will not rise above 40°C.
 When using inverters where the ambient temperature will rise above 40°C, leave a space of 3 cm or
more between them and remove the caution label from the top of each inverter, or operate each inverter
at a current lower than the rated one.
 Ensure a space of at least 20 centimeters on the top and bottom of the inverters.

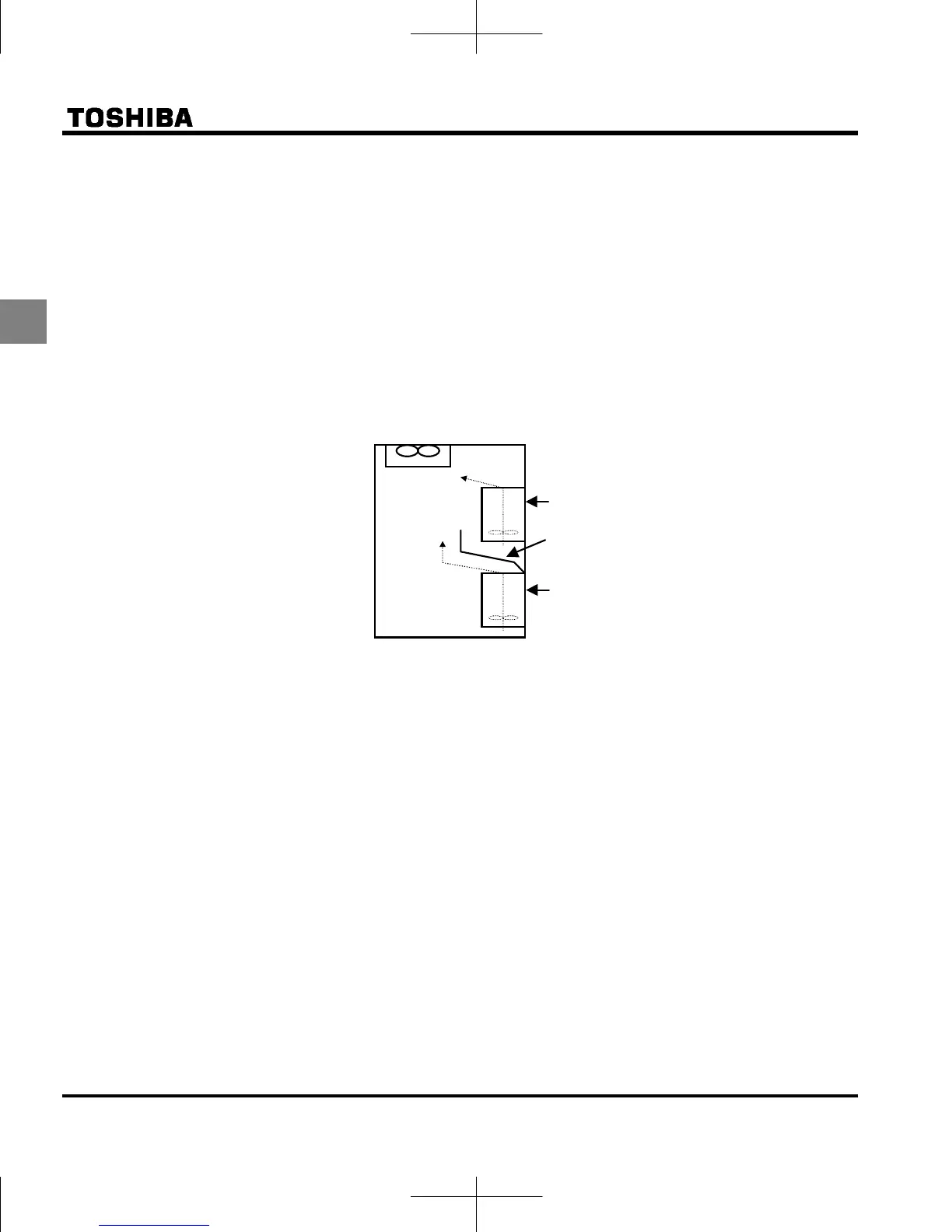

 Install an air deflecting plate so that the heat rising up from the inverter on the bottom does not affect the
inverter on the top.
Ventilation fan
Inverter
A
ir deflecting plate
Inverter

Toshiba TOSVERT VF-nC3 Specifications

General

Model	VF-nC3
Category	Inverter
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, sensorless vector control
Overload Capacity	150% for 60 seconds
Input Frequency	50/60 Hz
Enclosure Rating	IP20
Input Voltage	200-240V AC
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Ambient Temperature	-10°C to +50°C
Communication	Modbus RTU
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Braking Unit	Built-in braking transistor (for models up to 22kW), External braking resistor required
