Toshiba TOSVERT VF-nC3 User Manual

E6581595
B-12
2
 Selecting the functions of the VI terminal between analog input and logic input
The functions of the VI terminal can be selected between analog input and logic input by changing
parameter settings (). (Factory default setting: Analog input 0-10V)
Be sure to connect a resistor between P24 and VI terminals in case of sink logic, between VI and CC
terminals in case of source logic. (Recommended resistance: 4.7k-1/2W)
When using VI terminal as a logic input terminal, set the parameter = and connect as following
schematics.
If no resistor is inserted, logic input will be left always ON, which is very dangerous.
Switch between analog input and logic input before connecting the terminals to the control circuit terminals.
Otherwise the inverter or devices connected to it may be damaged.

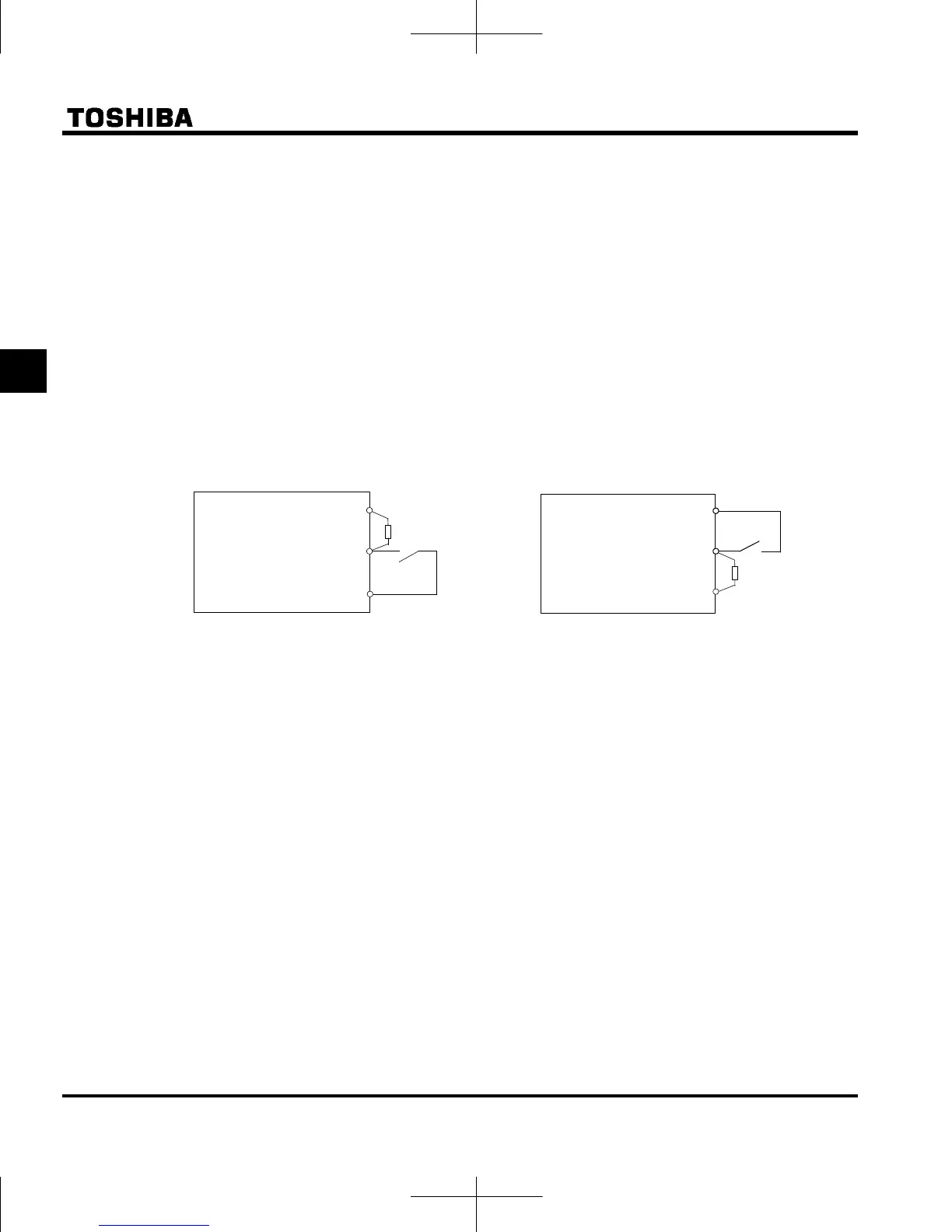

<Sink logic> <Source logic>
4.7kΩ
P24
V I
CC
4.7kΩ
P24
V I
CC

Toshiba TOSVERT VF-nC3 Specifications

General

Model	VF-nC3
Category	Inverter
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, sensorless vector control
Overload Capacity	150% for 60 seconds
Input Frequency	50/60 Hz
Enclosure Rating	IP20
Input Voltage	200-240V AC
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Ambient Temperature	-10°C to +50°C
Communication	Modbus RTU
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Braking Unit	Built-in braking transistor (for models up to 22kW), External braking resistor required
