Toshiba TOSVERT VF-nC3 User Manual

E6581595
D-5
4

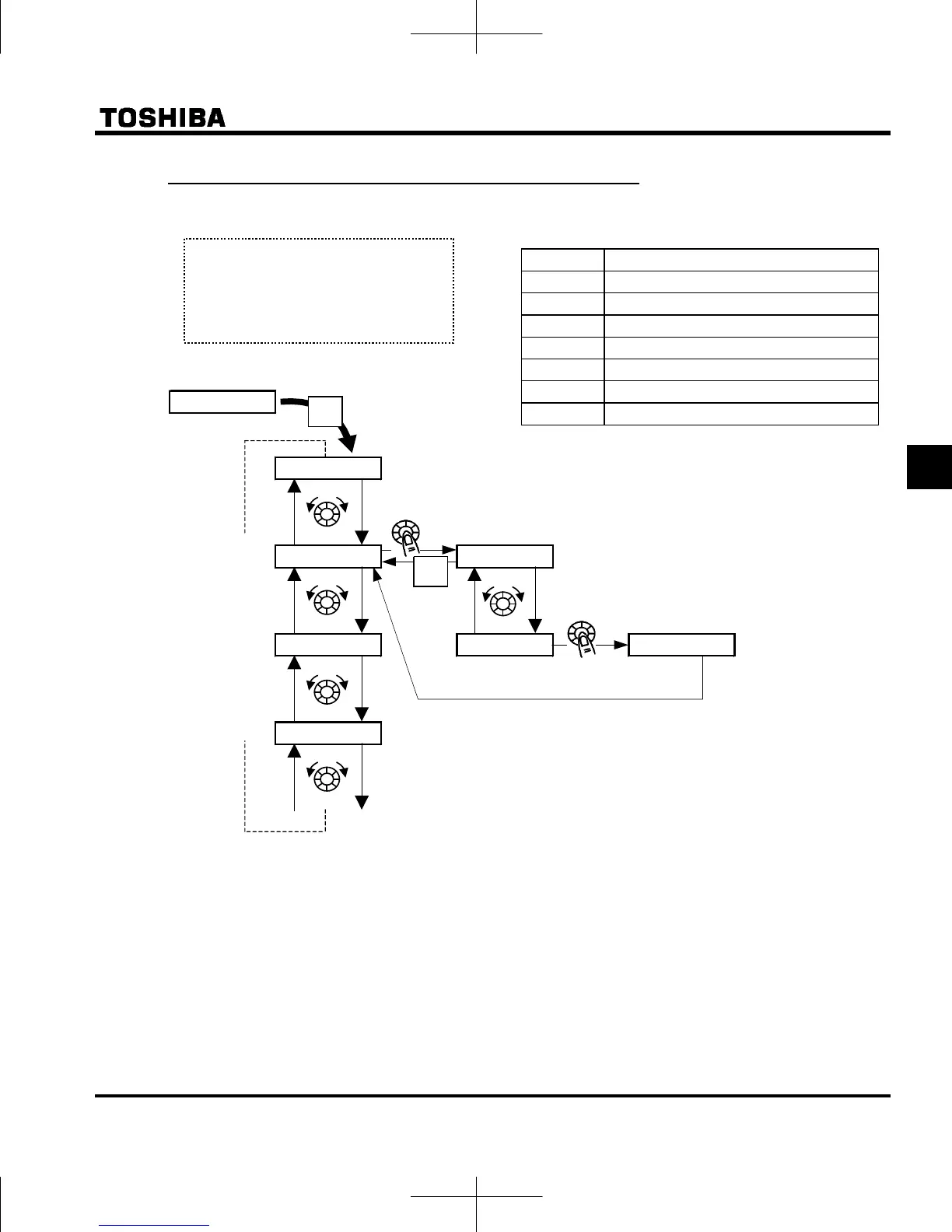

4.2.1 Settings in the Easy setting mode
The inverter enters this mode by pressing the MODE key when the Easy setting mode is selected
 Setting parameters in the Easy setting mode
(1) Selects parameter to be changed. (Turn the setting dial.)
(2) Reads the programmed parameter setting. (Press the center of the setting dial.)
(3) Change the parameter value. (Turn the setting dial.)
(4) Press this key to save the change. (Press the center of the setting dial.)
 To switch to the Standard setting mode, press the EASY key in the Standard monitor mode. "" is displayed,
and the mode is switched.


 
  ⇔

y
Standard monitor mode
(1)
(3)
(2)
(4)
* Parameter title and the setting
value are displayed alternately
Registered parameters
(Max. 24 parameters)
*
MODE
MODE
Basic parameter setting
Easy setting mode (Default registered parameters)
Title Function
 Command mode selection

Frequency setting mode selection

Acceleration time 1

Deceleration time 1

Motor overload protection level 1

Connection meter adjustment

EASY key mode selection
When you are unsure of something
during operation:
You can return to the Standard monitor
mode by pressing the MODE key
several times.

Toshiba TOSVERT VF-nC3 Specifications

General

Model	VF-nC3
Category	Inverter
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, sensorless vector control
Overload Capacity	150% for 60 seconds
Input Frequency	50/60 Hz
Enclosure Rating	IP20
Input Voltage	200-240V AC
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Ambient Temperature	-10°C to +50°C
Communication	Modbus RTU
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Braking Unit	Built-in braking transistor (for models up to 22kW), External braking resistor required
