TP-Link TL-R600VPN User Manual

Configuration Guide 36
Configuring Network VLAN Configuration
7
VLAN Configuration
The router supports 802.1Q VLAN, which can divide a LAN into multiple logical LANs.
Each logical LAN is a VLAN. Hosts in the same VLAN can communicate with each other.
However, hosts in different VLANs cannot communicate directly. Therefore, broadcast
packets can be limited to within the VLAN.
7.1 Creating a VLAN
Choose the menu Network > VLAN > VLAN to load the following page.

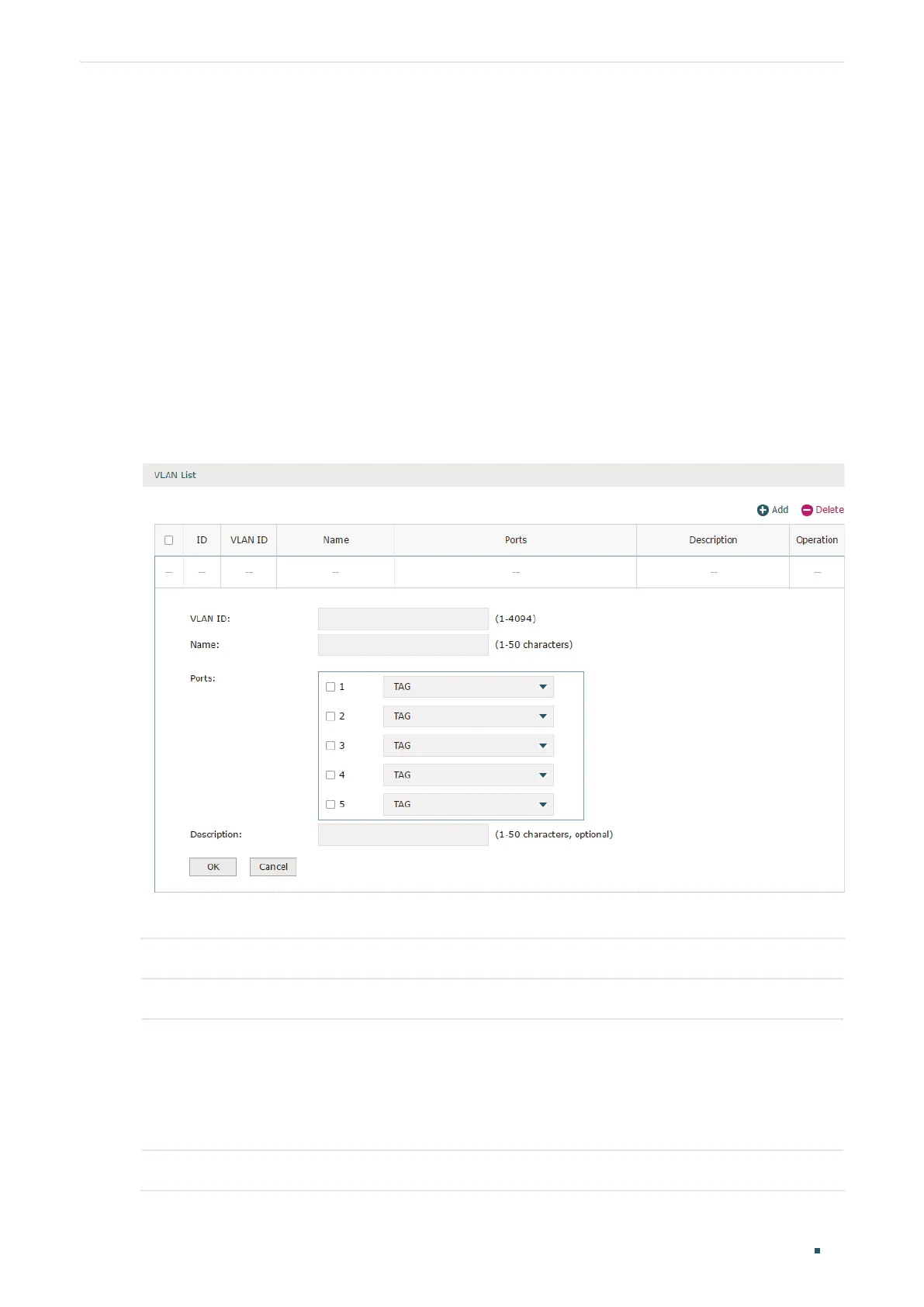

Figure 7-1 Creating a VLAN
Create a VLAN and add the port(s) to the VLAN, then click OK.
VLAN ID Enter a VLAN ID. The value ranges from 1 to 4094.
Name Specify the name of the VLAN for easy identification.
Ports Check the box to select the port and specify the port type in the specified VLAN. The
port can be divided into two types: TAG or UNTAG.
TAG: The egress rule of the packets transmitted by the port is Tagged.
UNTAG: The egress rule of the packets transmitted by the port is Untagged.
Description Optional. Enter a brief description for easy management and searching.

TP-Link TL-R600VPN Specifications

General

VPN Support	Yes
Firewall	SPI Firewall
Network Standards	IEEE 802.3, 802.3u, 802.3ab
Button	Reset button
Flash	8MB
DRAM	64MB
Device Type	VPN Router
WAN Ports	1 x 10/100/1000Mbps
LAN Ports	4
Management	Web-based GUI, SNMP v1/2c
Standards and Protocols	TCP/IP, PPPoE, DHCP, ICMP, NAT, SNTP
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
DHCP	DHCP Server, DHCP Client
Dynamic DNS	DynDns, NO-IP
Security	DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding
