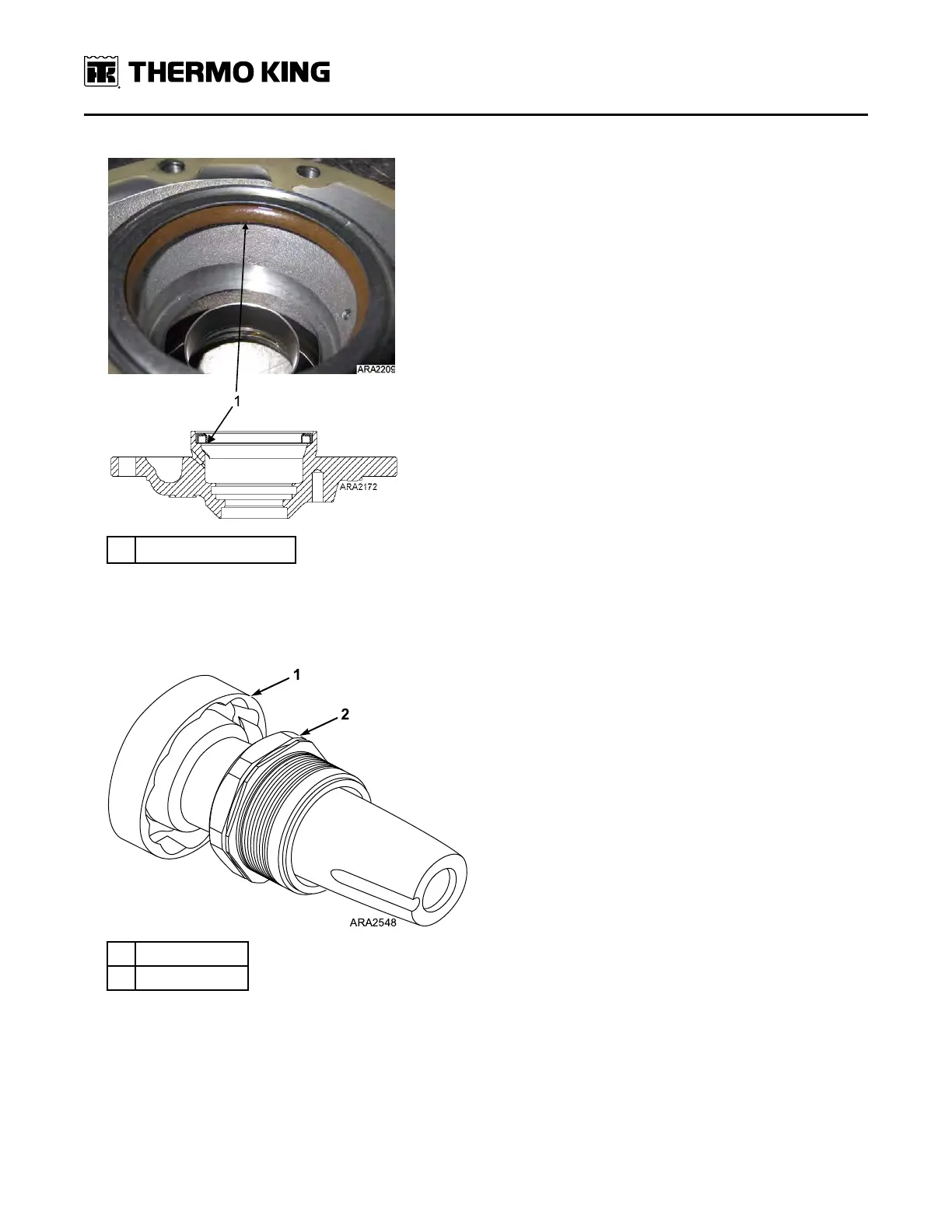

Figure 56. Internal Lip Seal Installation
1. Lip Facing Into Seal Plate
13. Apply clean compressor oil to the O-ring inside the bellows. Slide the bellows on the crankshaft, align the hex drive
on the bellows with the hex drive collar, and push the bellows firmly against the hex drive collar. Leave the
protective cap in place during installation. If the hex drive does not slide on easily, rotate the assembly 30 degrees.
Figure 57. Hex Drive Bellows Installation (Shown Without Protective Cap)
1. Hex Drive Collar
2. Hex Drive
