Power Distribution Module (PDM)
The Power Distribution Module (PDM) is located under the High Power Module (HPM), and close to the HMI. This
Module contains 2 PCB’s. One PCB for 48V outputs and one for the 12V outputs.

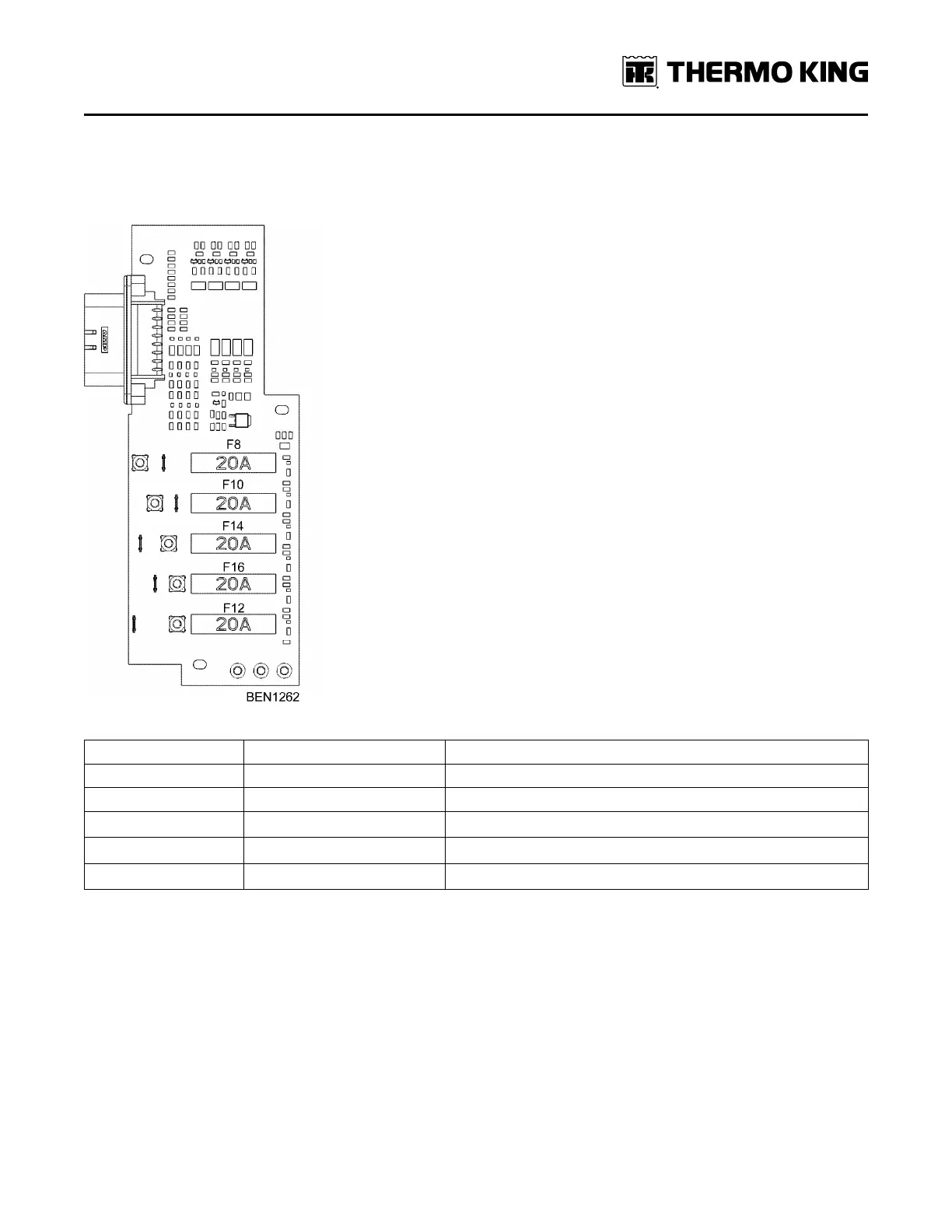

See below the Fuse Size and Function diagram for each PCB.
Table 2. 48 Volt Fuses in PDM
Fuse Size Function
F8 20A Blowers Condenser Roadside
F10 20A Blowers Condenser Curbside
F12 20A DC Charger
F14 20A Blowers Evaporator Roadside
F16 20A Blowers Evaporator Curbside
EElleeccttrriiccaall MMaaiinntteennaannccee
