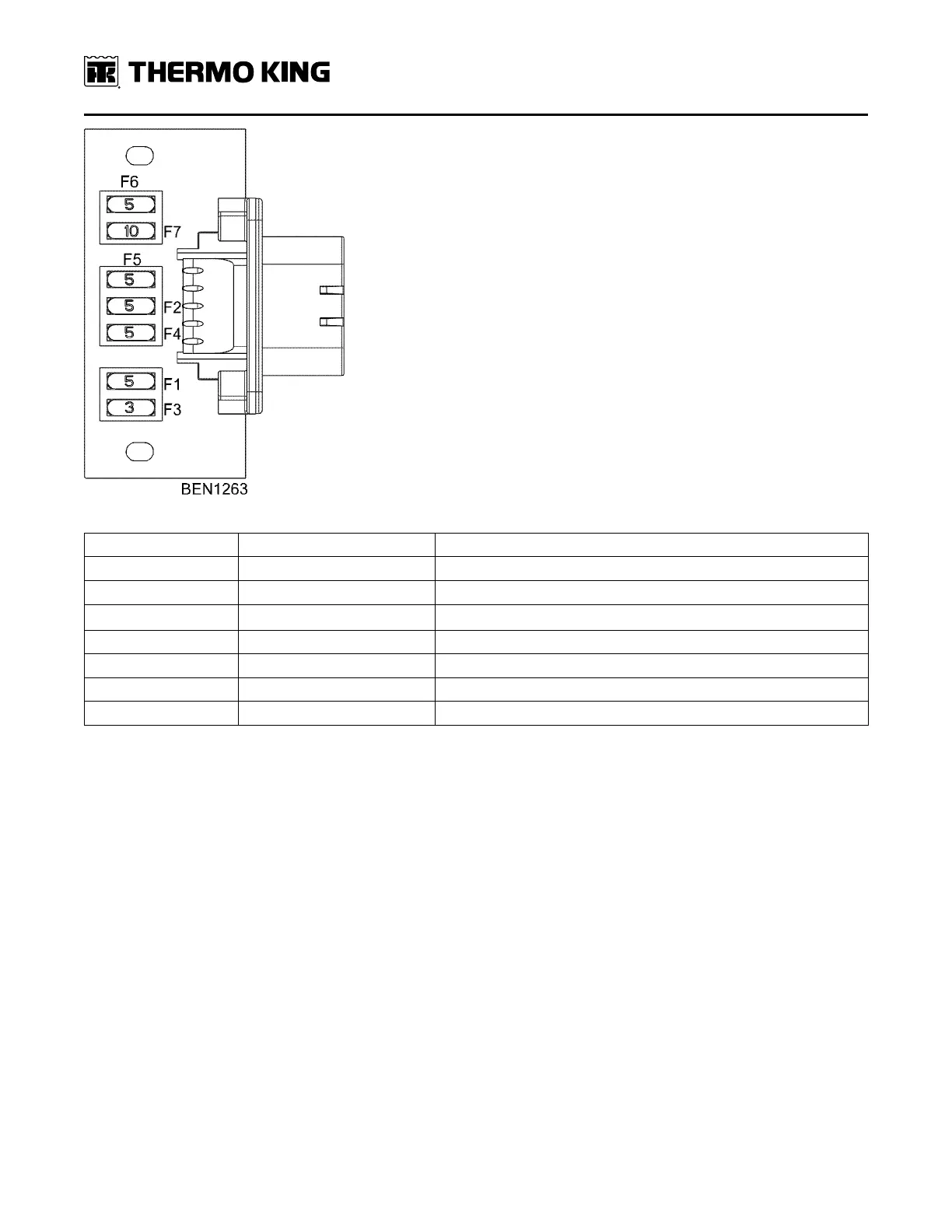

Table 3. 12 Volt Fuses in PDM

Fuse

Size Function

F1 5A BlueBox Power Out

F2 5A LPM Power Out

F3 3A 3rd Party Power Out

F4 5A PSM Power Out

F5 5A HMI Power Out

F6 5A Printer Power Out

F7 10A ECU Power Out

EElleeccttrriiccaall MMaaiinntteennaannccee
