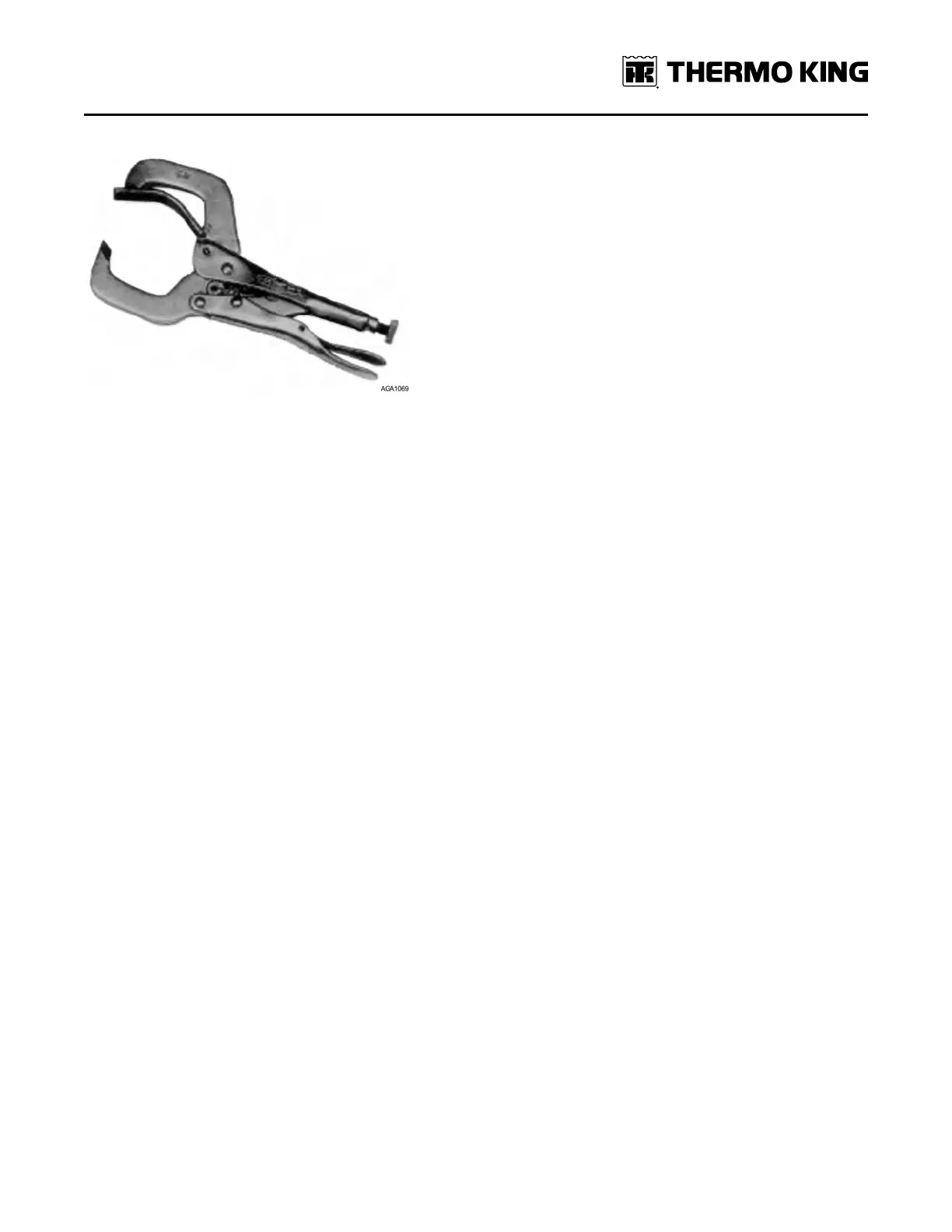

Figure 62. Gasket Tool P/N 204-424
5. Remove the four bolts from the valve.
6. Remove the end cap and spring.
7. Remove the spring clip which secures the stem to the piston. Slide piston off the stem.
8. Remove the seat and stem assembly.
9. Inspect the following parts for wear or damage:
• Bottom cap, sealing, and support area.
• Seat, sealing surface.
• End cap, sealing, and support surface.
The following parts will be discarded:
• Stem assembly.
• All gaskets.
• Piston seal.
10. Remove the screen. If any particles drop from the screen into the discharge line, the discharge line must be
removed at the compressor.
NNoottee:: The valve body cannot be reconditioned. Seat positions change and improper sealing will result.
