1. Remove the compressor from the unit if needed to access the oil sump.
2. Remove the oil sump.
3. Remove the nut that fastens the internal oil filter to the stud on the oil pickup tube bracket.

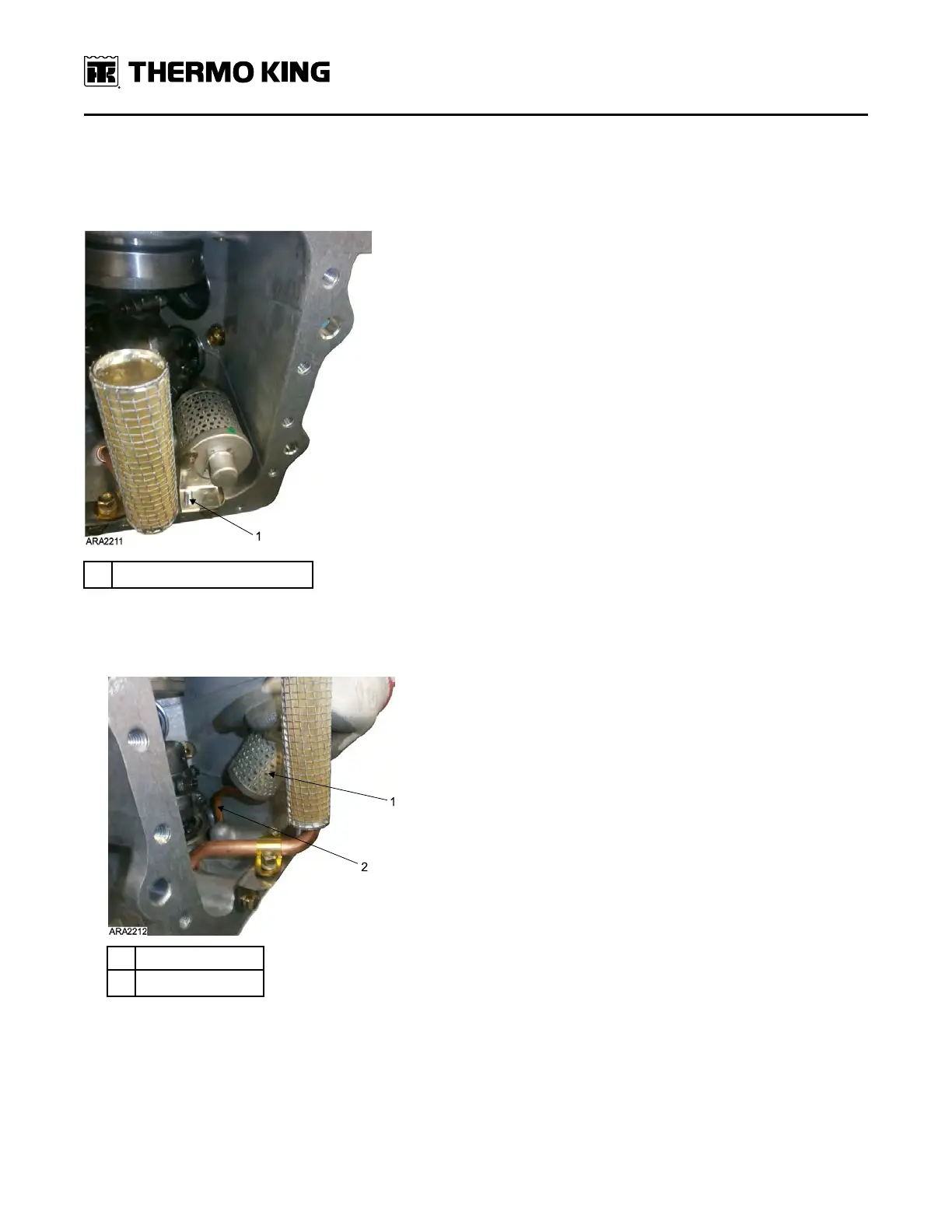

Figure 77. Remove Nut from Stud
1. Stud On Oil Pickup Tube Bracket
4. Remove the internal oil filter from the oil discharge tube.
Figure 78. Remove Internal Oil Filter from Oil Discharge Tube
1. Internal Oil Filter
2. Oil Discharge Tube
5. Place the new internal oil filter on the oil discharge tube and the stud on the oil pickup tube bracket. Be careful to
avoid damaging the O-ring in the oil filter.
6. Install and tighten the nut that fastens the internal oil filter to the stud on the oil pickup tube bracket.
7. Install the oil sump.
8. Install the compressor in the unit if it was removed.
