TK 61753-2-MM-EN

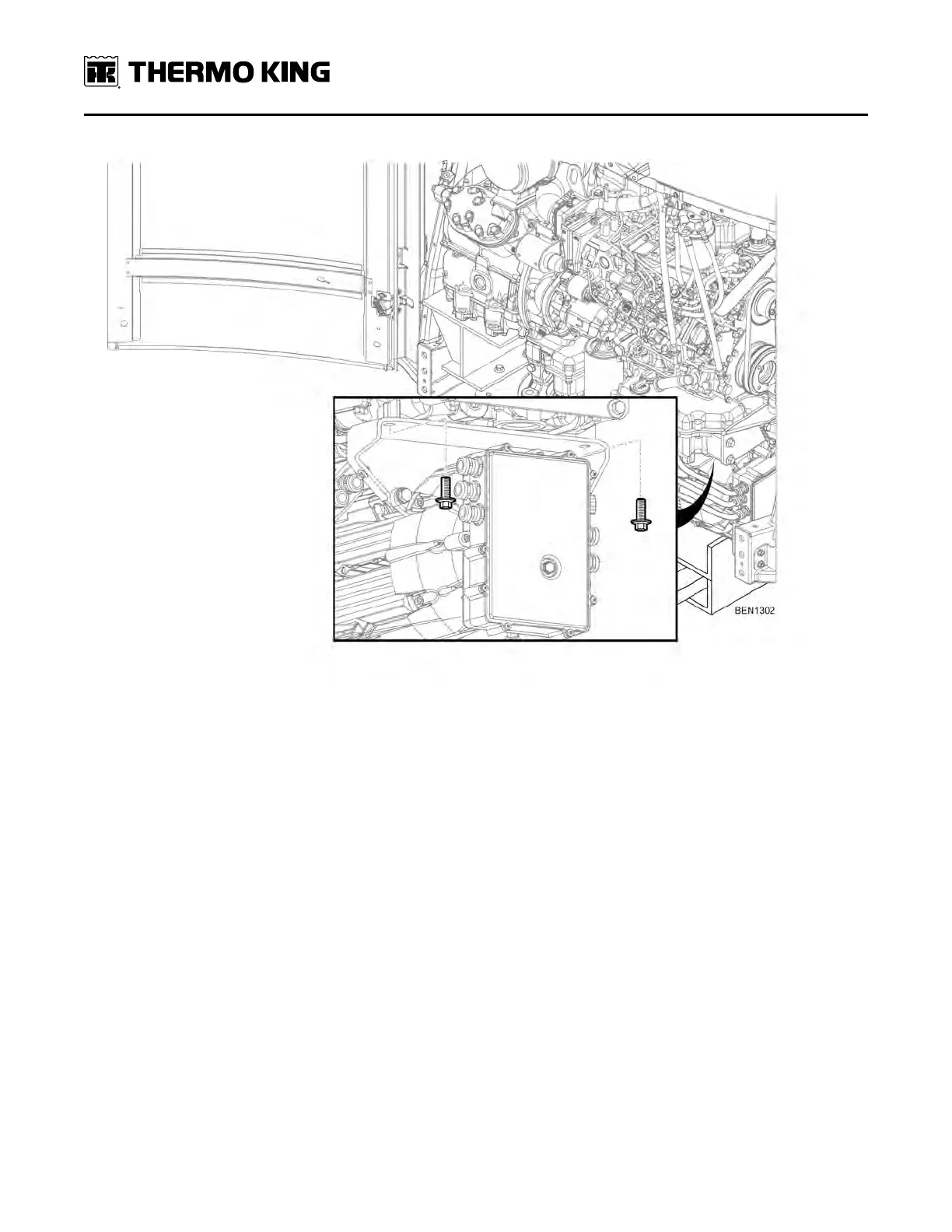

13. Remove the 2 non-drive mounting bolts shown below.

EElleeccttrriiccaall MMaaiinntteennaannccee
