transnorm TS 1208 - Parts of the machine

Description
Parts of the machine
33
Parts of the machine

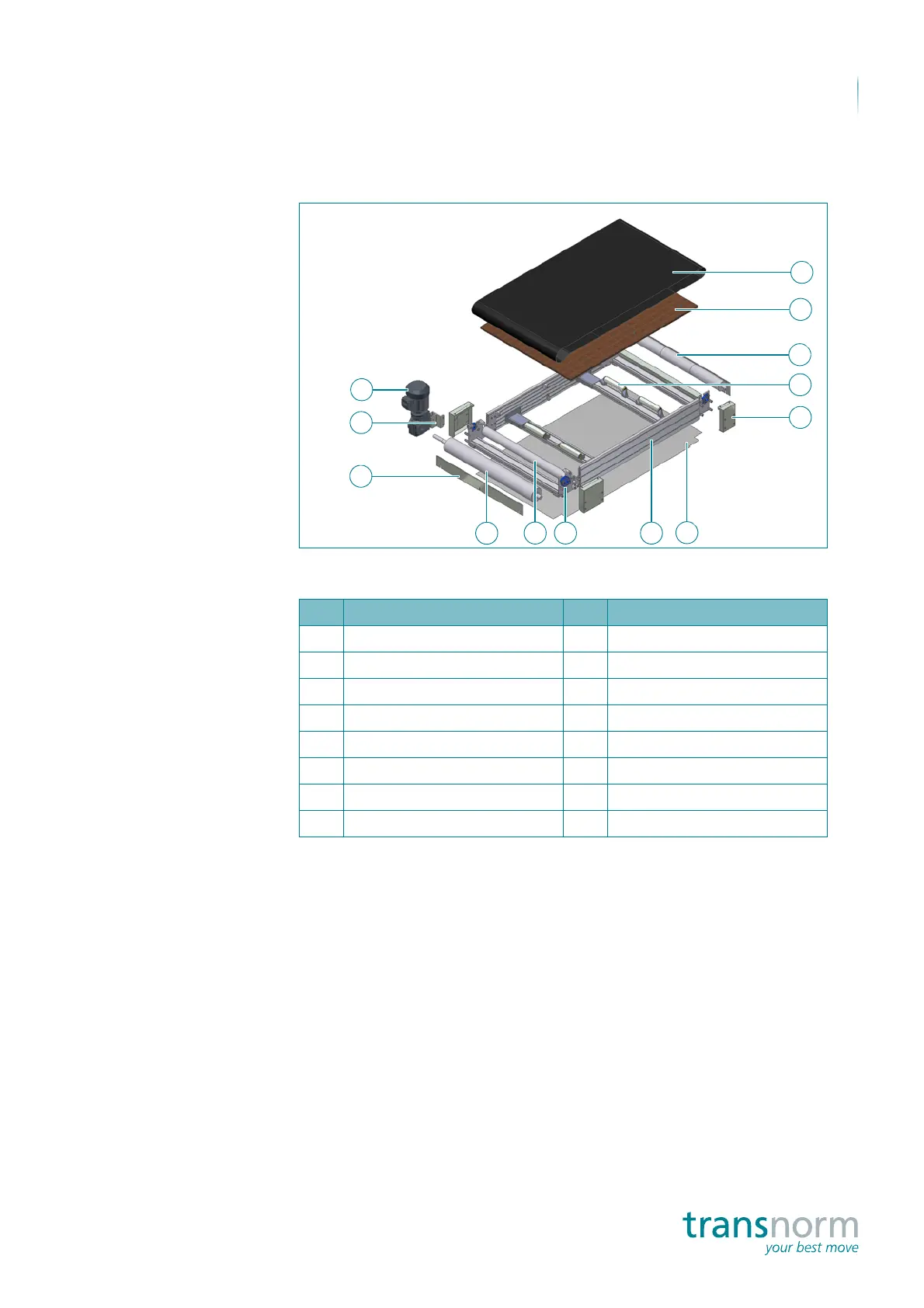

Machine parts of TS 1208 (terminal drive design version), example illustration
Explanation of the illustration
No. Name No. Name
1 Bearing cover 9 Bearing plate, deflection
2 Bed 10 Base frame
3 Deflection drum 11 Gear motor
4 Snub roller 12 Bottom conveyor track cover
5 Drive drum 13 Finger guard
6 Flange bearing 14 Support roller
7 Conveyor belt 15 Torque arm
8 Bearing plate, drive
7
2
3
14
1
12
10
64
5
13
15
11
