Description
Conveyor configurations
34
Operating instructions: Belt conveyor TS 1208
Version 1.6ENG, 10/04/2018
Conveyor configurations
The following configurations of the TS 1208 are possible. They are defined
as shown below.

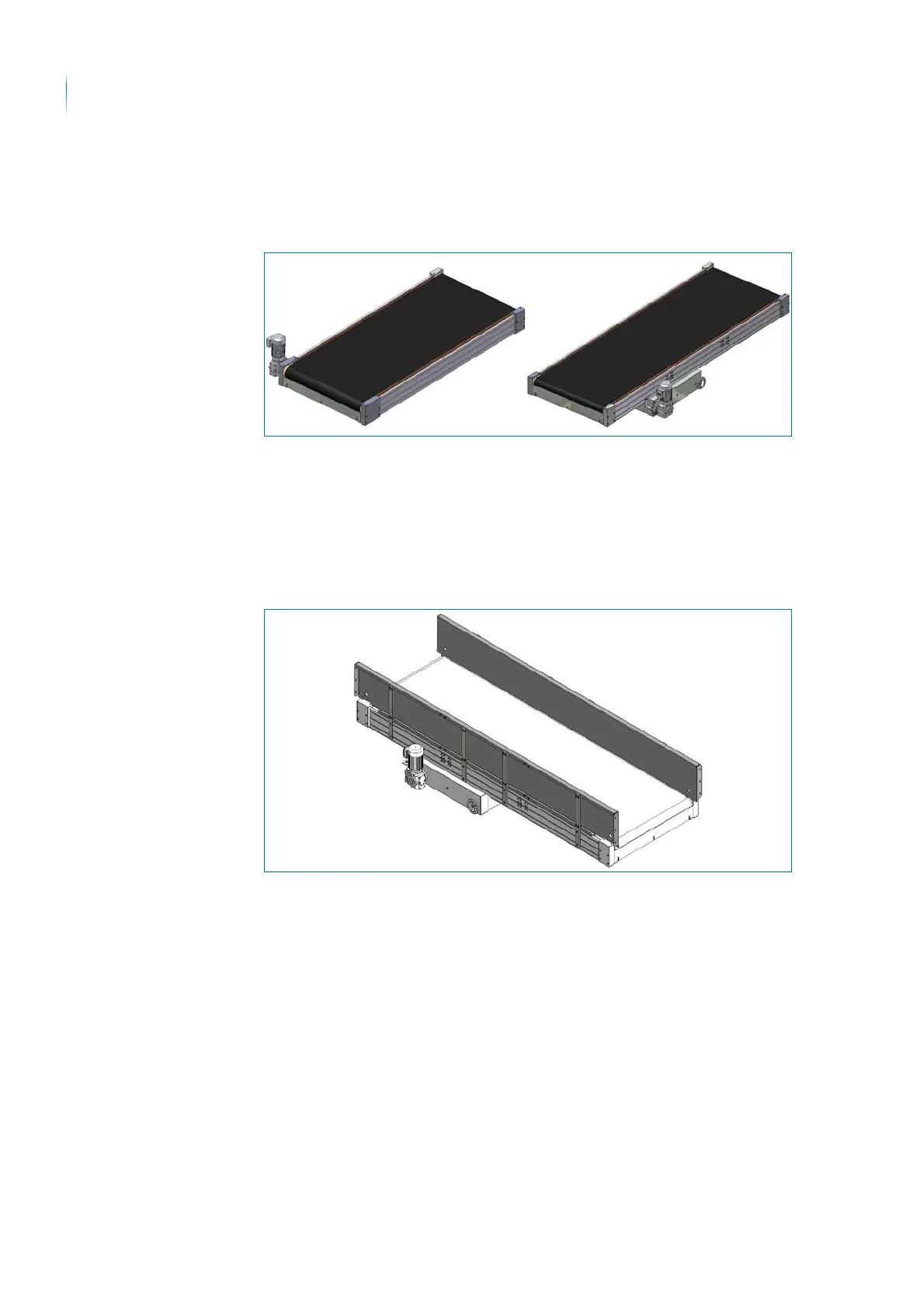

Terminal drive station (left) and central drive station (right)
Optional machine equipment
A baggage guide is optionally available.
Side guides: Baggage guide
