Repair
Replacing the belt
66
Operating instructions: Belt conveyor TS 1208
Version 1.6ENG, 10/04/2018
Conveyor with central drive
Precondition:
The machine has been taken out of operation.
The machine has been secured against being switched on again.
The gear motor has been removed.
The side guide has been removed.
Loosening the belt
Carry out the following work steps:
Turn the tension wheel (1) as far as it will go in an anti-clockwise direc-
tion.
The belt has been loosened.

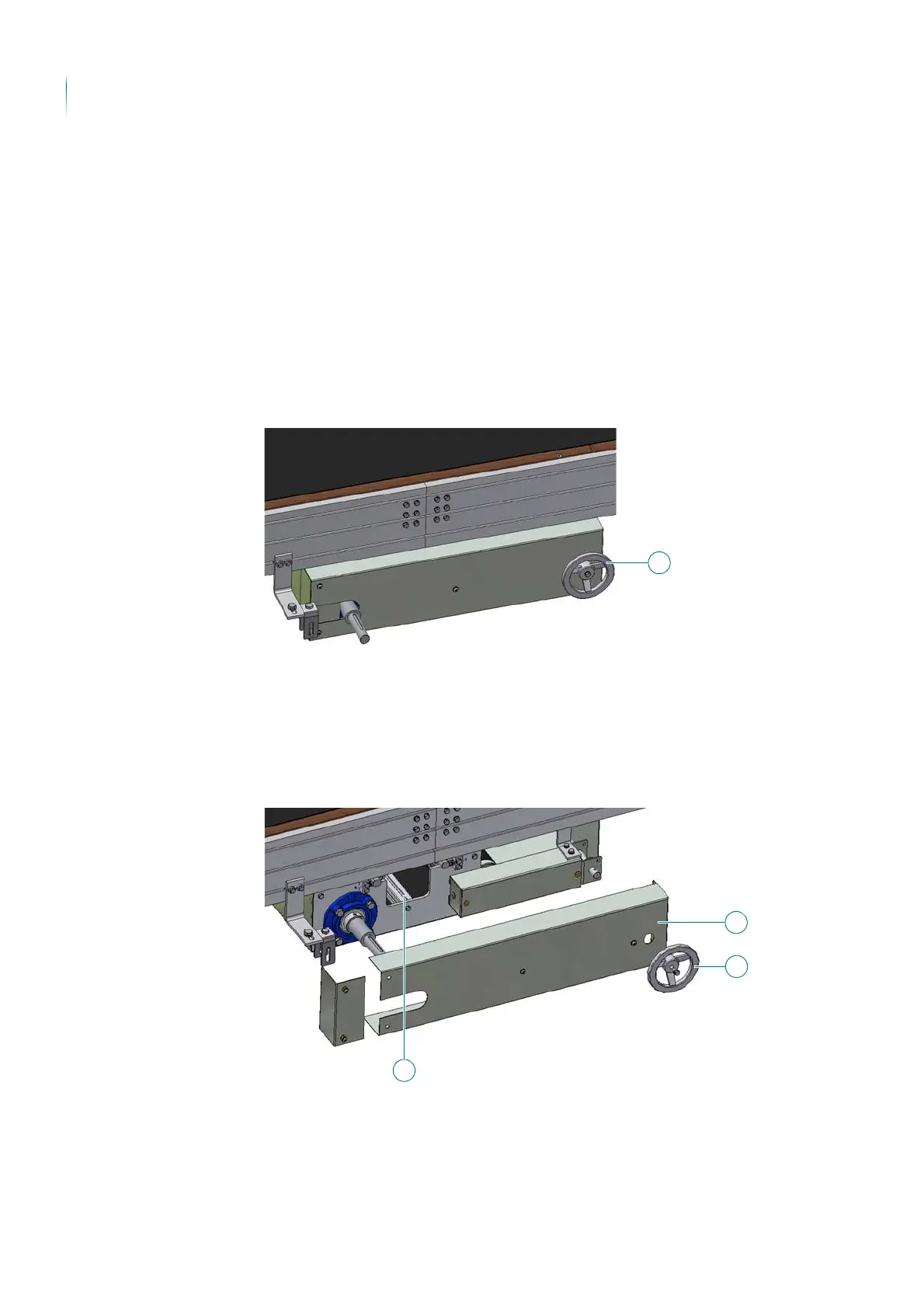

Removing the covers
Carry out the following work steps:
1. Remove the hand wheels (1).
2. Remove the covers of the drive station (2).
3. Remove the cross beam (3).
