Repair
Replacing the belt
65

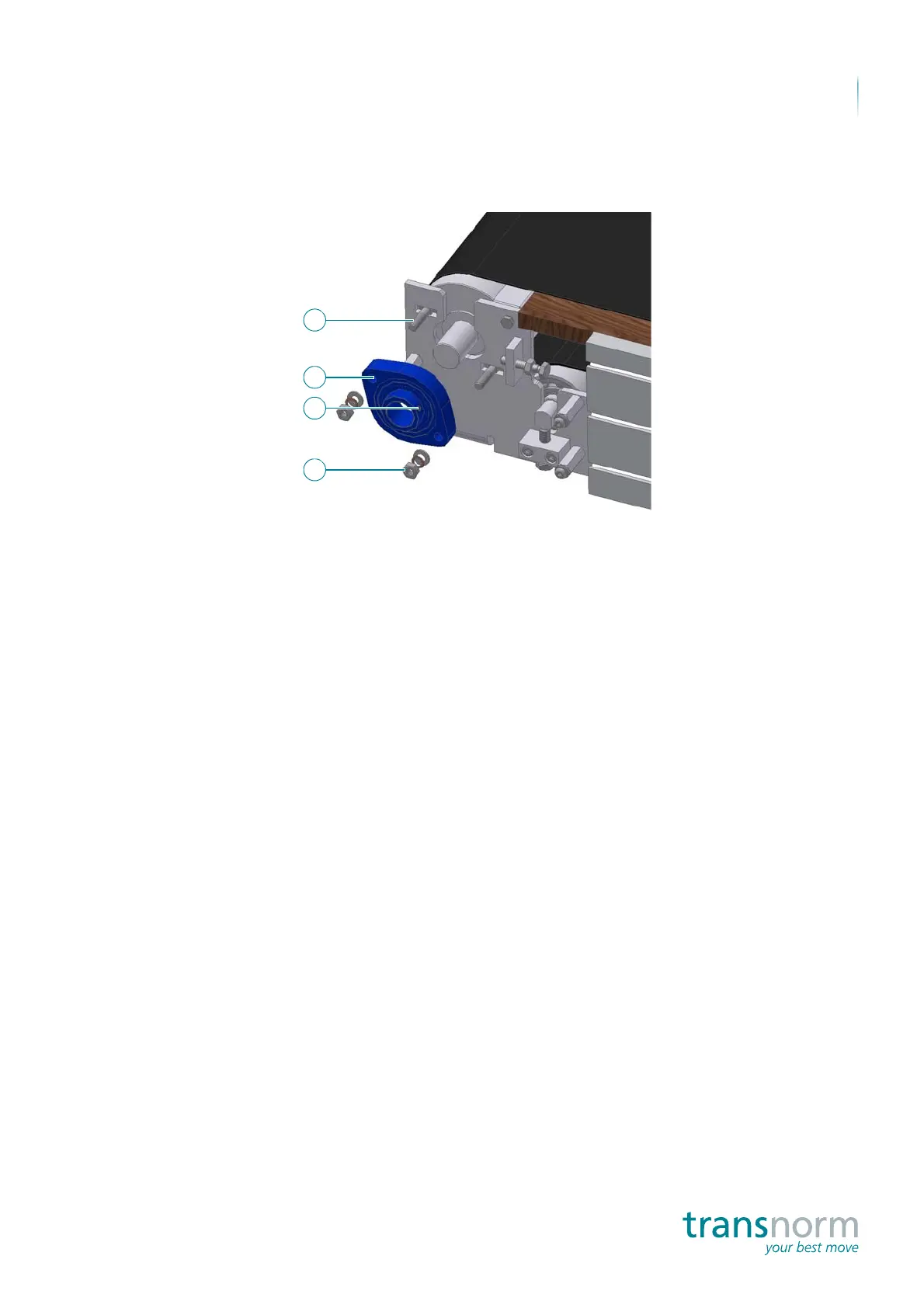

3. Tighten the grub screws of the bearings (3) and secure them with thread
lock fluid.
4. Fit the joining elements (4) but do not tighten them yet.
 Drive- and deflection drum have been fastened.
 Installing the bed
Carry out the following work steps:
 Installation is carried out in reverse order.
 The bed has been installed.
 Installing the gear
motor
Carry out the following work steps:
 Carry out the work steps described in "Replacing the gear motor".
 The gear motor has been installed.
 Tension / adjust the
belt
Carry out the following work steps:
 Carry out the work steps described in "Tightening / adjusting the belt"
 The belt has been tensioned and adjusted.
 Fitting covers
Carry out the following work steps:
 The fitting is carried out in reverse order.
 The covers have been fitted.

The belt has been replaced.
2
4
3
1
