Repair
Replacing a side guide
59
Replacing a side guide
The side guide must be removed for certain maintenance and repair work,
but not replaced. When replacing, put out the new side guide ready for use
according to the spare parts list.
Precondition:
The machine has been taken out of operation.
The machine has been secured against being switched on again.
Removing the side
guide
Increased risk of accident due to:
Falling or slipping loads.
Heed the permissible lifting load of the hoists.
Secure the load according to regulations.
Carry out the following work steps:

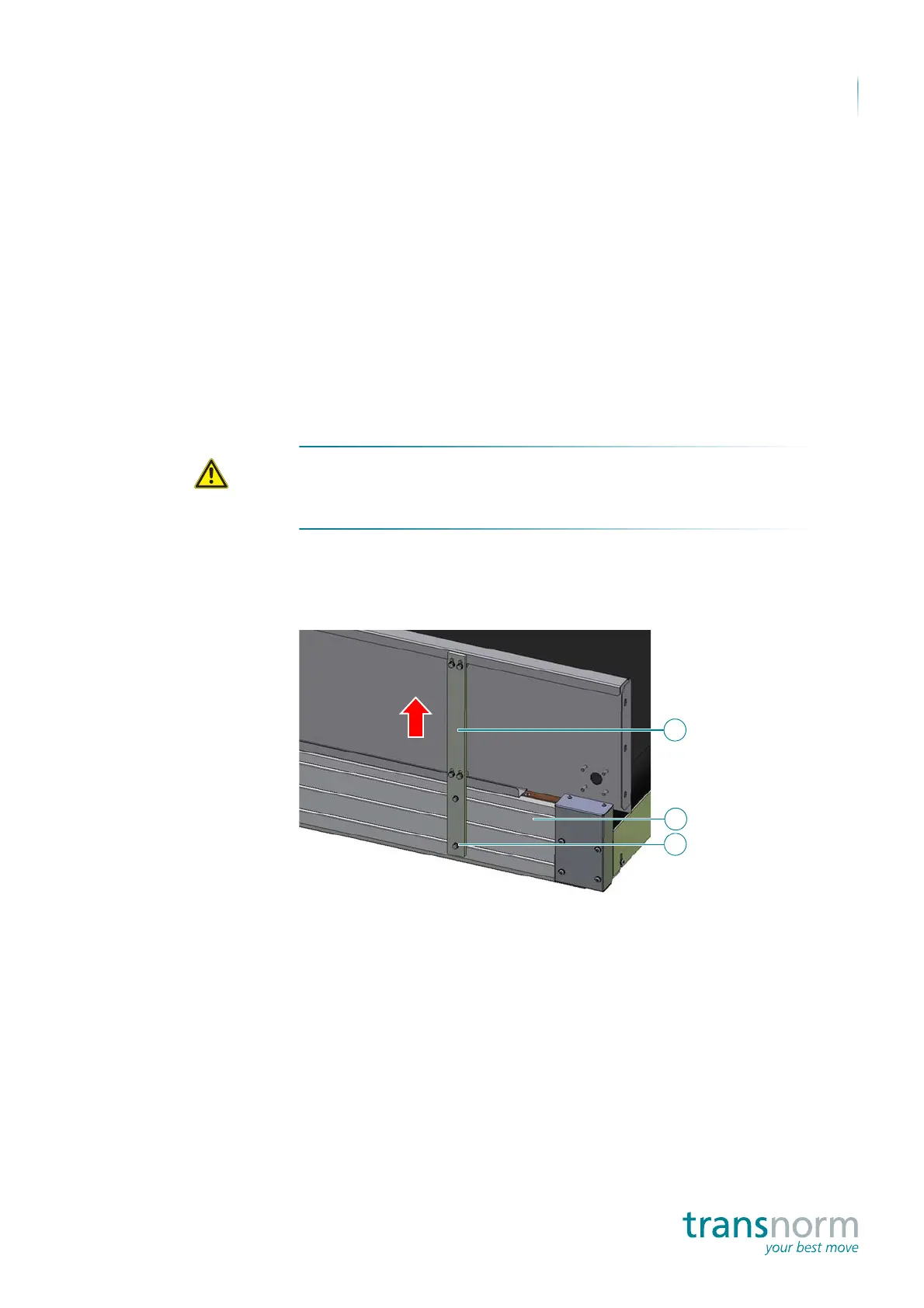

1. Mark the position of the supports (1) on the frame (2).
2. Remove the joining elements (3).
3. Remove the side guide.
4. Place the side guide on an appropriate surface.
The side guide has been removed.
