Repair
Removing/fitting the bottom conveyor track cover
58
Operating instructions: Belt conveyor TS 1208
Version 1.6ENG, 10/04/2018

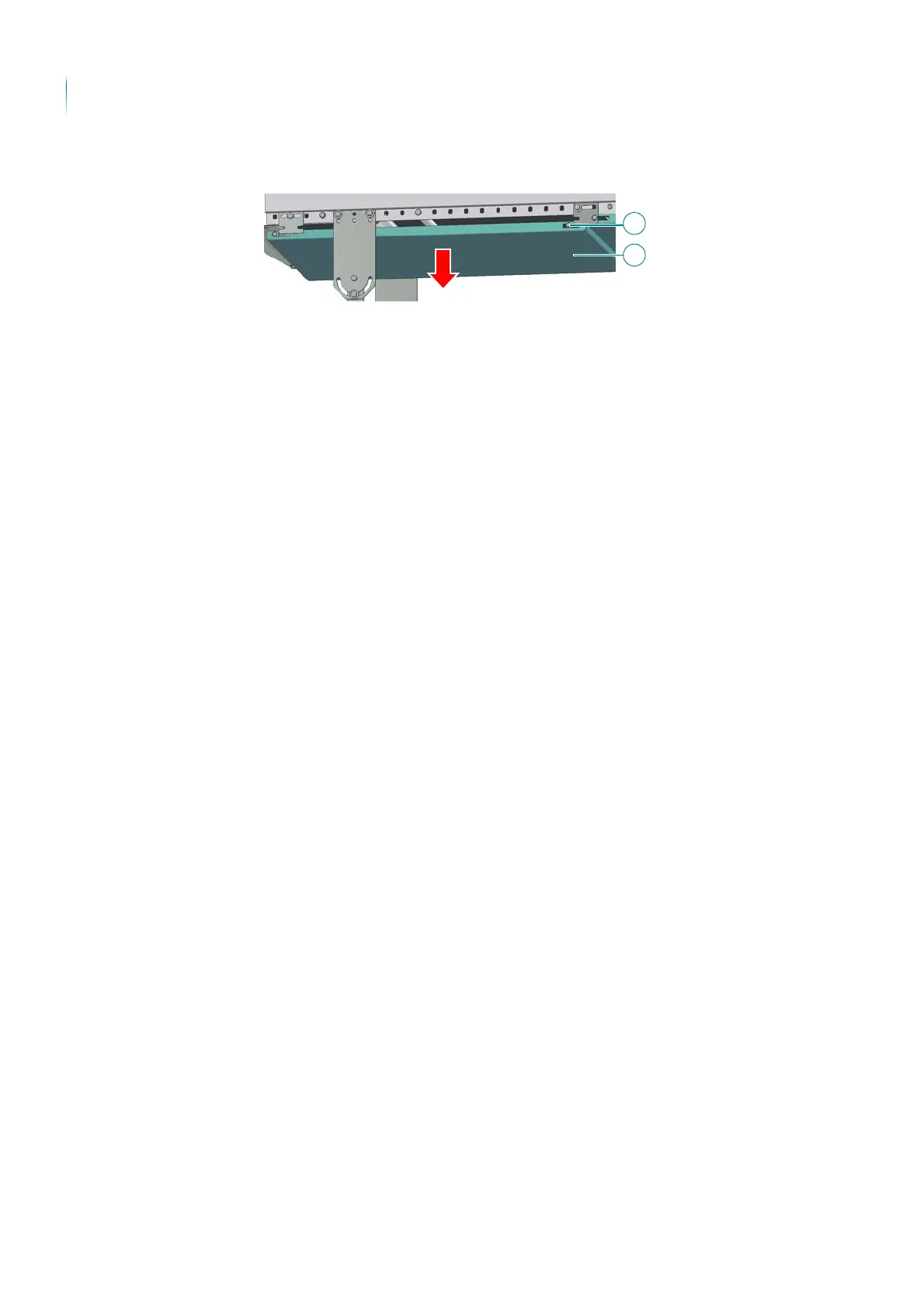

2. Remove the cover (2).
 The bottom conveyor track cover has been removed.
 Fitting the bottom
conveyor track cover
Carry out the following work steps:
 Fitting is carried out in reverse order.
 The bottom conveyor track cover has been fitted.

The bottom conveyor track cover has been removed/fitted.
1
2
