Transport and installation
In-company transportation
39

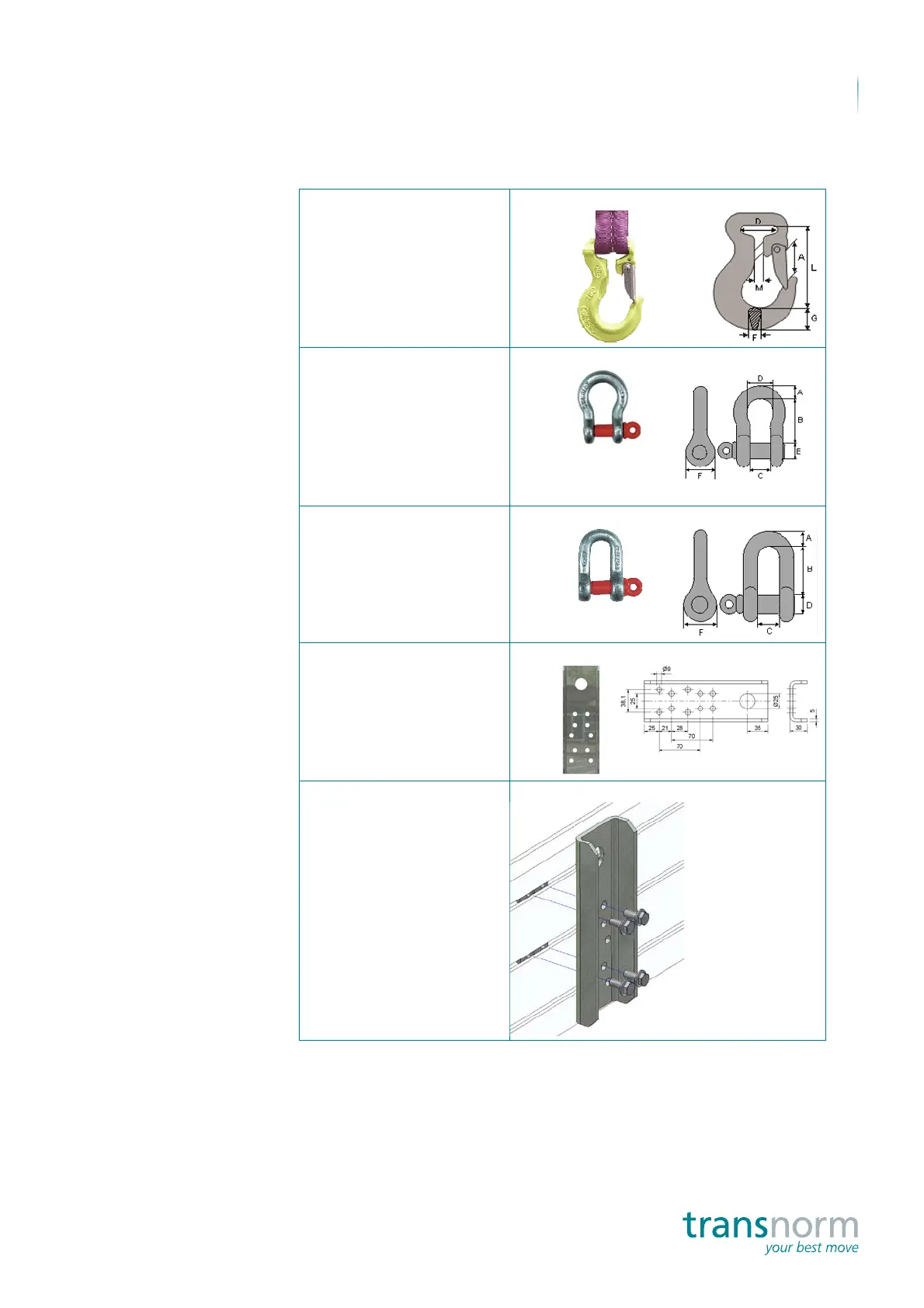

Round sling hook,
carrying capacity 1000 kg
L = 84 mm
A = 24 mm
D = 35 mm
F = 17 mm
G = 20 mm
M = 8 mm
Anchor shackle,
carrying capacity 3250 kg
A = 16 mm
B = 60 mm
C = 27 mm
D = 43 mm
E = 20 mm
F = 42 mm
Chain shackle,
carrying capacity 3250 kg
A = 16 mm
B = 51 mm
C = 27 mm
D = 20 mm
F = 42 mm
Transport plate E2009698
Exclusively intended for in-
company transport of the TS
conveyors.
Installation of support E2009698
on conveyor bed with mounting
kit consisting of:
4 pcs. N1001434
Slot nut M8
4 pcs. K1009663
Screw M8x18
Exclusively intended for in-
company transport of the TS
conveyors.
Required auxiliary equipment
