Repair
Replacing the belt
68
Operating instructions: Belt conveyor TS 1208
Version 1.6ENG, 10/04/2018
Remove the deflec-
tion drums

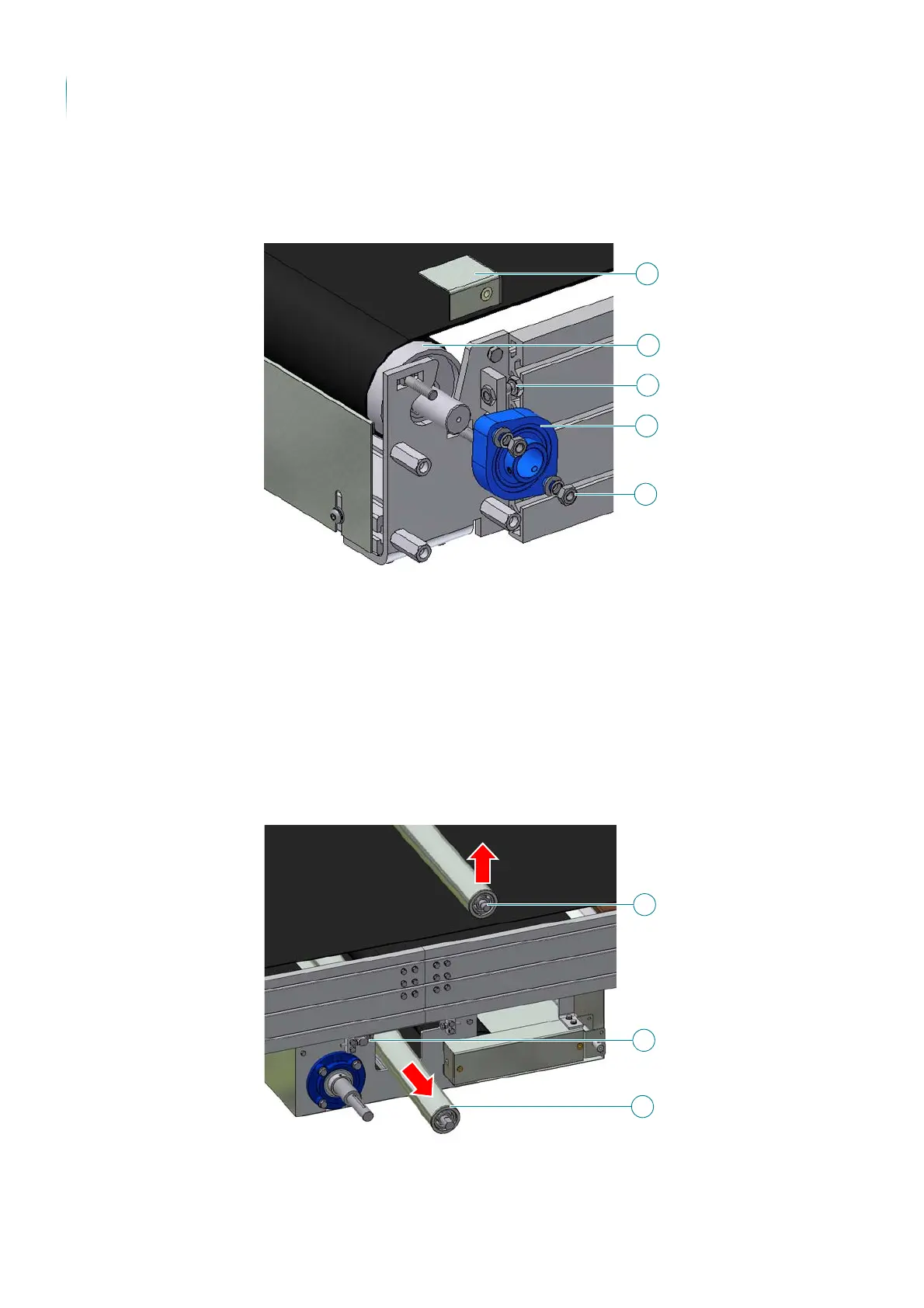

Carry out the following work steps:
1. Loosen the joining elements of the flange bearings (1) on the drive side
and on the deflection side.
2. Turn back the tensioning bolts of the flange bearings (2).
3. Pull the flange bearing (3) off the deflection drums.
4. Remove the finger guard (4).
5. Angle drums (5) on one side and pull them out.
The deflection drums have been removed.
Removing the deflec-
tion drums
Carry out the following work steps:
1. Pull both snub rollers (1), (2) out through the opening.
