Repair
Replacing the belt
70
Operating instructions: Belt conveyor TS 1208
Version 1.6ENG, 10/04/2018

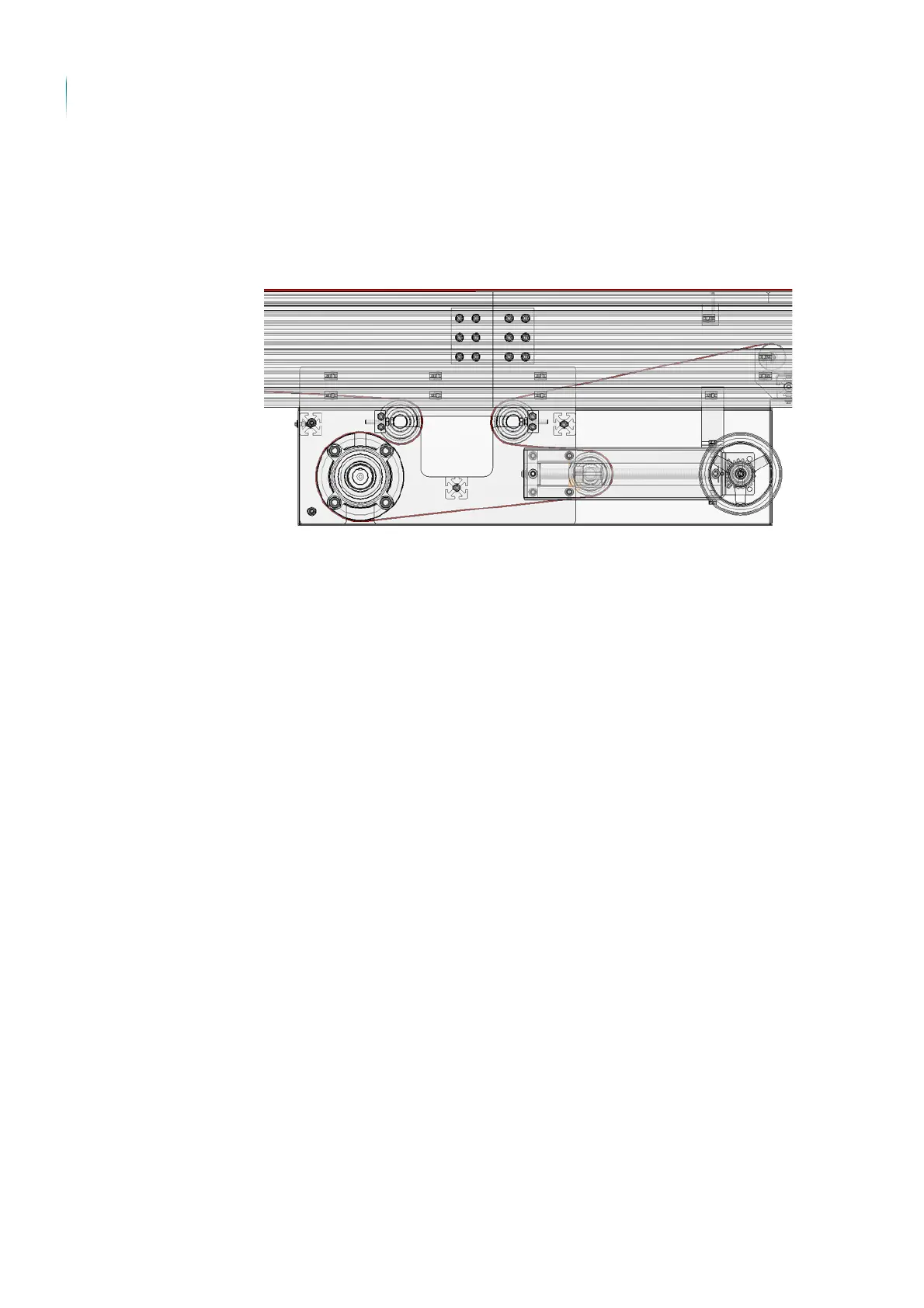

 Installing the deflec-
tion drums
Carry out the following work steps:
1. Insert both snub rollers through the opening.
2. Insert the tensioning roller from the top.
3. Check that the belt is correctly aligned.
 The deflection drums have been mounted.
 Installing the deflec-
tion drums
Carry out the following work steps:
 Installation is carried out in reverse order.
 The deflection drums have been installed.
 Installing the bed
Carry out the following work steps:
 Installation is carried out in reverse order.
 The bed has been installed.
 Installing the gear
motor
Carry out the following work steps:
 Carry out the work steps described in "Replacing the gear motor".
 The gear motor has been installed.
 Tightening /
adjusting the belt
Carry out the following work steps:
 Carry out the work steps described in "Tightening / adjusting the belt"
 The belt has been tensioned / adjusted.
