Repair
Replacing the gear motor
82
Operating instructions: Belt conveyor TS 1208
Version 1.6ENG, 10/04/2018

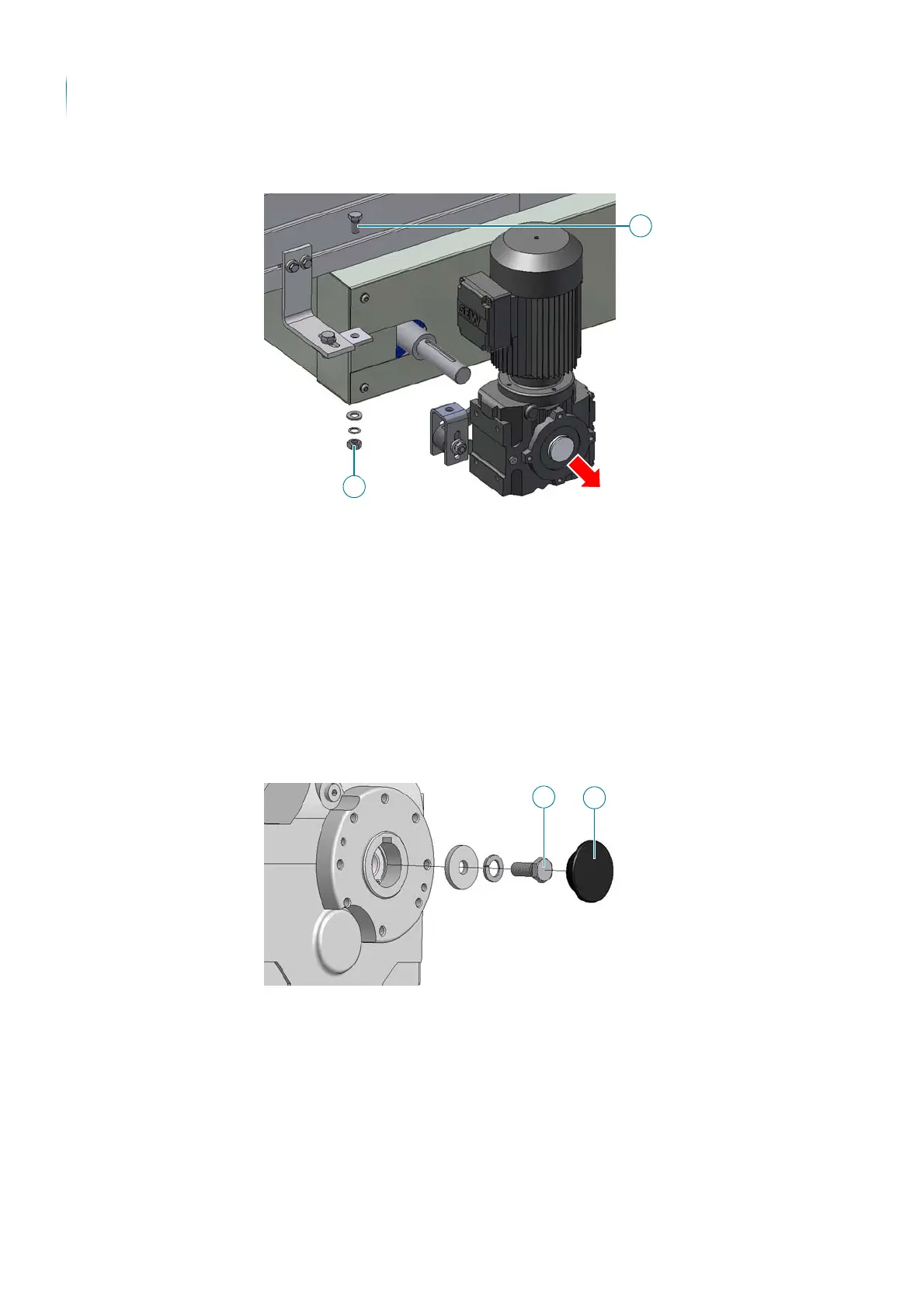

4. Remove the joining elements (3), (4).
5. Pull off the gear motor with torque arm.
6. Place the gear motor onto a suitable underlay.
The gear motor has been removed.
Installing the gear
motor
Carry out the following work steps:
1. Apply assembly paste to the drum journal.
2. Slide on the gear motor with torque arm.
3. Mount the joining elements (4).
4. Mount the joining elements (2).
5. Fit the cover (1).
6. Connect the electrical cables to the motor.
The gear motor has been installed.
The gear motor has been replaced.
