transnorm TS 1208 - Page 84

Repair
Replacing the flange bearings
84
Operating instructions: Belt conveyor TS 1208
Version 1.6ENG, 10/04/2018
3. Remove the joining elements (2).
4. Turn back the tensioning bolt (3).
5. Pull off the flange bearing (4).
 The flange bearing has been removed.
 Installing the flange
bearings
Carry out the following work steps:

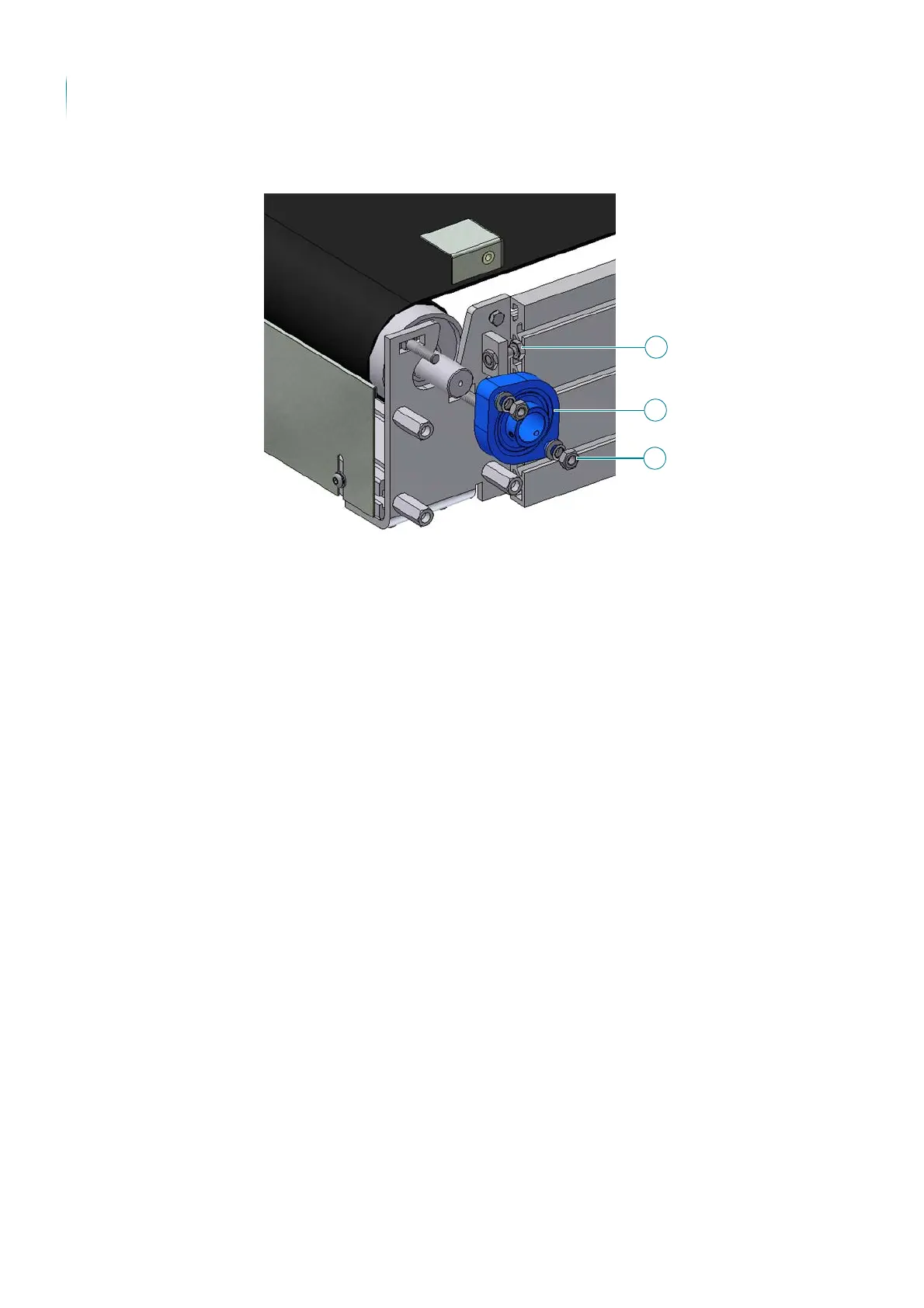

1. Slide the flange bearing (4) onto the drum journal.
2. Align the flange bearing and drum.
3. Secure the flange bearing with joining elements (2).
4. Tighten the grub screws of the flange bearing.
5. Fit the cover (1).
 The flange bearing has been fitted.
 Install the gear motor
if necessary
Carry out the following work steps:
 Carry out the work steps described in "Installing the gear motor".
 The gear motor has been installed.
2
4
3
