Trimble R7 User Manual

Trimble R7/R8 GPS Receiver User Guide 25
Setting up the Receiver 3
Trimble R7 Operation
d. Lock the clip lock.
If the clip lock is too tight to be locked, turn it one or two
turns counterclockwise and try again. If it is too loose, turn
it one or two turns clockwise and try to lock it again.
2. Mount the receiver on the bracket:
a. Pull the bracket side locks in towards the pole.
b. Set the receiver catch lock in the bracket.
c. Holding the receiver in the bracket, pull the side locks back
to their original positions, as shown in Figure 3.9.

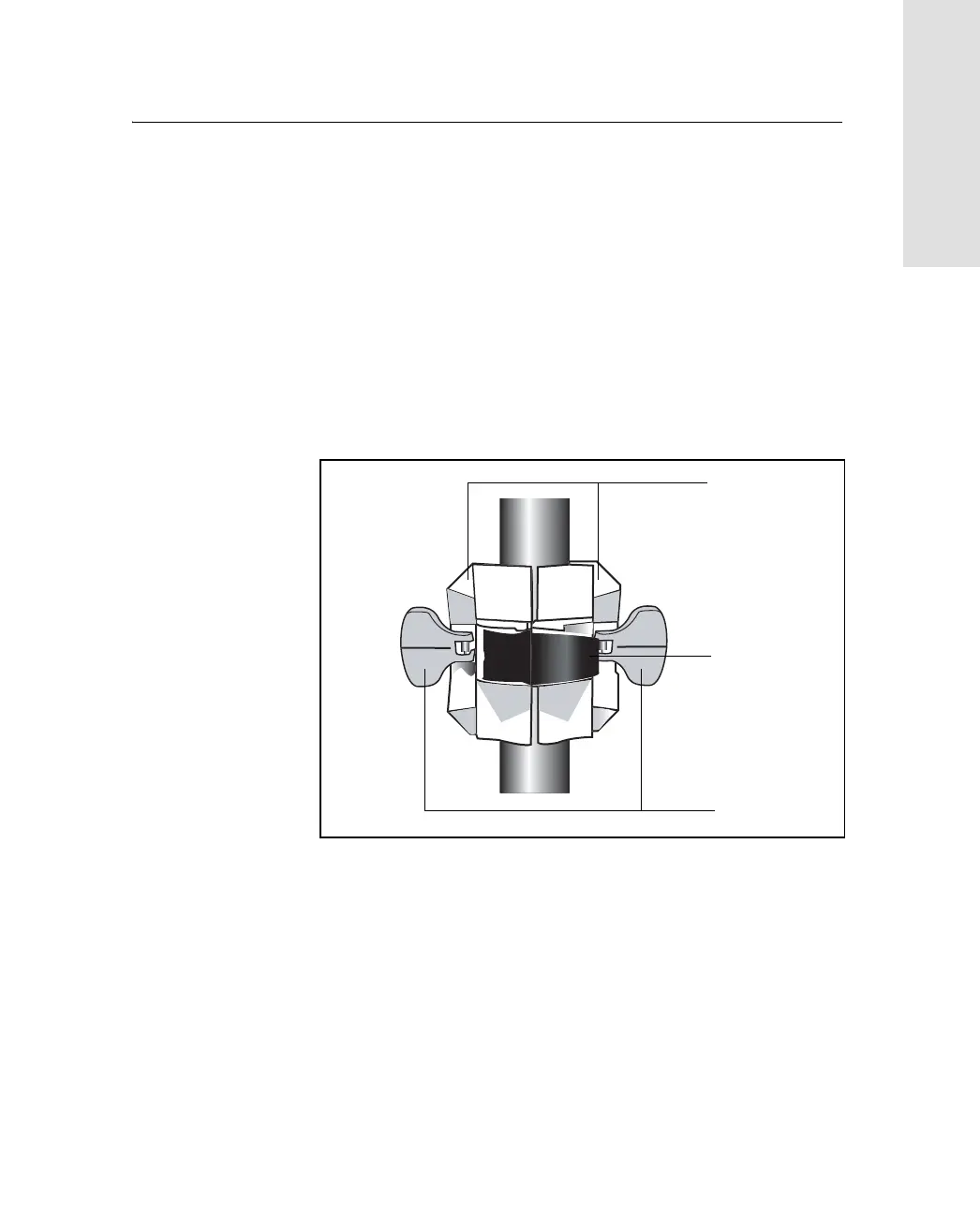

Figure 3.9 Trimble R7 receiver bracket
3. Connect the blue TNC radio communications cable to the blue
TNC port on the receiver. If necessary, adjust the position of the
receiver to remove cable slack.
4. Connect the yellow TNC GPS antenna cable to the yellow TNC
port on the receiver. If necessary, adjust the position of the
receiver to remove cable slack.
Clip lock
Gates
Side locks
