3 Setting up the Receiver
24 Trimble R7/R8 GPS Receiver User Guide
Trimble R7 Operation
Mounting the Trimble R7 receiver
To mount the receiver on the pole:
1. Attach the receiver bracket to the pole:
a. Place the bracket against the pole, approximately 0.5 m
from the ground.
Note – If you are using a 1" diameter pole, flip the black
insert around inside the bracket, as shown in Figure 3.8.

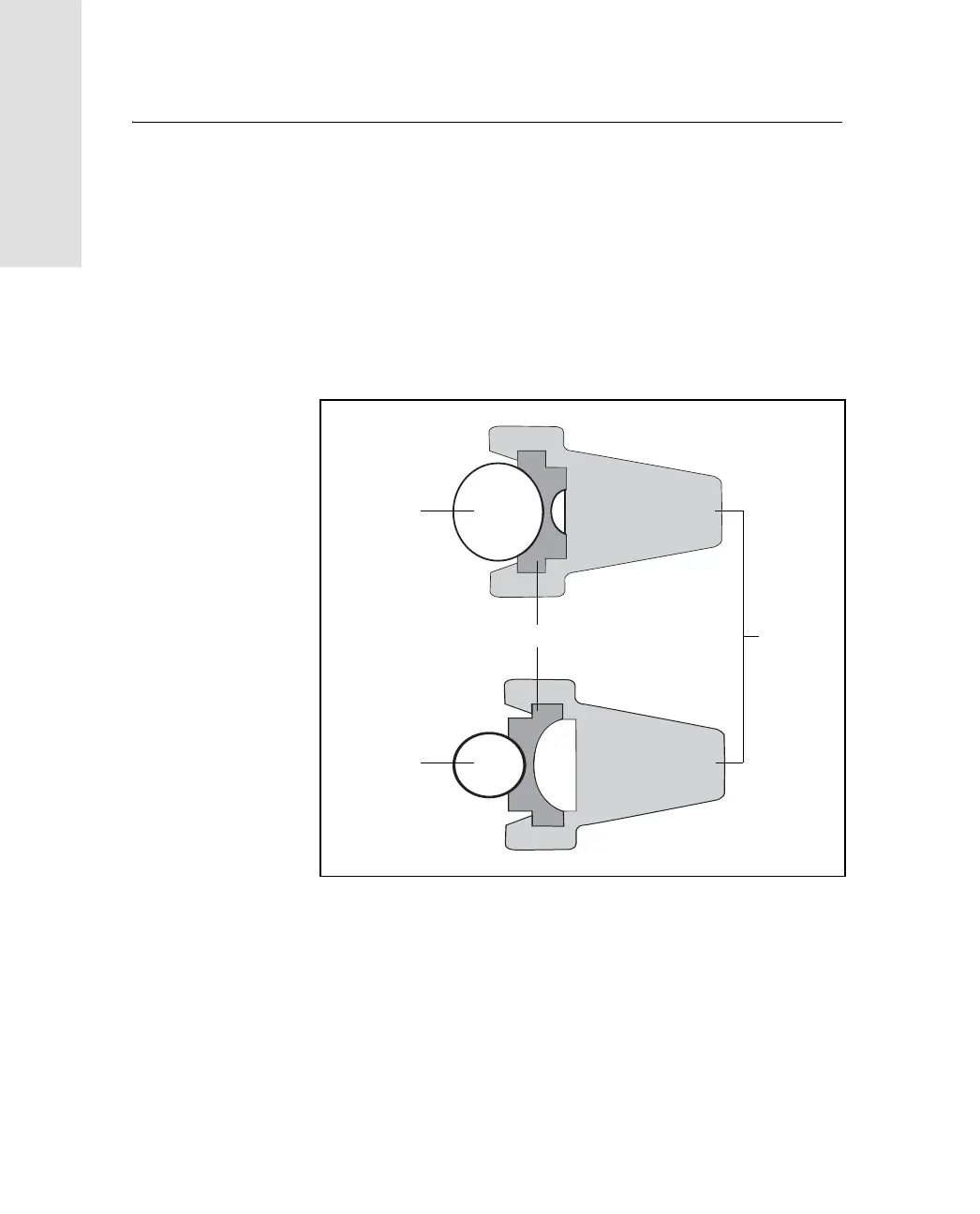

Figure 3.8 Receiver bracket insert
b. Close the gates of the bracket around the pole.
c. Seat the base of the clip lock in the opposite gate.
Bracket insert Bracket
1
1
/
4
" pole
1" pole
